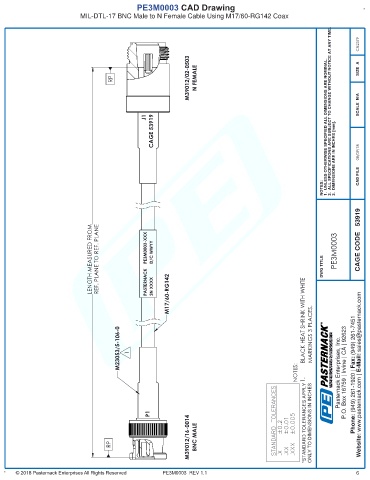

PE3M0003 CAD Drawing
MIL-DTL-17 BNC Male to N Female Cable Using M17/60-RG142 Coax



  SIZE A



SCALE N/A

 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.
 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 

NOTES: CAD FILE

        DWG TITLE  CAGE CODE 53919



R E-Mail: sales@pasternack.com
 
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.

 *STANDARD TOLERANCES APPLY  ONLY TO DIMENSIONS IN INCHES  Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451

  Website: www.pasternack.com |

  

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -


PE3M0003 REV 1.1 6
