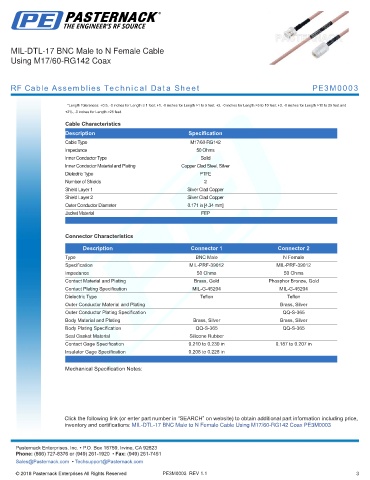

MIL-DTL-17 BNC Male to N Female Cable
Using M17/60-RG142 Coax
RF Cable Assemblies Technical Data Sheet PE3M0003
*Length Tolerances: +0.5, -0 inches for Length ≤ 1 foot; +1, -0 inches for Length >1 to 5 feet; +2, -0 inches for Length >5 to 10 feet; +3, -0 inches for Length >10 to 25 feet and
+2%, -0 inches for Length >25 feet.
Cable Characteristics
Description Specification
Cable Type M17/60-RG142
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Clad Copper
Shield Layer 2 Silver Clad Copper
Outer Conductor Diameter 0.171 in [4.34 mm]
Jacket Material FEP
.
Connector Characteristics
Description Connector 1 Connector 2
Type BNC Male N Female
Specification MIL-PRF-39012 MIL-PRF-39012
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Phosphor Bronze, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Silver
Outer Conductor Plating Specification QQ-S-365
Body Material and Plating Brass, Silver Brass, Silver
Body Plating Specification QQ-S-365 QQ-S-365
Seal Gasket Material Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.187 to 0.207 in
Insulator Gage Specification 0.208 to 0.228 in
.
Mechanical Specification Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MIL-DTL-17 BNC Male to N Female Cable Using M17/60-RG142 Coax PE3M0003
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0003 REV 1.1 3
