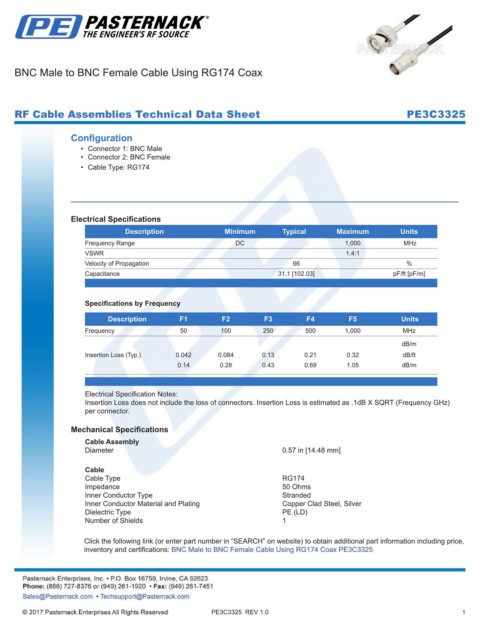

BNC Male to BNC Female Cable Using RG174 Coax
RF Cable Assemblies Technical Data Sheet PE3C3325
Configuration
• Connector 1: BNC Male
• Connector 2: BNC Female
• Cable Type: RG174
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
dB/m
Insertion Loss (Typ.) 0.042 0.084 0.13 0.21 0.32 dB/ft
0.14 0.28 0.43 0.69 1.05 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of connectors. Insertion Loss is estimated as .1dB X SQRT (Frequency GHz)
per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PE (LD)
Number of Shields 1
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Female Cable Using RG174 Coax PE3C3325
PE3C3325 REV 1.0 1
