BNC Male to BNC Female Low Frequency Low
Loss Cable Using PE-SF200LL Coax, RoHS

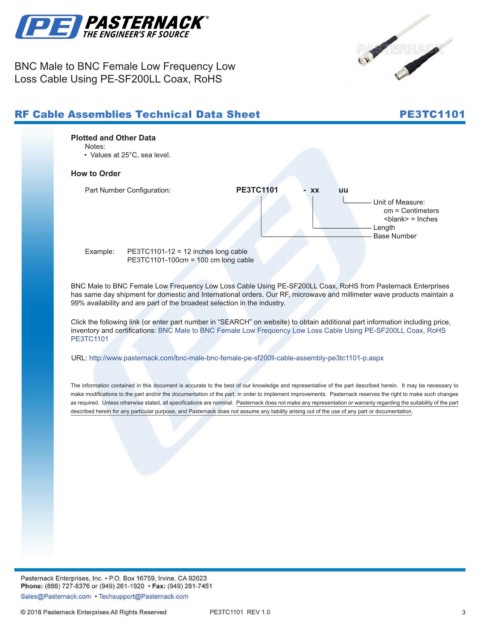

RF Cable Assemblies Technical Data Sheet PE3TC1101

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

How to Order

Part Number Configuration: PE3TC1101 - xx uu
| | | | | Unit of Measure:
cm = Centimeters
| <blank> = Inches
|
| | Length
Base Number
Example: PE3TC1101-12 = 12 inches long cable
PE3TC1101-100cm = 100 cm long cable

BNC Male to BNC Female Low Frequency Low Loss Cable Using PE-SF200LL Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Female Low Frequency Low Loss Cable Using PE-SF200LL Coax, RoHS
PE3TC1101

URL: http://www.pasternack.com/bnc-male-bnc-female-pe-sf200ll-cable-assembly-pe3tc1101-p.aspx

PE3TC1101 REV 1.0 3
