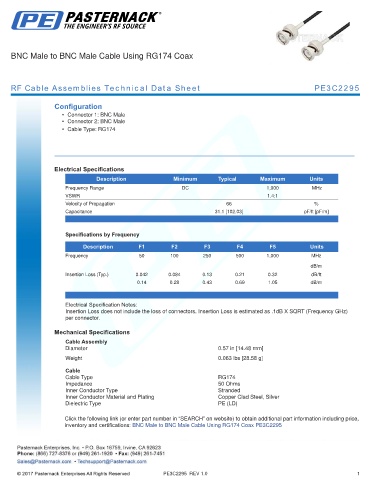

BNC Male to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C2295

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG174

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
dB/m
Insertion Loss (Typ.) 0.042 0.084 0.13 0.21 0.32 dB/ft
0.14 0.28 0.43 0.69 1.05 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of connectors. Insertion Loss is estimated as .1dB X SQRT (Frequency GHz)
per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Weight 0.063 lbs [28.58 g]

Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PE (LD)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG174 Coax PE3C2295

PE3C2295 REV 1.0 1
