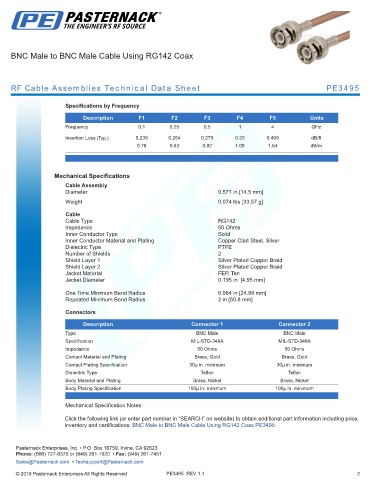

BNC Male to BNC Male Cable Using RG142 Coax

RF Cable Assemblies Technical Data Sheet PE3495

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 4 GHz
Insertion Loss (Typ.) 0.239 0.254 0.279 0.33 0.499 dB/ft
0.78 0.83 0.92 1.08 1.64 dB/m

.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Weight 0.074 lbs [33.57 g]
Cable
Cable Type RG142
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 0.984 in [24.99 mm]
Repeated Minimum Bend Radius 2 in [50.8 mm]

Connectors
Description Connector 1 Connector 2
Type BNC Male BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG142 Coax PE3495
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3495 REV 1.1 2
