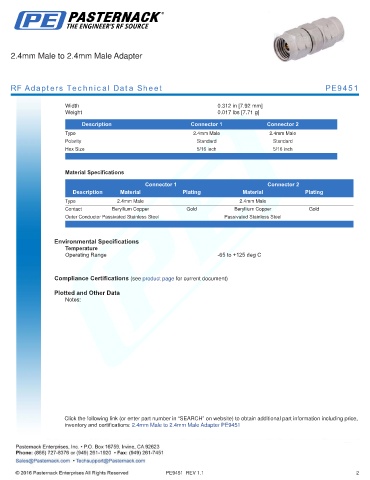

2.4mm Male to 2.4mm Male Adapter
RF Adapters Technical Data Sheet PE9451
Width 0.312 in [7.92 mm]
Weight 0.017 lbs [7.71 g]
.
Description Connector 1 Connector 2
Type 2.4mm Male 2.4mm Male
Polarity Standard Standard
Hex Size 5/16 inch 5/16 inch
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm Male 2.4mm Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Male to 2.4mm Male Adapter PE9451
PE9451 REV 1.1 2
