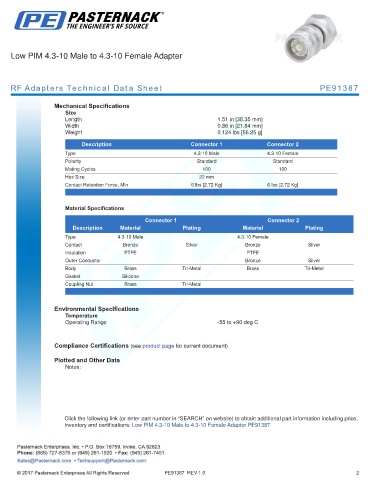

Low PIM 4.3-10 Male to 4.3-10 Female Adapter
RF Adapters Technical Data Sheet PE91387
Mechanical Specifications
Size
Length 1.51 in [38.35 mm]
Width 0.86 in [21.84 mm]
Weight 0.124 lbs [56.25 g]
.
Description Connector 1 Connector 2
Type 4.3-10 Male 4.3-10 Female
Polarity Standard Standard
Mating Cycles 100 100
Hex Size 22 mm
Contact Retention Force, Min 6 lbs [2.72 Kg] 6 lbs [2.72 Kg]
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.3-10 Male 4.3-10 Female
Contact Bronze Silver Bronze Silver
Insulation PTFE PTFE
Outer Conductor Bronze Silver
Body Brass Tri-Metal Brass Tri-Metal
Gasket Silicone
Coupling Nut Brass Tri-Metal
. .
Environmental Specifications
Temperature
Operating Range -55 to +90 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.3-10 Male to 4.3-10 Female Adapter PE91387
