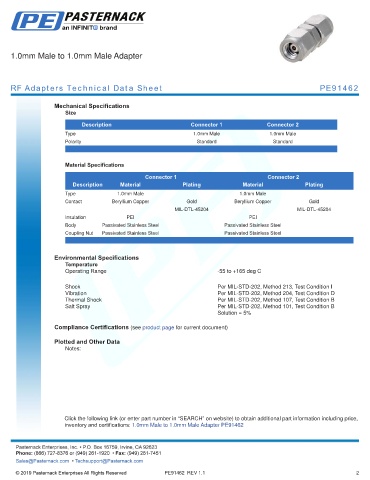

1.0mm Male to 1.0mm Male Adapter
RF Adapters Technical Data Sheet PE91462
Mechanical Specifications
Size
.
Description Connector 1 Connector 2
Type 1.0mm Male 1.0mm Male
Polarity Standard Standard
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.0mm Male 1.0mm Male
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-DTL-45204 MIL-DTL-45204
Insulation PEI PEI
Body Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -55 to +165 deg C
.
Shock Per MIL-STD-202, Method 213, Test Condition I
Vibration Per MIL-STD-202, Method 204, Test Condition D
Thermal Shock Per MIL-STD-202, Method 107, Test Condition B
Salt Spray Per MIL-STD-202, Method 101, Test Condition B
Solution = 5%
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.0mm Male to 1.0mm Male Adapter PE91462
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE91462 REV 1.1 2
