3.5mm Female to 3.5mm Female Bulkhead Adapter
RF Adapters Technical Data Sheet PE9678

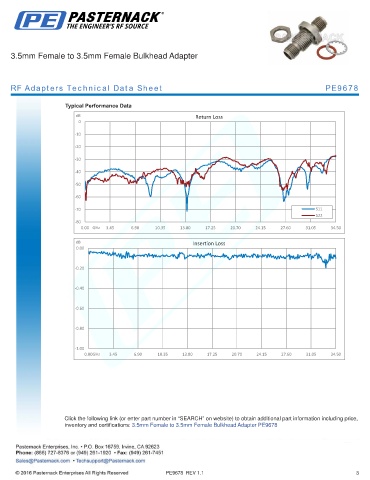

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
-70 S11
S22
-80
0.00 GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Female to 3.5mm Female Bulkhead Adapter PE9678
PE9678 REV 1.1 3
