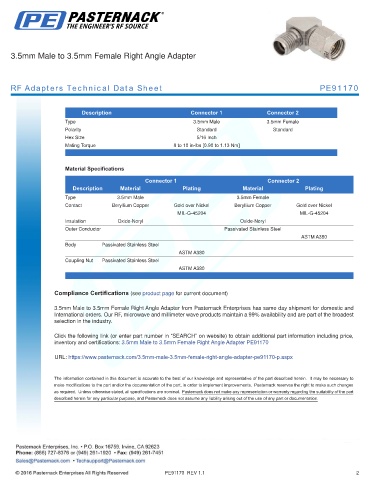

3.5mm Male to 3.5mm Female Right Angle Adapter

RF Adapters Technical Data Sheet PE91170

.
Description Connector 1 Connector 2
Type 3.5mm Male 3.5mm Female
Polarity Standard Standard
Hex Size 5/16 Inch
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 3.5mm Male 3.5mm Female
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
MIL-G-45204 MIL-G-45204
Insulation Oxide-Noryl Oxide-Noryl
Outer Conductor Passivated Stainless Steel
ASTM A380
Body Passivated Stainless Steel
ASTM A380
Coupling Nut Passivated Stainless Steel
ASTM A380
. .

Compliance Certifications (see product page for current document)

3.5mm Male to 3.5mm Female Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Male to 3.5mm Female Right Angle Adapter PE91170
