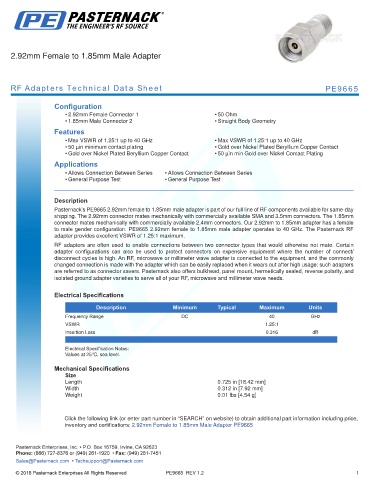

2.92mm Female to 1.85mm Male Adapter
RF Adapters Technical Data Sheet PE9665
Configuration
• 2.92mm Female Connector 1 • 50 Ohm
• 1.85mm Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 40 GHz • Max VSWR of 1.25:1 up to 40 GHz
• 50 µin minimum contact plating • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • 50 µin min Gold over Nickel Contact Plating
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9665 2.92mm female to 1.85mm male adapter is part of our full line of RF components available for same-day
shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. The 1.85mm
connector mates mechanically with commercially available 2.4mm connectors. Our 2.92mm to 1.85mm adapter has a female
to male gender configuration. PE9665 2.92mm female to 1.85mm male adapter operates to 40 GHz. The Pasternack RF
adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
Insertion Loss 0.316 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.725 in [18.42 mm]
Width 0.312 in [7.92 mm]
Weight 0.01 lbs [4.54 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 1.85mm Male Adapter PE9665
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE9665 REV 1.2 1
