N Male Right Angle to N Female Cable Using PE-P300LL Coax

Product ID: PE3C3115

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-P300LL
RF Cable Type	PE-P300LL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45225	PE-P300LL	PE45245	KitBOM Datasheet

N Male Right Angle to N Female Cable Using PE-P300LL Coax, LF Solder

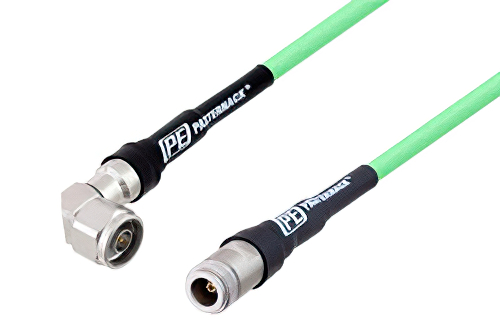

PE3C3115 is a N male right angle to N female cable using PE-P300LL coax. This Pasternack N male right angle to N female cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm N for connector 2. N right angle to N coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male N right angle to female N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3115 N male right angle to N female cable assembly is constructed with PE-P300LL coax.
