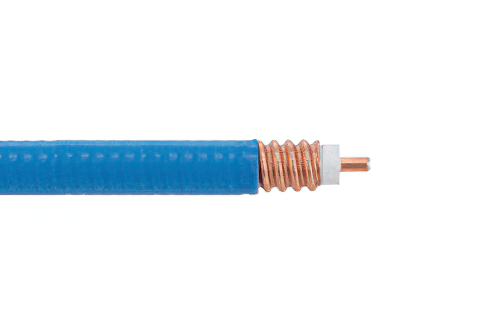

Low Loss SPP-375-LLPL Plenum Rated Corrugated Coax Cable with Blue FEP Jacket Superflexible
Product ID:
SPP-375-LLPL
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | SPP-375-LLPL |
| Flex Type | Corrugated |
| Impedance | 50 Ohm |
| Dielectric Type | Microporous PTFE |
| Velocity of Propagation | 76 % |
| Jacket Diameter | 0.402 in |
| Jacket Material | FEP |
| No. of Shields | 1 |
| Passive Intermodulation | -160 dBc |
| RF Shielding | 100 dB |
| Frequency, Max | 5.8 GHz |
| Max Operating Temperature | 200 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 1.25 in |
| Coax Type | Coax |
Description
Low Loss SPP-375-LLPL Plenum Rated Corrugated Coax Cable with Blue FEP Jacket Superflexible
SPP-375-LLPL part number from Pasternack is a SPP-375-LLPL coax cable that is corrugated. Pasternack SPP-375-LLPL corrugated coax cable is 50 Ohm and has a Microporous PTFE dielectric. Our SPP-375-LLPL coax is constructed with a 0.402 jacket made of FEP. SPP-375-LLPL coax has a shield count of 1, a RF shielding of 100 dB and the maximum frequency for this Pasternack cable is 5.8 GHz.
Pasternack SPP-375-LLPL coax cables are part of over 40,000 RF, microwave and millimeter wave components. SPP-375-LLPL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using SPP-375-LLPL or other coax can be built and shipped same day as well.
