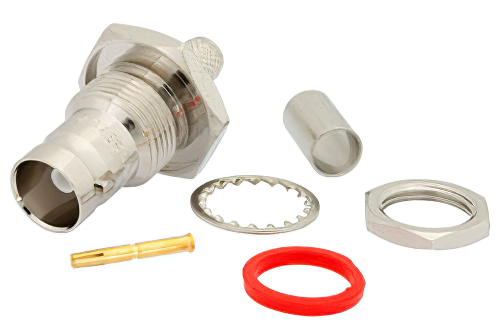

PE4638 BNC female bulkhead coaxial connector has an interface type of BNC female which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's BNC female bulkhead connector uses crimp/solder as an attachment method. Our female BNC coaxial connector provides a maximum frequency of 1 GHz. This BNC female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack BNC female bulkhead coaxial connector has a PTFE dielectric type. Pasternack's BNC coaxial connector has a brass body with nickel plating. Our PE4638 BNC connector uses agold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4638 features a 100 µin minimum body plating specification. The PE4638 BNC bulkhead connector operates at a temperature range of -65 to 165 deg C. This BNC connector has a gold inner contact plating. The Pasternack BNC female connector has a maximum operating voltage of 500 Vrms. Our BNC female connector has a length of 1.24 inches, a width of 0.689 inches, and a weight of 0.043 lbs.
This Pasternack female BNC bulkhead connector will ship the same business day as purchased. Our bulkhead BNC female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
