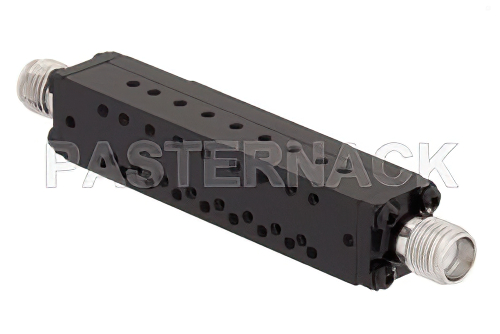

9 Section Bandpass Filter With 2.92mm Female Connectors Operating From 27.5 GHz to 31 GHz With a 3.5 GHz Passband
Product ID:
PE8744
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Bands | VSAT |
| Connector-In Series | 2.92mm |
| Connector-In Gender | Female |
| Connector-Out Series | 2.92mm |
| Connector-Out Gender | Female |
| Bandpass Min Frequency | 27.5 GHz |
| Bandpass Max Frequency | 31 GHz |
| RF Filter Design | Chebyshev |
| Maximum Insertion Loss | 2.5 dB |
Description
9 Section Bandpass Filter With 2.92mm Female Connectors Operating From 27.5 GHz to 31 GHz With a 3.5 GHz Passband
VSAT bandpass filter PE8744 from Pasternack is part of our extensive in-stock RF components for sale. Our VSAT band pass filter is manufactured with 2.92mm connectors that are female and in a 9 section design. This 9 section 2.92mm bandpass filter for VSAT has an insertion loss of 2.500 dB and a maximum power of 0 Watts.
Frequency range of this band pass filter is 27.5 GHz to 31 GHz and the passband is 3.5 GHz. PE8744 bandpass filter for VSAT band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 9 section VSAT bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
