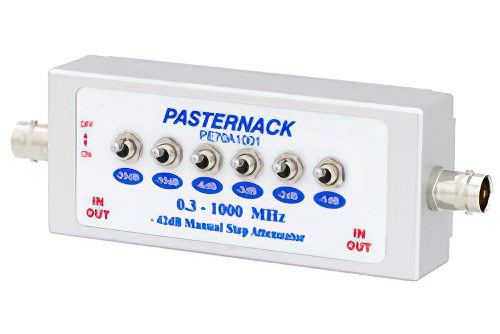

0 to 42 dB Toggle Step Attenuator, 75 Ohm BNC Female to 75 Ohm BNC Female Rated to 1 Watt Up to 1,000 MHz
Product ID:
PE70A1001
Pricing
Quantity | Price |
1-4 | $284.29 |
5-9 | $272.92 |
10-24 | $261.55 |
25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 12
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Design | Step |
Maximum Frequency | 1,000 MHz |
Impedance | 75 Ohm |
Power Maximum | 1 Watt |
VSWR Maximum | 1.3:1 |
Connector Series 1 | BNC |
Connector Gender 1 | Female |
Connector Series 2 | BNC |
Connector Gender 2 | Female |
Minimum Attenuation | 0 dB |
Description
0 to 42 dB Toggle Step Attenuator, 75 Ohm BNC Female to 75 Ohm BNC Female Rated to 1 Watt Up to 1,000 MHz
PE70A1001 is a stepped attenuator from Pasternack. Our BNC attenuator is a RF step attenuator design. This 75 Ohm manual step attenuator is precision manufactured to RF and microwave industry specifications.
The Pasternack coaxial step attenuator has a female gender for connector 1 and a BNC female for connector 2. PE70A1001 steped attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 42 dB with 0dB step sizes. Our RF step attenuator has frequency range of DC to 1 GHz and a maximum VSWR of 1.3. This adjustable BNC attenuator is rated to 1 at the stated attenuation.
Our stepped attenuator PE70A1001 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This BNC attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
