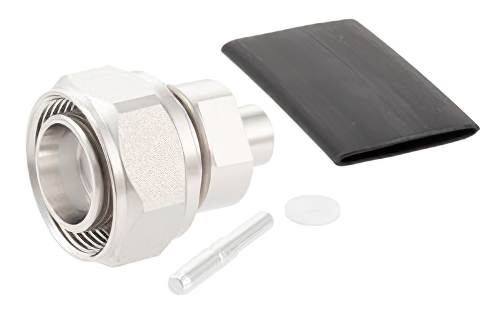

TC-250-4310M-LP 4.3-10 male coaxial connector has an interface type of 4.3-10 male SPP-250-LLPL, SPF-250, SPO-250, 1/4" Superflexible, and PE-1/4SFHC and a 50 Ohm impedance. Pasternack's 4.3-10 male connector uses solder/solder as an attachment method. Our male 4.3-10 coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack 4.3-10 male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's 4.3-10 coaxial connector has a brass body with tri-metal plating. Our TC-250-4310M-LP 4.3-10 connector uses a silver-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality TC-250-4310M-LP features a 100 µin body plating specification. The Pasternack TC-250-4310M-LP 4.3-10 low PIM connector operates at a temperature range of -40 to 125 deg C. This threaded male coaxial RF connector has a maximum insertion loss of 0.25 dB.
This Pasternack low PIM male 4.3-10 connector will ship the same business day as purchased. Our 4.3-10 male connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
