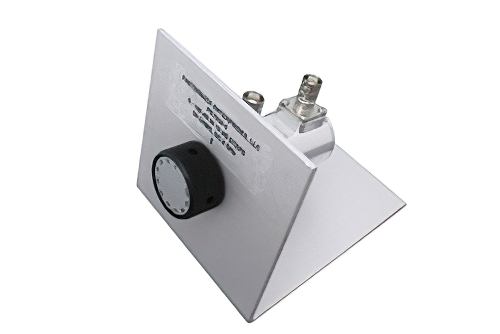

0 to 100 dB Rotary Step Attenuator, BNC Female to BNC Female With 10 dB Step Rated to 1 Watt Up to 2 GHz
Product ID:
PE7034-5
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Design | Step |
Maximum Frequency | 2 GHz |
Impedance | 50 Ohm |
Power Maximum | 1 Watt |
VSWR Maximum | 1.5:1 |
Connector Series 1 | BNC |
Connector Gender 1 | Female |
Connector Series 2 | BNC |
Connector Gender 2 | Female |
Minimum Attenuation | 0 dB |
Description
0 to 100 dB Rotary Step Attenuator, BNC Female to BNC Female With 10 dB Step Rated to 1 Watt Up to 2 GHz
PE7034-5 is a stepped attenuator from Pasternack. Our BNC attenuator is a RF step attenuator design. This 50 Ohm manual step attenuator is precision manufactured to RF and microwave industry specifications.
The Pasternack coaxial step attenuator has a female gender for connector 1 and a BNC female for connector 2. PE7034-5 steped attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 100 dB with 10dB step sizes. Our RF step attenuator has frequency range of DC to 2 GHz and a maximum VSWR of 1.5. This adjustable BNC attenuator is rated to 1 at the stated attenuation.
Our stepped attenuator PE7034-5 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This BNC attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
