1.0/2.3 Plug to BNC Female Bulkhead Cable Using LMR-100 Coax
Product ID:
PE3W05192
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet.
If not provided, cable length tolerances are within the IPC standards (2022-24) as shown
here.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | 1.0/2.3 |
| Connector Gender 1 | Plug |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | BNC |
| Connector Gender 2 | Female |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | Bulkhead |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Part Number | LMR-100A-PVC |
| RF Cable Type | LMR-100A |
| RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
 |  |  |  |
|---|
| PE44244 | LMR-100A-PVC | PE4106 | KitBOM Datasheet |
|---|

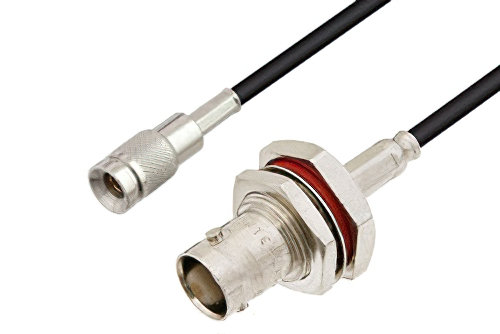

1.0/2.3 Plug to BNC Female Bulkhead Cable Using LMR-100 Coax
PE3W05192 is a 1.0/2.3 plug to BNC female bulkhead cable using LMR-100A coax. This Pasternack 1.0/2.3 plug to BNC female bulkhead cable assembly uses a 50 Ohm 1.0/2.3 for connector 1 and a 50 Ohm BNC for connector 2.
Our plug 1.0/2.3 to female BNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W05192 1.0/2.3 plug to BNC female bulkhead cable assembly is constructed with LMR-100A coax.
