- Support for all 802.11 WiFi and Bluetooth standards
(802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
and 802.11ax) - Designed for aesthetically pleasing integration into
most devices - Extra wide bandwidth to compensate for various housings
- Double-sided adhesive backing for peel-and-stick mounting
▼ Click on a product below for more details
Embedded WiFi Antennas
All Available for Same-Day Shipping!
Part No.
/Additional Views
Frequency
Band
(MHz)
Gain
(dBi)
VSWR
Size
(inch)
Size
(mm)
Design
 |

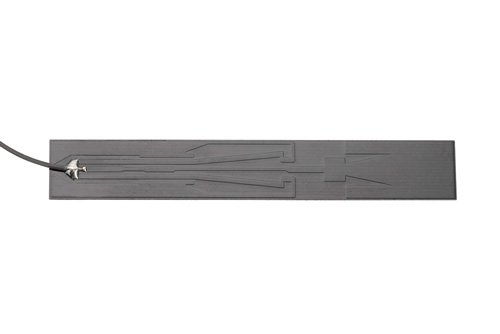

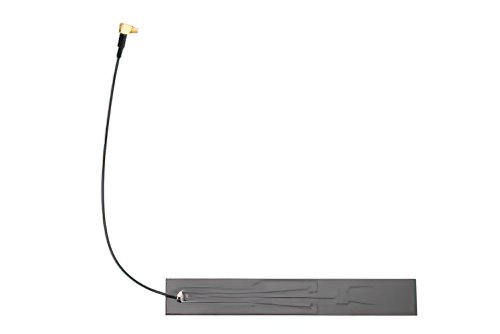

PE51199 | 704-2690 |
3 |
2.0 |
3.87x0.59 |
98x15 |
End Fed |
||
 |

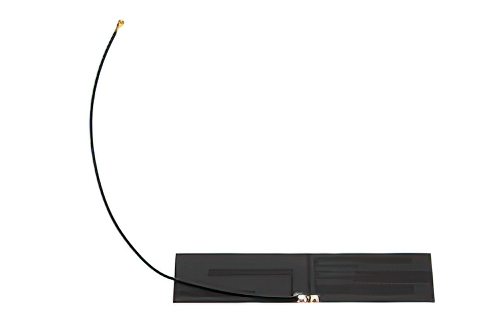

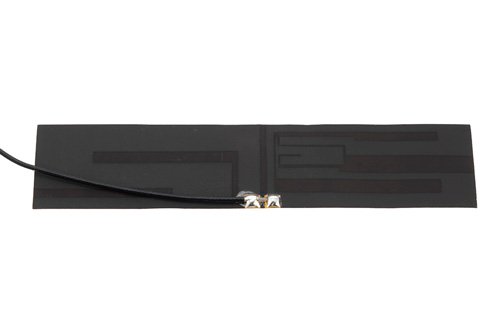

PE51200 | 698-2700 |
5 |
2.5 |
3.74x0.83 |
95x21 |
Flexible PCB |
||
 |

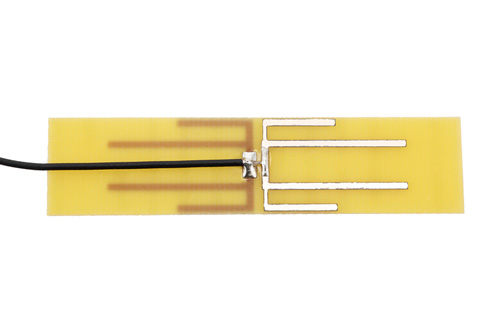

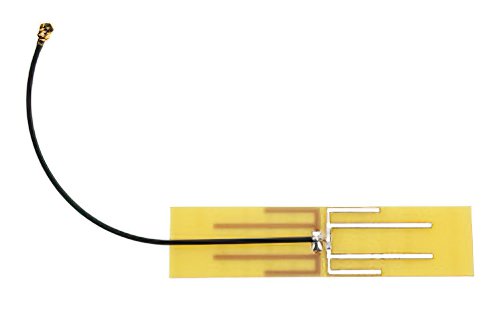

PE51201 | 2400-5900 |
2.5 |
2.0 |
2.60x0.63 |
66x16 |
End Fed |
||
 |

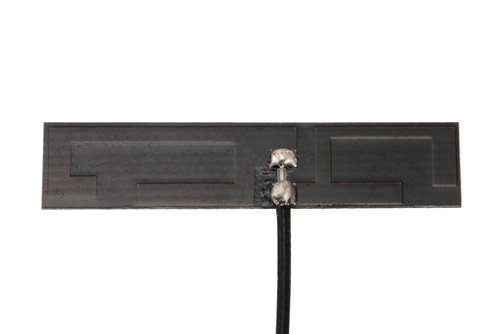

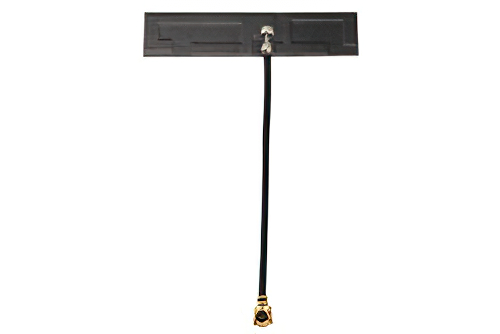

PE51202 | 2400-5900 |
3 |
2.0 |
1.38x0.31 |
35x8 |
Center Fed |
||
 |

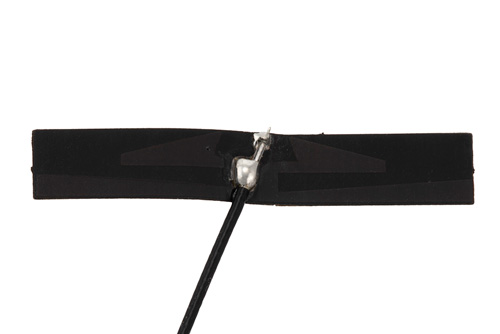

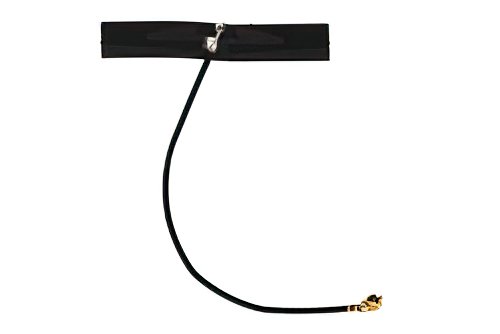

PE51203 | 2400-5900 |
4.5 |
2.5 |
1.65x0.26 |
42x7 |
Center Fed |
||
 |

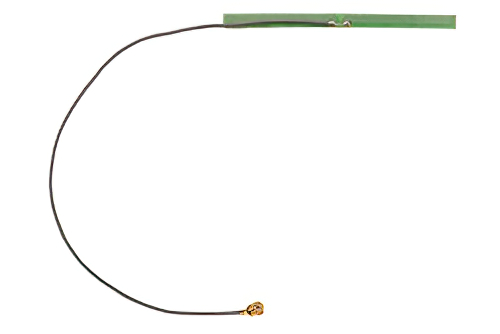

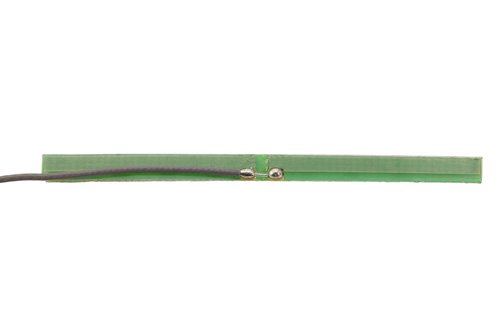

PE51204 | 2400-2500 |
2 |
2.0 |
1.89x0.12 |
48x3 |
End Fed |
||
 |

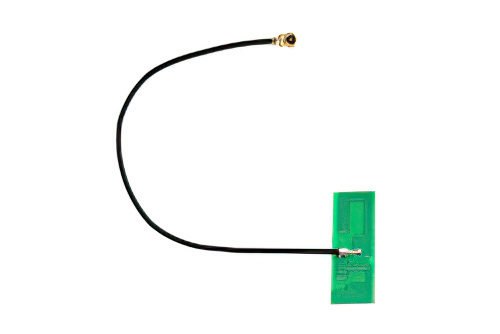

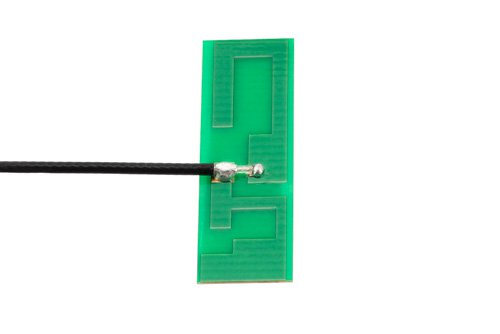

PE51205 | 2400-2500 |
3 |
2.0 |
1.05x0.35 |
27x9 |
Center Fed |
||
 |

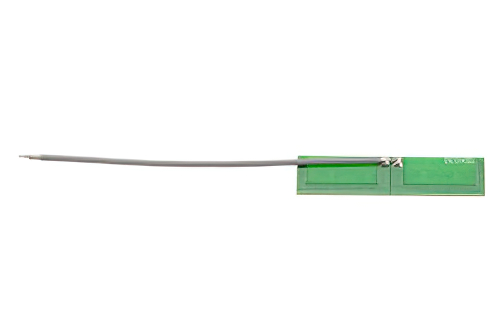

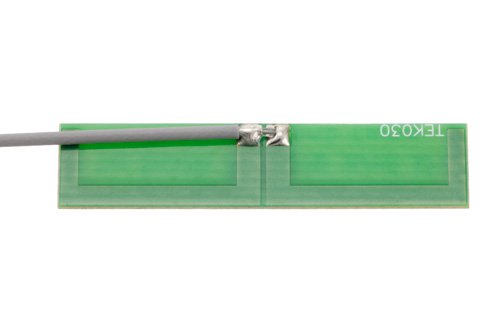

PE51206 | 2400-2500 |
1 |
2.0 |
1.38x0.31 |
35x8 |
End Fed |
||
 |

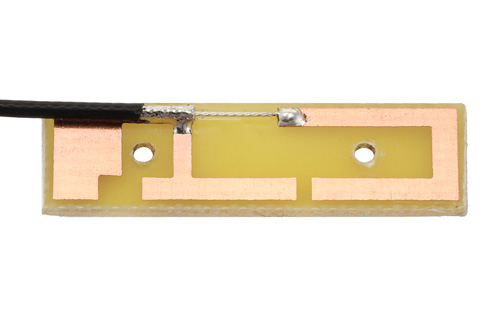

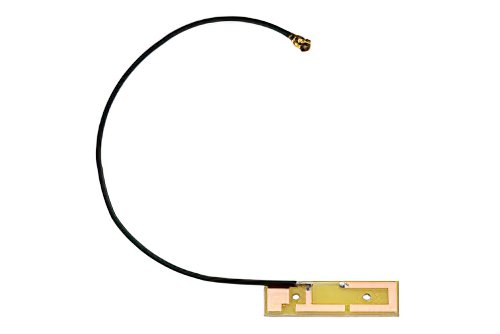

PE51207 | 2400-2500 |
3 |
2.0 |
1.06x0.30 |
27x8 |
End Fed |
||
 |

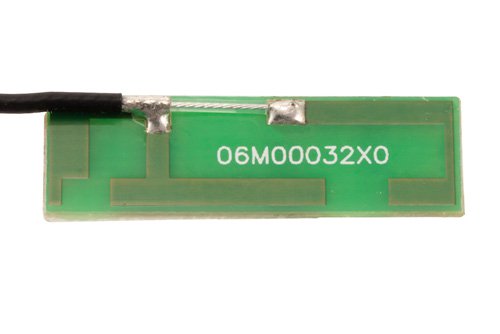

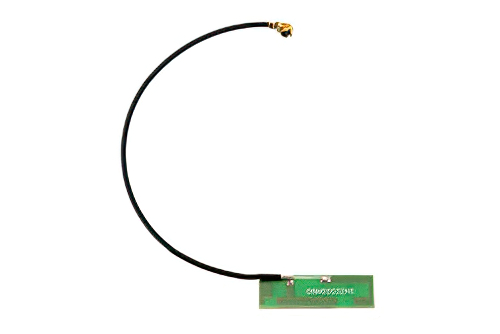

PE51208 | 2400-2500 |
2 |
2.0 |
1.02x0.52 |
26x13 |
End Fed |
||
 |

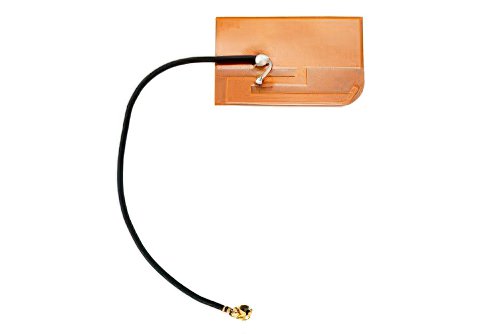

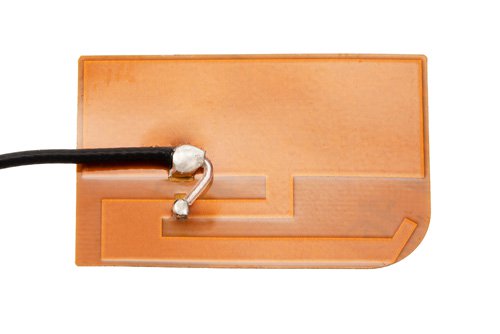

PE51209 | 2400-2500 |
2.6 |
2.0 |
1.06x0.71 |
27x18 |
End Fed, |
||
 |

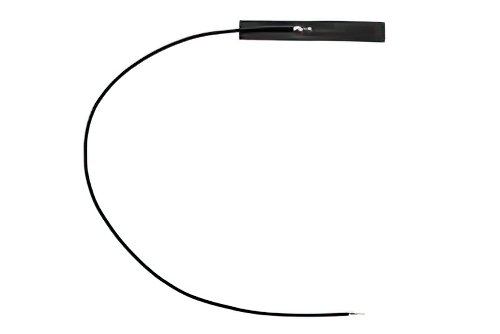

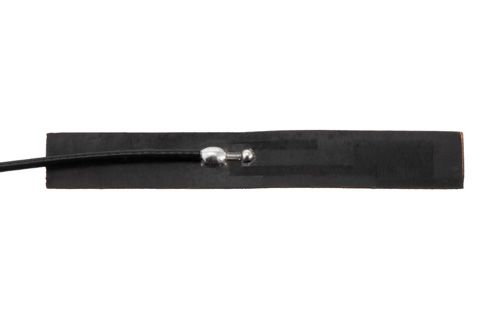

PE51210 | 2400-2500 |
3.5 |
2.0 |
1.85x0.26 |
47x7 |
End Fed, |
||
 |

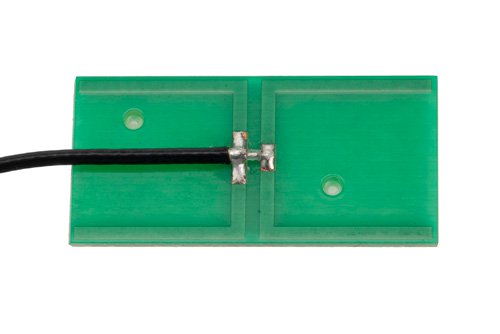

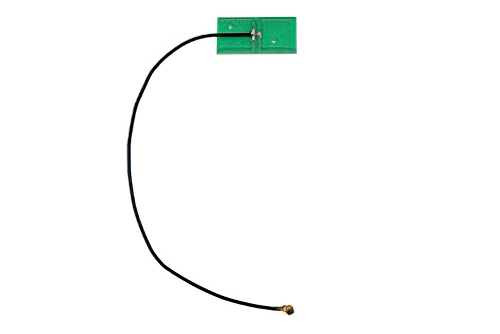

PE51211 | 5150-5850 |
3 |
2.0 |
1.02x0.52 |
26x13 |
End Fed |
||
 |

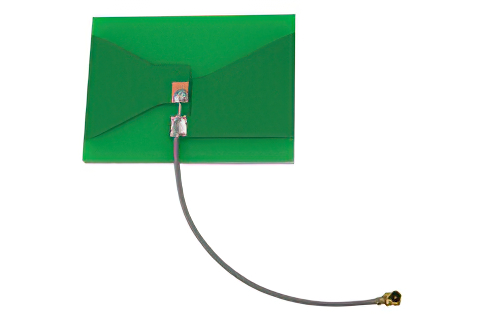

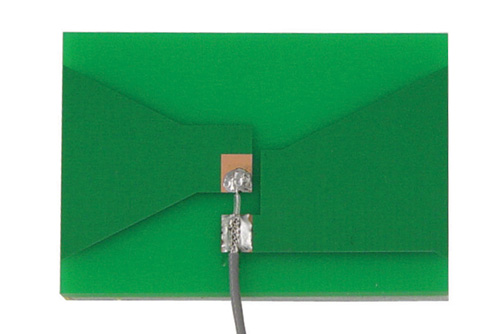

PE51213 | 2400-2500 |
2 |
2.3 |
1.70x1.40 |
43x36 |
Center Fed |
||
 |

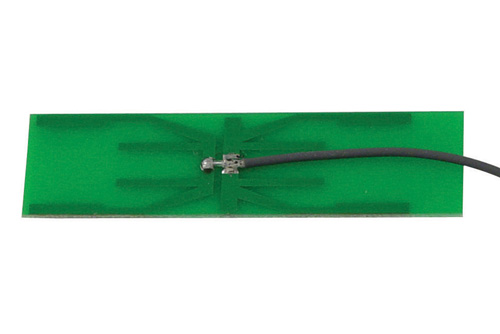

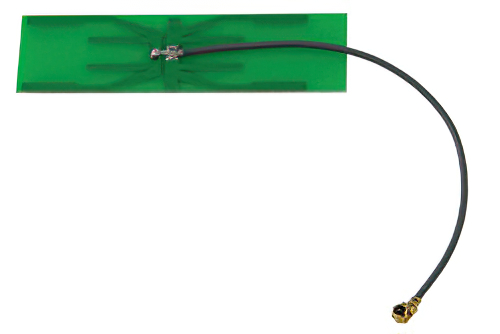

PE51214 | 2400-5900 |
3 |
2.0 |
1.60x0.70 |
41x18 |
End Fed |
||
 |

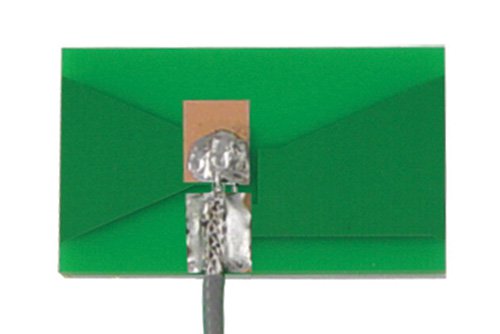

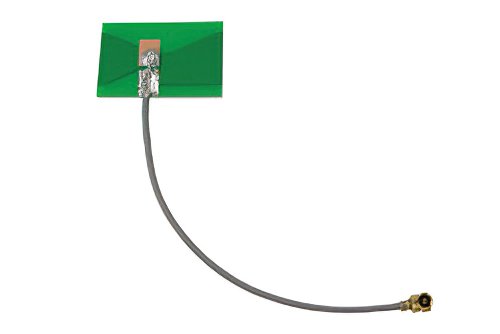

PE51215 | 4900-5900 |
4.5 |
3.0 |
0.69x0.38 |
18x10 |
Center Fed |
||
Embedded PCB WiFi Antennas from Pasternack
Embedded WiFi PCB antennas from Pasternack enable wireless connectivity devices to be built without an external antenna. These embedded WiFi antennas are small enough to fit into terminals with limited space using the double-sided adhesive tape on the back. Depending on the model, these integrated PCB WiFi antennas offer support for frequencies ranging from 2.4 to 5.9 GHz, to support a wide variety of end applications, including remote kiosks, credit card machines, POS systems, smart healthcare devices, IoT innovations, security and alarm panels, smart sensoring/monitoring, wireless CCTV systems, Zigbee, and Bluetooth.
Pasternack’s PCB embedded WiFi antennas are in-stock and available for same-day shipping!
