BNC Male to BNC Male Low Frequency Low Loss
Cable Using PE-SF200LL Coax, RoHS

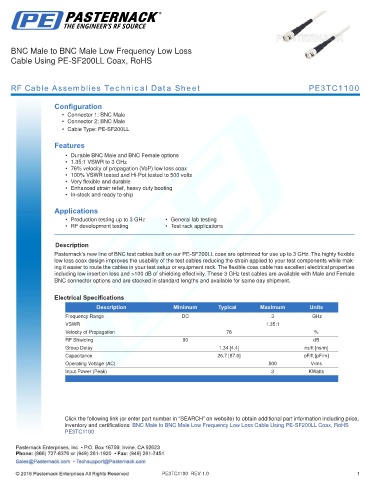

RF Cable Assemblies Technical Data Sheet PE3TC1100
Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: PE-SF200LL
Features
• Durable BNC Male and BNC Female options
• 1.35:1 VSWR to 3 GHz
• 76% velocity of propagation (VoP) low loss coax
• 100% VSWR tested and Hi-Pot tested to 500 volts
• Very flexible and durable
• Enhanced strain relief, heavy duty booting
• In-stock and ready to ship
Applications
• Production testing up to 3 GHz • General lab testing
• RF development testing • Test rack applications
.
Description
Pasternack’s new line of BNC test cables built on our PE-SF200LL coax are optimized for use up to 3 GHz. The highly flexible
low loss coax design improves the usability of the test cables reducing the strain applied to your test components while mak-
ing it easier to route the cables in your test setup or equipment rack. The flexible coax cable has excellent electrical properties
including low insertion loss and >100 dB of shielding effectivity. These 3 GHz test cables are available with Male and Female
BNC connector options and are stocked in standard lengths and available for same day shipment.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Velocity of Propagation 76 %
RF Shielding 90 dB
Group Delay 1.34 [4.4] ns/ft [ns/m]
Capacitance 26.7 [87.6] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
Input Power (Peak) 3 KWatts
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Low Frequency Low Loss Cable Using PE-SF200LL Coax, RoHS
PE3TC1100
PE3TC1100 REV 1.0 1
