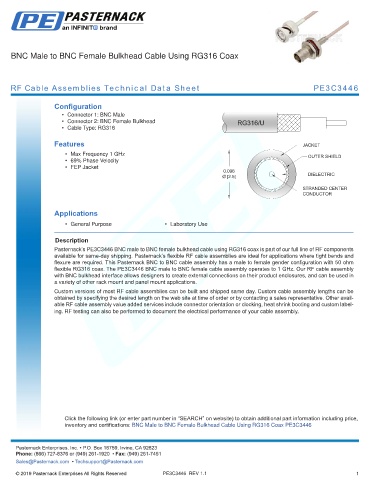

BNC Male to BNC Female Bulkhead Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3446

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Female Bulkhead
• Cable Type: RG316

Features
• Max Frequency 1 GHz
• 69% Phase Velocity
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3446 BNC male to BNC female bulkhead cable using RG316 coax is part of our full line of RF components
available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and
flexure are required. This Pasternack BNC to BNC cable assembly has a male to female gender configuration with 50 ohm
flexible RG316 coax. The PE3C3446 BNC male to BNC female cable assembly operates to 1 GHz. Our RF cable assembly
with BNC bulkhead interface allows designers to create external connections on their product enclosures, and can be used in
a variety of other rack mount and panel mount applications.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Female Bulkhead Cable Using RG316 Coax PE3C3446
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3446 REV 1.1 1
