Page 233 - BNC to N RF Cable Assembly Datasheets
P. 233

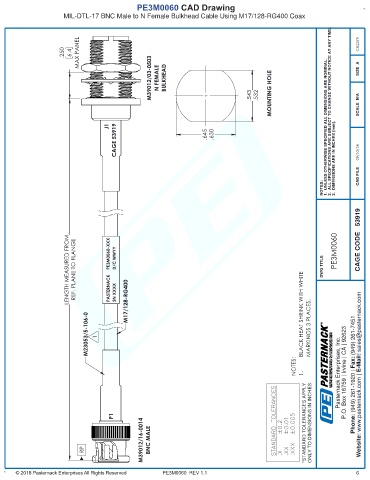

PE3M0060 CAD Drawing
MIL-DTL-17 BNC Male to N Female Bulkhead Cable Using M17/128-RG400 Coax
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME. SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm].
NOTES: CAD FILE
DWG TITLE CAGE CODE 53919
R E-Mail: sales@pasternack.com
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES Website: www.pasternack.com |
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
PE3M0060 REV 1.1 6
