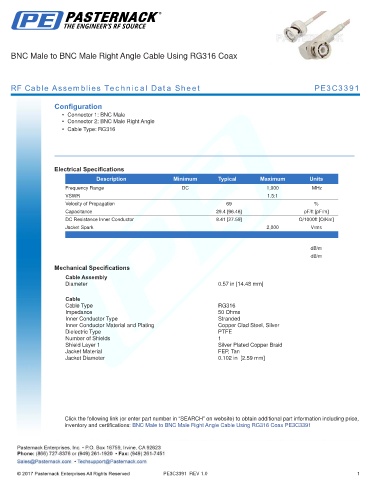

BNC Male to BNC Male Right Angle Cable Using RG316 Coax
RF Cable Assemblies Technical Data Sheet PE3C3391
Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male Right Angle
• Cable Type: RG316
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Jacket Spark 2,000 Vrms
.
dB/m
dB/m
Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.102 in [2.59 mm]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Right Angle Cable Using RG316 Coax PE3C3391
PE3C3391 REV 1.0 1
