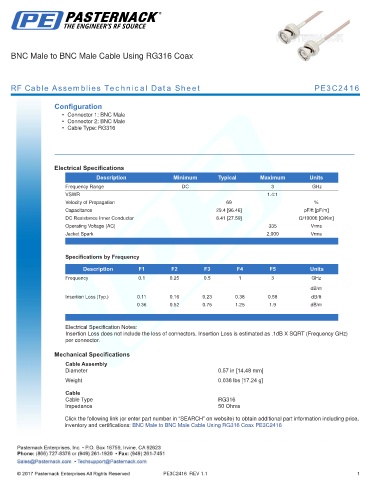

BNC Male to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C2416

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG316

.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Operating Voltage (AC) 335 Vrms
Jacket Spark 2,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.11 0.16 0.23 0.38 0.58 dB/ft
0.36 0.52 0.75 1.25 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of connectors. Insertion Loss is estimated as .1dB X SQRT (Frequency GHz)
per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Weight 0.038 lbs [17.24 g]
Cable
Cable Type RG316
Impedance 50 Ohms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG316 Coax PE3C2416

PE3C2416 REV 1.1 1
