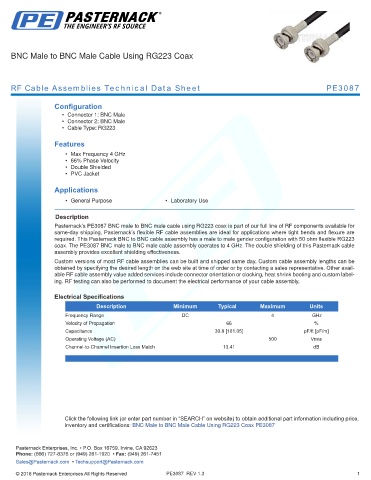

BNC Male to BNC Male Cable Using RG223 Coax
RF Cable Assemblies Technical Data Sheet PE3087
Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG223
Features
• Max Frequency 4 GHz
• 66% Phase Velocity
• Double Shielded
• PVC Jacket
Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3087 BNC male to BNC male cable using RG223 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack BNC to BNC cable assembly has a male to male gender configuration with 50 ohm flexible RG223
coax. The PE3087 BNC male to BNC male cable assembly operates to 4 GHz. The double shielding of this Pasternack cable
assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Velocity of Propagation 66 %
Capacitance 30.8 [101.05] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
Channel-to-Channel Insertion Loss Match 13.41 dB
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG223 Coax PE3087
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3087 REV 1.3 1
