4.1/9.5 Mini DIN Female to N Female Adapter IP67 Mated

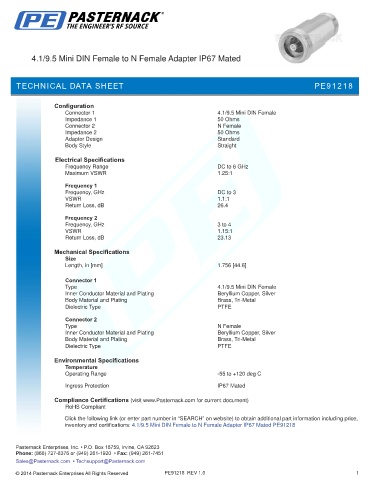

TECHNICAL DATA SHEET PE91218

Configuration
Connector 1 4.1/9.5 Mini DIN Female
Impedance 1 50 Ohms
Connector 2 N Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1

Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1
Return Loss, dB 26.4
Frequency 2
Frequency, GHz 3 to 4
VSWR 1.15:1
Return Loss, dB 23.13

Mechanical Specifications
Size
Length, in [mm] 1.756 [44.6]
.
Connector 1
Type 4.1/9.5 Mini DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type N Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -55 to +120 deg C

Ingress Protection IP67 Mated

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4.1/9.5 Mini DIN Female to N Female Adapter IP67 Mated PE91218
