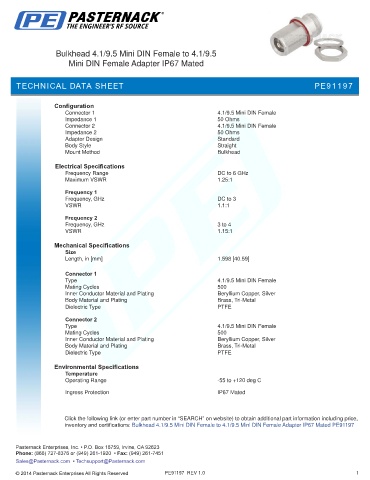

Bulkhead 4.1/9.5 Mini DIN Female to 4.1/9.5
Mini DIN Female Adapter IP67 Mated
TECHNICAL DATA SHEET PE91197
Configuration
Connector 1 4.1/9.5 Mini DIN Female
Impedance 1 50 Ohms
Connector 2 4.1/9.5 Mini DIN Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Mount Method Bulkhead
Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1
Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1
Frequency 2
Frequency, GHz 3 to 4
VSWR 1.15:1
Mechanical Specifications
Size
Length, in [mm] 1.598 [40.59]
.
Connector 1
Type 4.1/9.5 Mini DIN Female
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Connector 2
Type 4.1/9.5 Mini DIN Female
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Environmental Specifications
Temperature
Operating Range -55 to +120 deg C
Ingress Protection IP67 Mated
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 4.1/9.5 Mini DIN Female to 4.1/9.5 Mini DIN Female Adapter IP67 Mated PE91197
