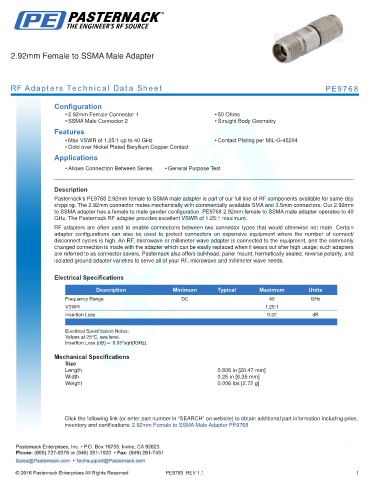

2.92mm Female to SSMA Male Adapter
RF Adapters Technical Data Sheet PE9768
Configuration
• 2.92mm Female Connector 1 • 50 Ohms
• SSMA Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 40 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9768 2.92mm female to SSMA male adapter is part of our full line of RF components available for same-day
shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our 2.92mm
to SSMA adapter has a female to male gender configuration. PE9768 2.92mm female to SSMA male adapter operates to 40
GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).
Mechanical Specifications
Size
Length 0.806 in [20.47 mm]
Width 0.25 in [6.35 mm]
Weight 0.006 lbs [2.72 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to SSMA Male Adapter PE9768
PE9768 REV 1.1 1
