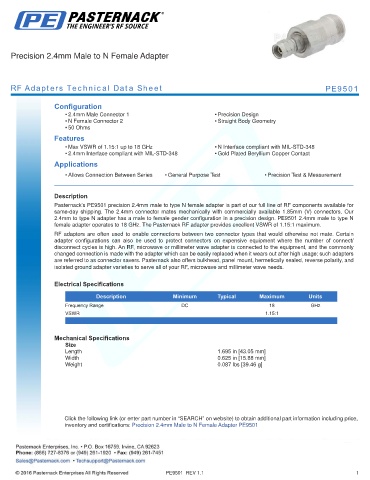

Precision 2.4mm Male to N Female Adapter
RF Adapters Technical Data Sheet PE9501
Configuration
• 2.4mm Male Connector 1 • Precision Design
• N Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • N Interface compliant with MIL-STD-348
• 2.4mm Interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9501 precision 2.4mm male to type N female adapter is part of our full line of RF components available for
same-day shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our
2.4mm to type N adapter has a male to female gender configuration in a precision design. PE9501 2.4mm male to type N
female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .
Mechanical Specifications
Size
Length 1.695 in [43.05 mm]
Width 0.625 in [15.88 mm]
Weight 0.087 lbs [39.46 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.4mm Male to N Female Adapter PE9501
PE9501 REV 1.1 1
