WRD-650 Double Ridge Waveguide 40 dB Broadwall Coupler, SMA Female Coupled Port, 6.5 GHz to 18 GHz, Brass
Product ID:
PEWRD650CP01-40
Pricing
Quantity | Price |
1-4 | $4,389.00 |
5-9 | $4,301.22 |
10-24 | $4,213.44 |
25-99 | $4,125.66 |
100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
![Shipping Truck](/App_Themes/Skin_3/Content/images/SVGs/icon-truck.svg)
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
Key Specifications. |
Waveguide Size |
WRD-650 |
Flange Type |
Cover |
Flange Group |
Standard |
Frequency, Min |
6.5 GHz |
Frequency, Max |
18 GHz |
Impedance |
50 |
Maximum VSWR |
1.5:1 |
Maximum Insertion Loss |
0.3 |
Coupling |
40 |
Description

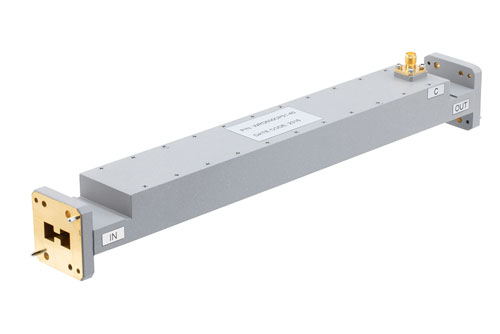

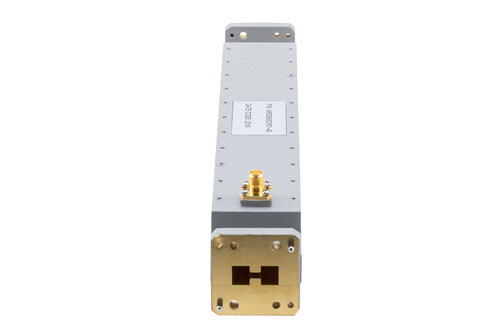

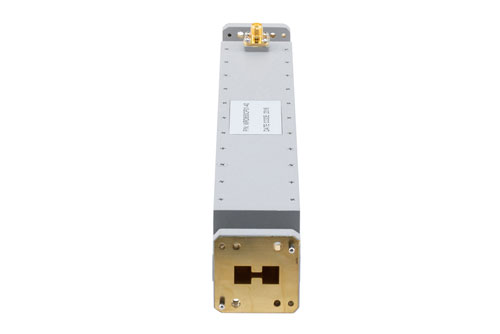

WRD-650 Double Ridge Waveguide 40 dB Broadwall Coupler, SMA Female Coupled Port, 6.5 GHz to 18 GHz, Brass
The PEWRD650CP01-40 is a WRD-650 Directional Broadwall double ridge waveguide coupler with SMA female coupled port that operates in the frequency range of 6.5 to 18 GHz. This Waveguide component has a maximum VSWR of 1.5:1. These designs are made of painted copper alloy and incorporate a broad wall configuration that result in a mid-band nominal coupling value of 10, 20, 30, 40 or 50 dB. Common applications for this component would be where power measurements are required within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Pasternack offers a complete family of waveguide Crossguide and Broadwall couplers that are in-stock and ship same day.
