We offer an innovative series of in-stock, highly reliable Temperature Compensated Amplifiers to address precision performance and test and measurement applications
High Reliability
MIC thin film and MMIC semiconductor technology
Rugged Designs
Meet a series of MIL-STD-202F environmental test conditions for altitude, vibration, humidity and shock
Multiple Configurations
Available as standalone coaxial packaged modules or coaxial modules mounted onto integrated heatsinks
Broad Operating Temperature Range
-55 °C to +85 °C
Adjustable Gain
Pin diode attenuation circuitry adjusts gain levels as the device is exposed to temperature variations
High Power Output
1.0 dB compression power levels range from 15 to 20 dBm
Wide Voltage Range
From +12Vdc to +15Vdc
Temperature Compensated Low Noise Amplifier, 0.5 GHz to 4 GHz, 35 dB min Gain, P1dB 20 dBm, SMA

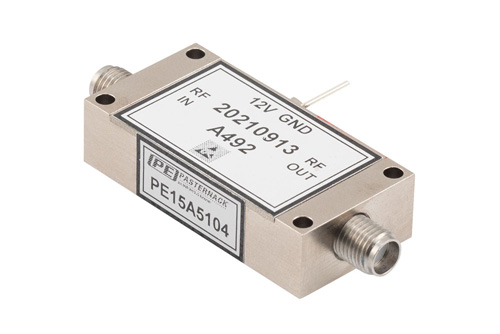

Temperature Compensated Low Noise Amplifier, 2 GHz to 8 GHz, 35 dB min Gain, P1dB 20 dBm, SMA

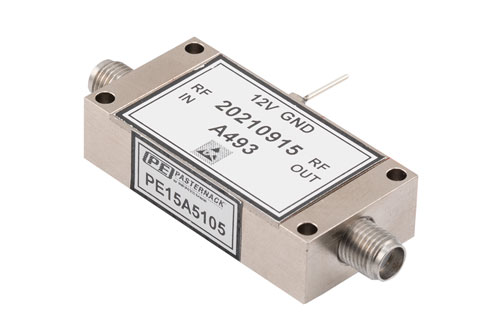

Temperature Compensated Low Noise Amplifier, 4 GHz to 12 GHz, 35 dB min Gain, P1dB 20 dBm, SMA
Temperature Compensated Low Noise Amplifier, 2 GHz to 18 GHz, 35 dB min Gain, P1dB 20 dBm, SMA
View all our legacy RF Amplifiers
