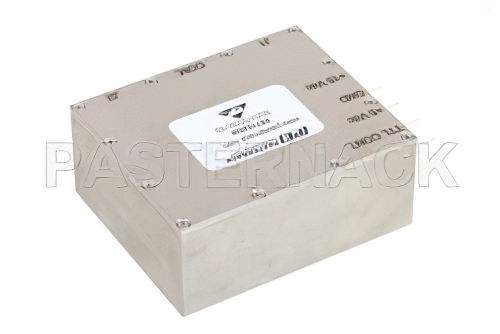

SPDT PIN Diode Switch Operating from 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA

PE71S2039 PIN diode switch from Pasternack is a Reflective design. Our RF Reflective PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Reflective switch has a minimum frequency of 20 MHz and a maximum frequency of 500 MHz. The Pasternack PIN diode Reflective RF switch is rated at a switching speed of 40,000 ns and a maximum input power of 150 Watts (+51.8 dBm ).

Insertion loss maximum of this SMA Reflective switch is 0.5 dB with an isolation minimum of 50 dB. Reflective PIN diode radio frequency switch PE71S2039 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Reflective SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
