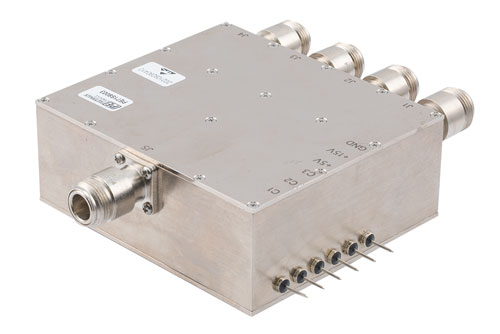

PE71S8003 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses N connectors at 50 Ohm. This N PIN diode Absorptive switch has a minimum frequency of 30 MHz and a maximum frequency of 512 MHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of ns and a maximum input power of 200 Watts (+53 dBm ).
Insertion loss maximum of this N Absorptive switch is 0.75 dB with an isolation minimum of 50 dB. Absorptive PIN diode radio frequency switch PE71S8003 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive N coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
