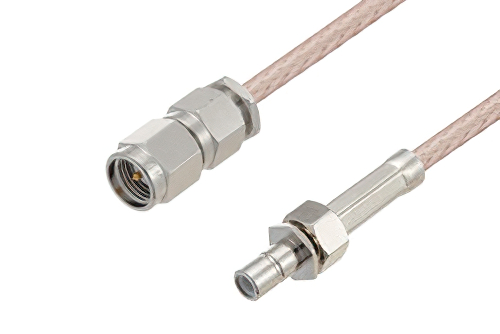

SMA Male to SMB Jack Cable Using RG316-DS Coax
Product ID:
PE3W05361
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series 1 | SMA |
Connector Gender 1 | Male |
Connector Polarity 1 | Standard |
Connector Angle 1 | Straight |
Connector Mount Method 1 | None |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | SMB |
Connector Gender 2 | Jack |
Connector Polarity 2 | Standard |
Connector Angle 2 | Straight |
Connector Mount Method 2 | None |
Connector Impedance 2 | 50 Ohm |
RF Cable Part Number | RG316-DS |
RF Cable Type | RG316-DS |
RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
![](/images/product/medium/PE4400.jpg) | ![](/images/product/medium/RG316-DS.jpg) | ![](/images/product/medium/PE45158.jpg) | ![](/images/webtools/configurator/kitbom_datasheets.png) |
---|
PE4400 | RG316-DS | PE45158 | KitBOM Datasheet |
---|
SMA Male to SMB Jack Cable Using RG316-DS Coax
PE3W05361 is a SMA male to SMB jack cable using RG316-DS coax. This Pasternack SMA male to SMB jack cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMB for connector 2.
Our male SMA to jack SMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W05361 SMA male to SMB jack cable assembly is constructed with RG316-DS coax.
