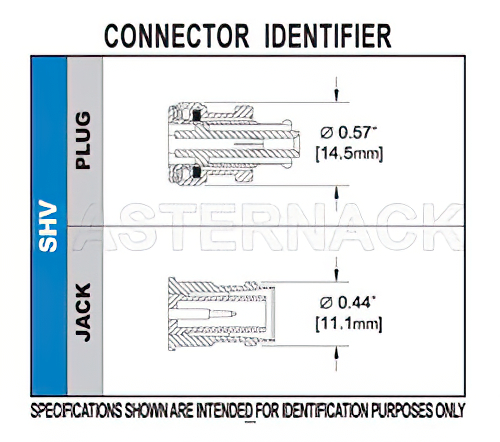

PE4315 SHV jack bulkhead coaxial connector has an interface type of SHV jack which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 50 Ohms. Pasternack's SHV jack bulkhead connector uses clamp/solder as an attachment method. This SHV jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack SHV jack bulkhead coaxial connector has a PTFE dielectric type. Pasternack's SHV coaxial connector has a brass body with nickel plating. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4315 features a QQ-N-290 body plating specification. This SHV connector has a silver inner contact plating. Our SHV jack connector has a length of 1.83 inches, a width of 0.687 inches, and a weight of 0.068 lbs.
This Pasternack jack SHV bulkhead connector will ship the same business day as purchased. Our bulkhead SHV jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
