  • Frequency range of 18 GHz to 110 GHz across seven bands
  • Waveguide twist sizes ranging from WR-42 (18 GHz) to WR-10 (110 GHz)
  • 90º and 45º versions stocked
  • 45º twists are available in right or left hand twist
  • Insertion loss as low as 0.2 dB
  • Waveguide twist VSWR as low as 1.02:1
  • Rugged gold plated brass construction
  • UG-style square and round flanges



Waveguide twist series is in stock and ready for same-day shipping!

▼ Click below for more waveguide twist details

Precision Waveguide Twists from Pasternack

Part No.

Waveguide
Type

Frequency
Band
(GHz)

Material
Plating

Insertion
Loss (dB)

VSWR

Twist
Plane

Offset
Degree

Waveguide Twist Flange

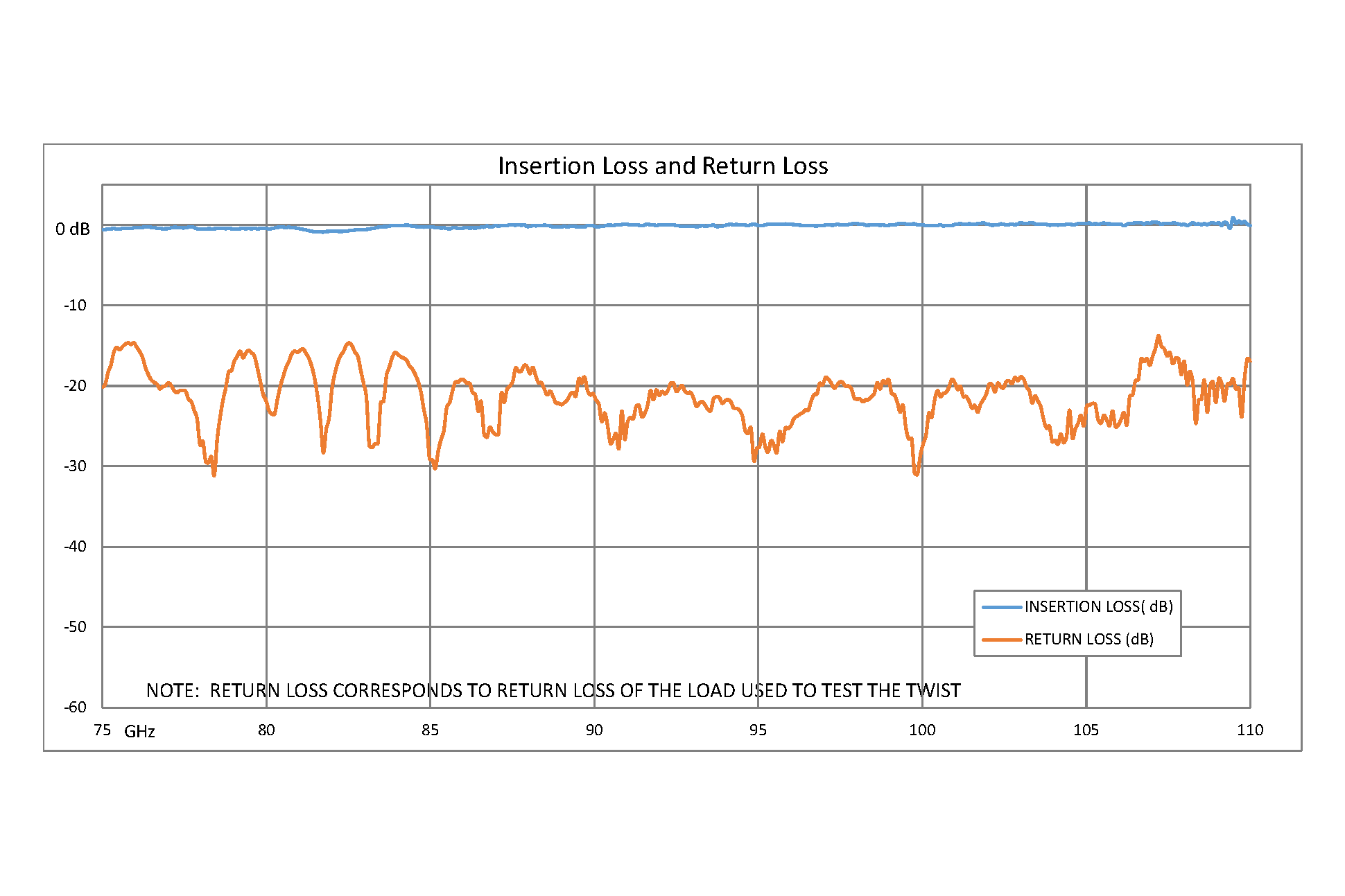

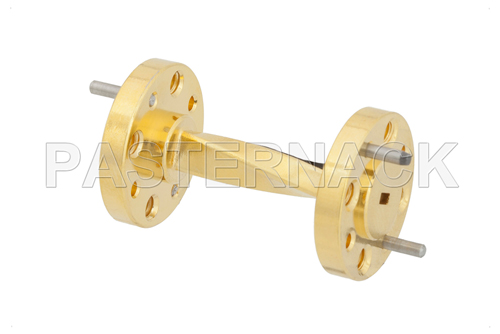

WR-10 90 Degree Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz   PE-W10TW1001

WR-10

75 - 110

Brass - Gold

1.000

1.430

90

UG-387/U-Mod
  • descrWR-10 90 Degree Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 90 Degree Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 90 Degree Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz

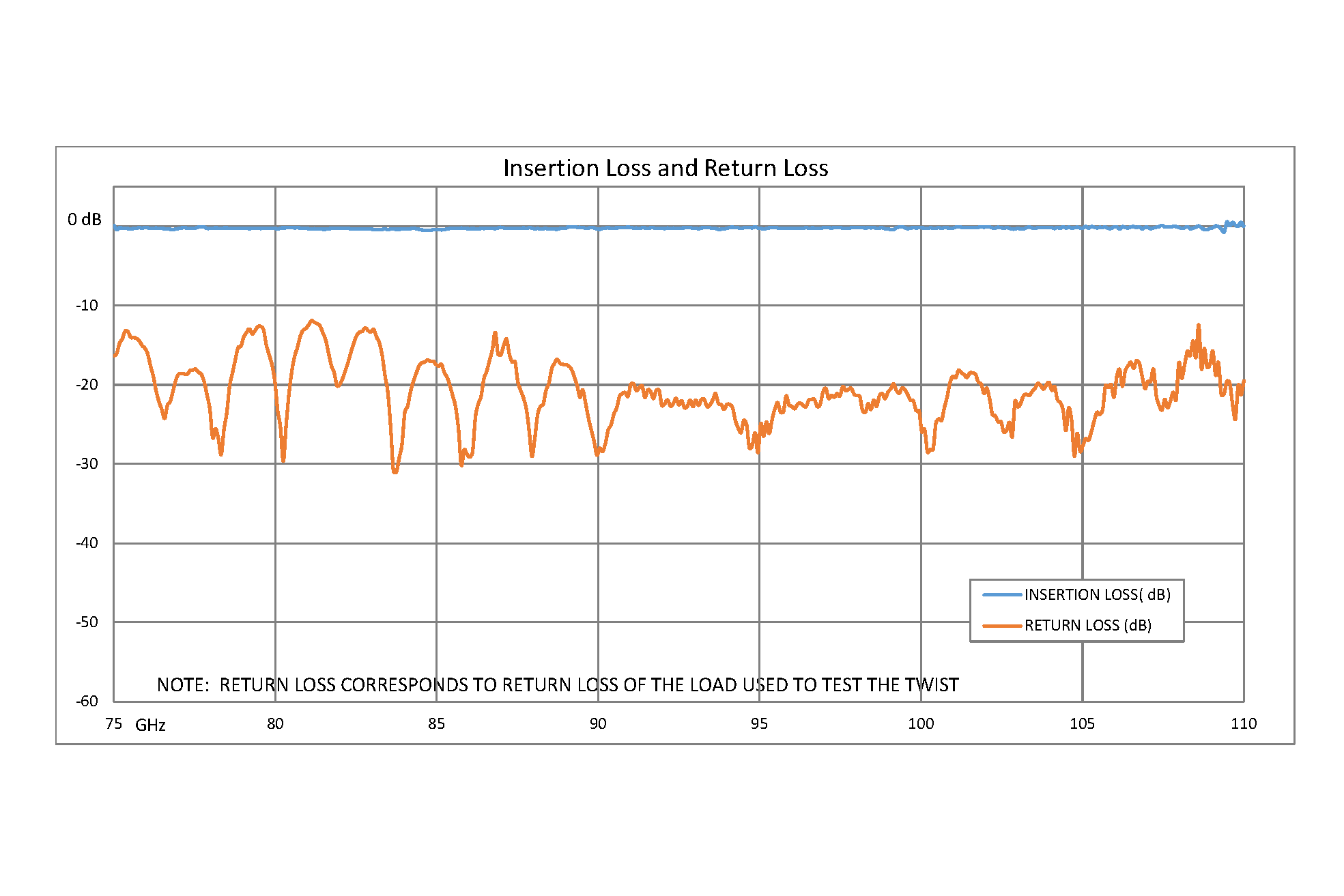

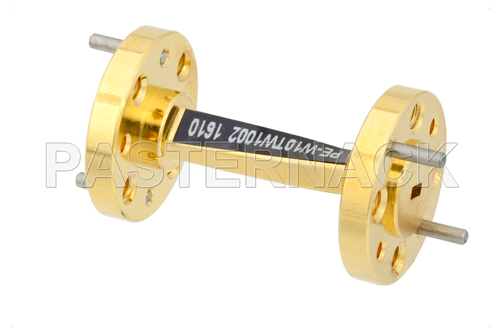

WR-10 45 Degree Left-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz   PE-W10TW1002

WR-10

75 - 110

Brass - Gold

0.750

1.100

Left-hand

45

UG-387/U-Mod
  • descrWR-10 45 Degree Left-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 45 Degree Left-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 45 Degree Left-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz

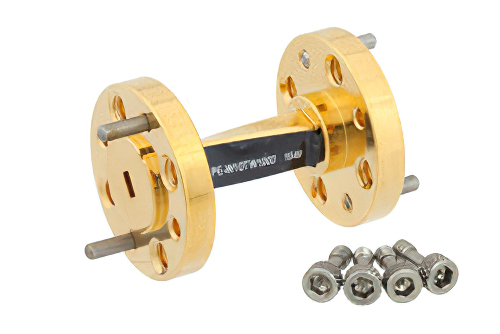

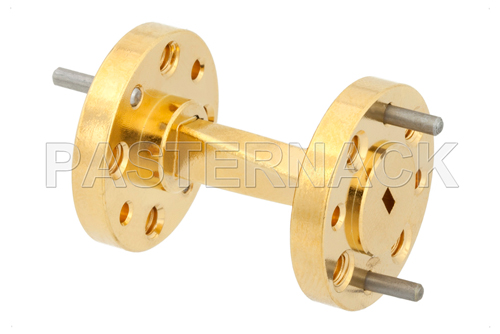

WR-10 45 Degree Right-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz   PE-W10TW1003

WR-10

75 - 110

Brass - Gold

0.750

1.100

Right-hand

45

UG-387/U-Mod
  • descrWR-10 45 Degree Right-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 45 Degree Right-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz
  • descrWR-10 45 Degree Right-hand Waveguide Twist With a UG-387/U-Mod Flange Operating From 75 GHz to 110 GHz

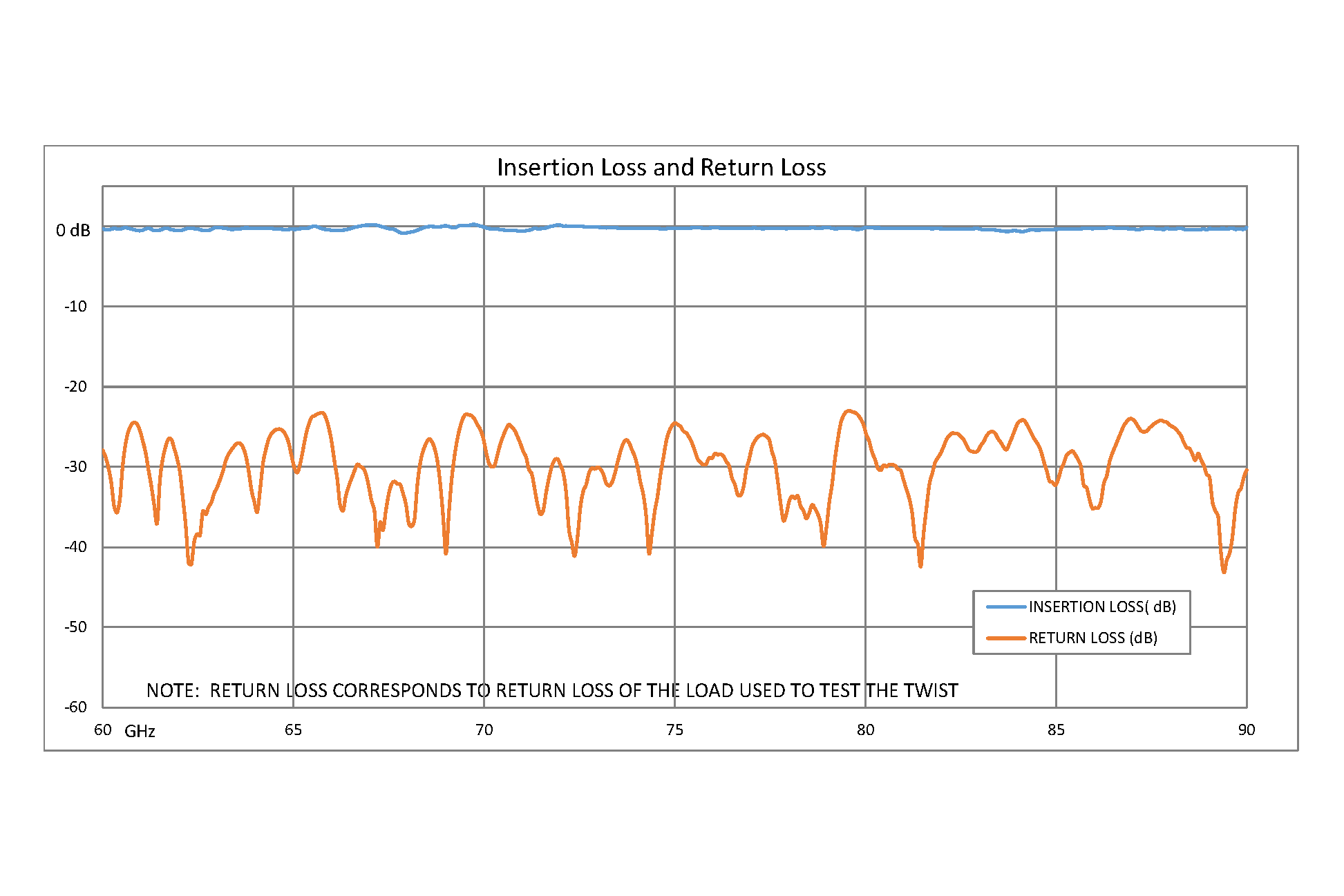

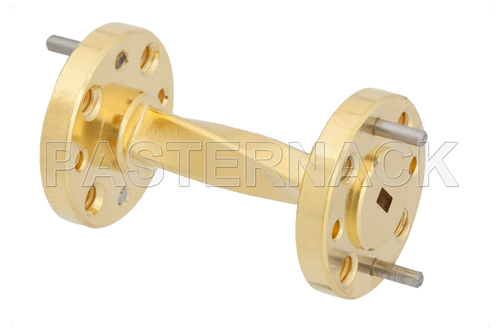

WR-12 90 Degree Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz   PE-W12TW1001

WR-12

60 - 90

Brass - Gold

1.000

1.120

90

UG-387/U
  • descrWR-12 90 Degree Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 90 Degree Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 90 Degree Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz

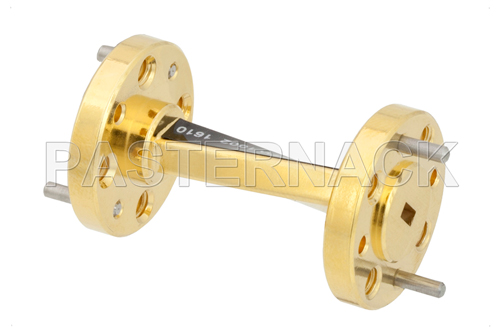

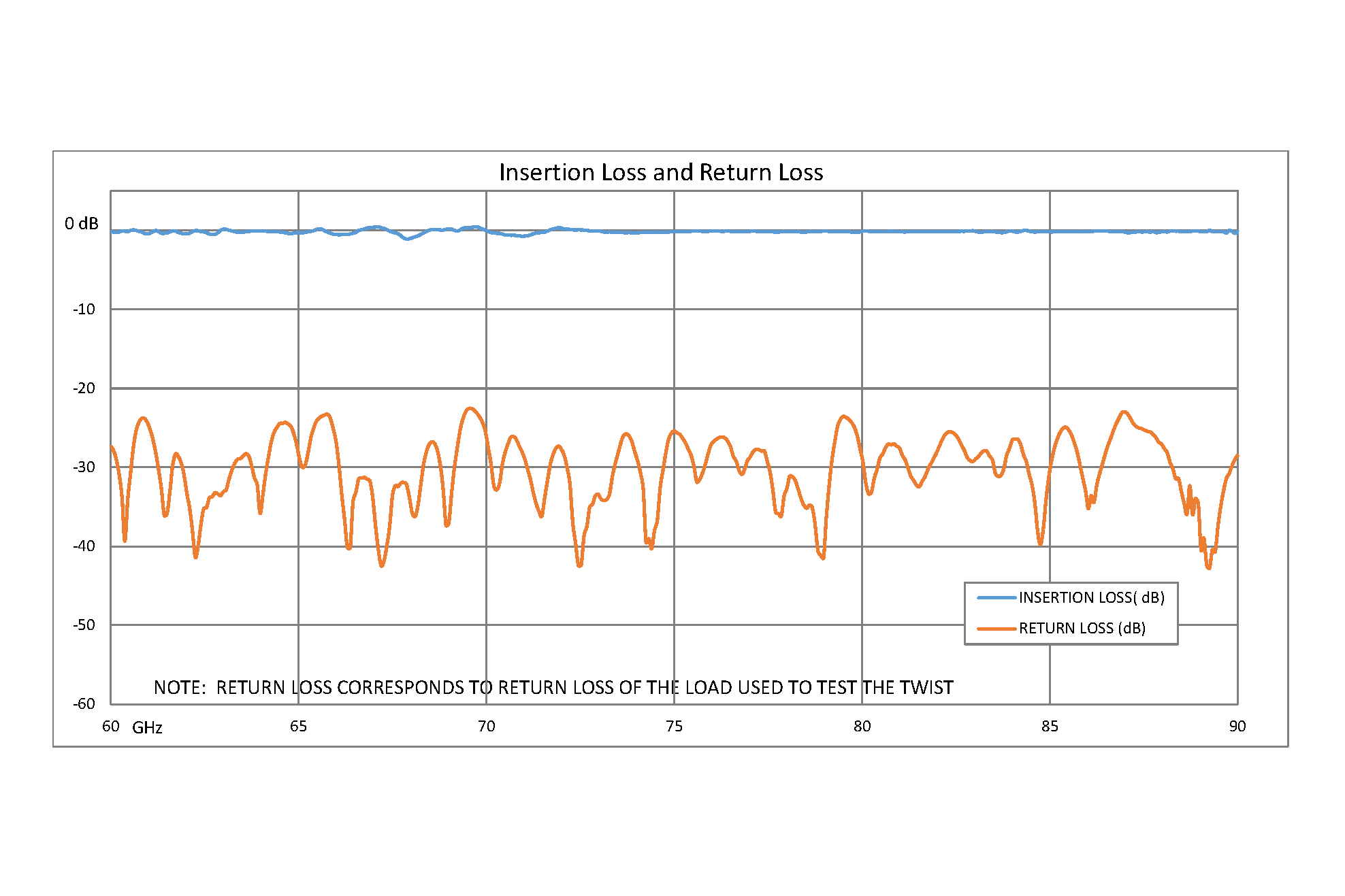

WR-12 45 Degree Left-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz   PE-W12TW1002

WR-12

60 - 90

Brass - Gold

1.100

1.160

Left-hand

45

UG-387/U
  • descrWR-12 45 Degree Left-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 45 Degree Left-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 45 Degree Left-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz

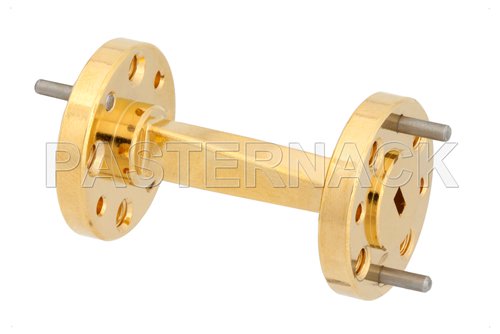

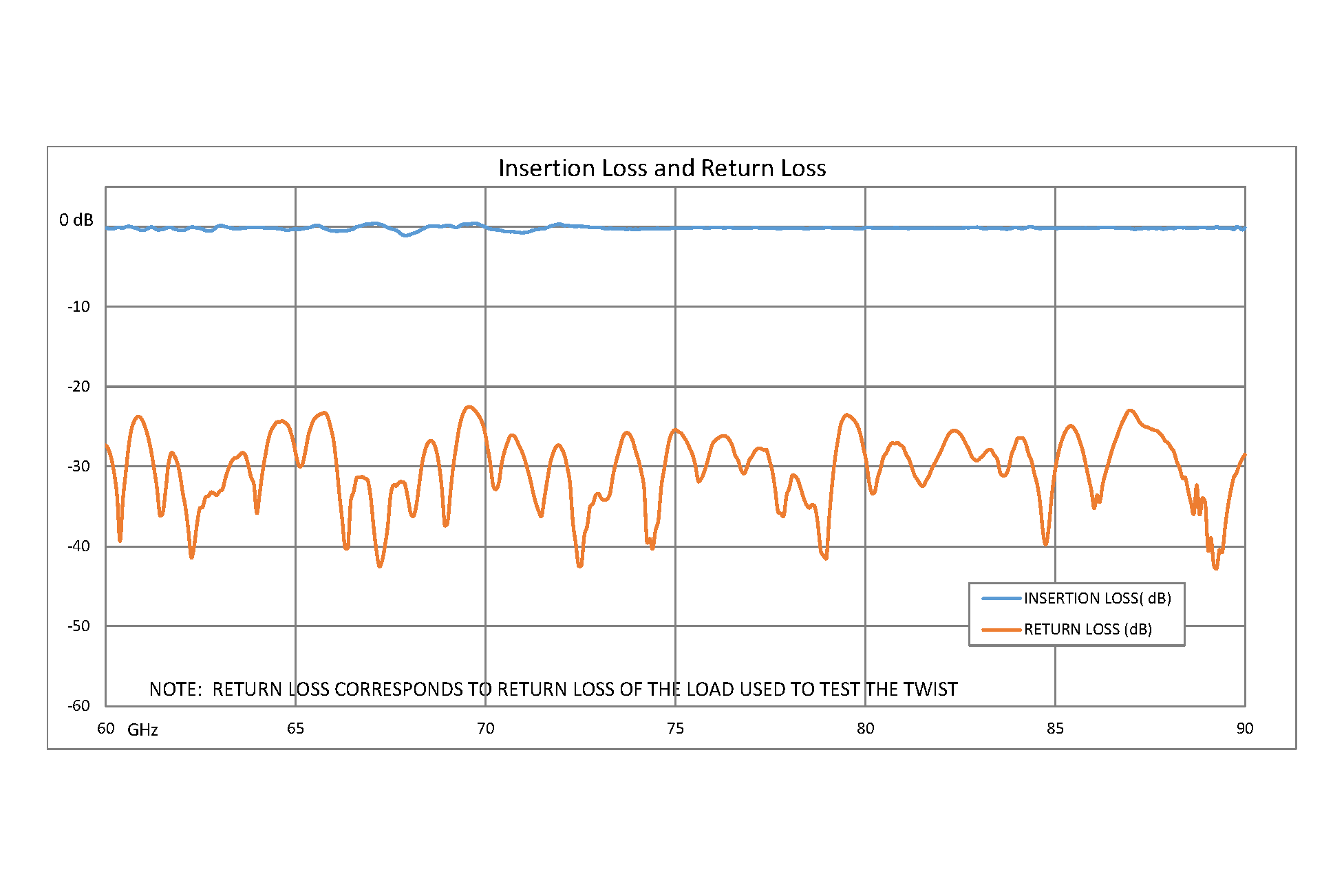

WR-12 45 Degree Right-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz   PE-W12TW1003

WR-12

60 - 90

Brass - Gold

1.100

1.160

Right-hand

45

UG-387/U
  • descrWR-12 45 Degree Right-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 45 Degree Right-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz
  • descrWR-12 45 Degree Right-hand Waveguide Twist With a UG-387/U Flange Operating From 60 GHz to 90 GHz

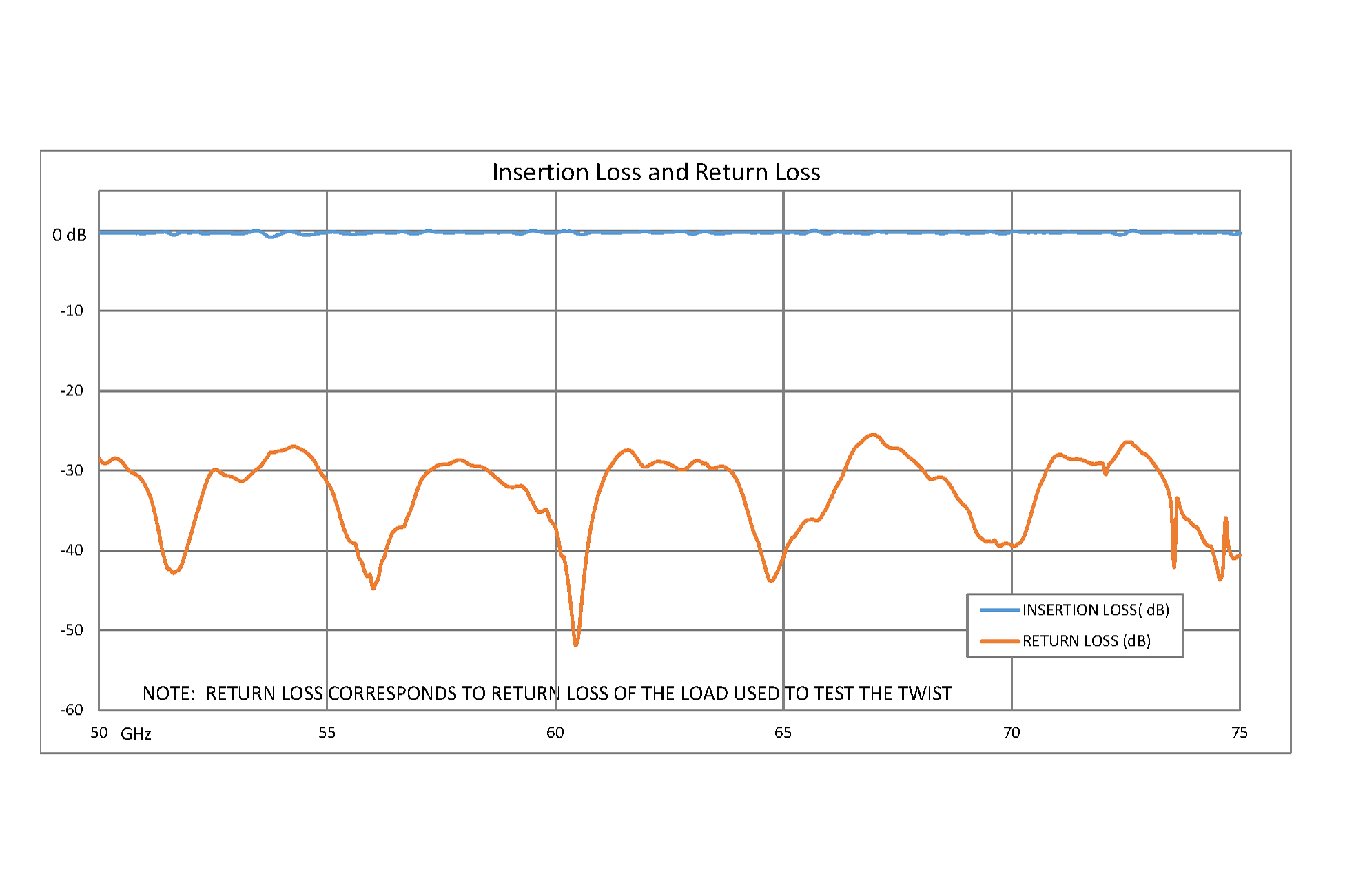

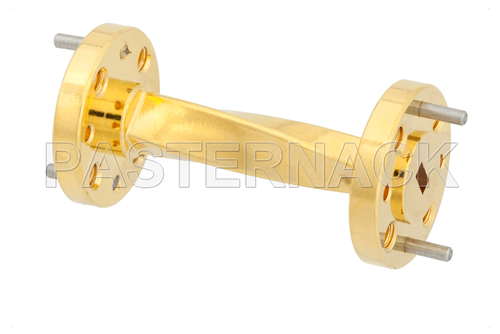

WR-15 90 Degree Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz   PE-W15TW1001

WR-15

50 - 75

Brass - Gold

1.000

1.110

90

UG-385/U
  • descrWR-15 90 Degree Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 90 Degree Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 90 Degree Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz

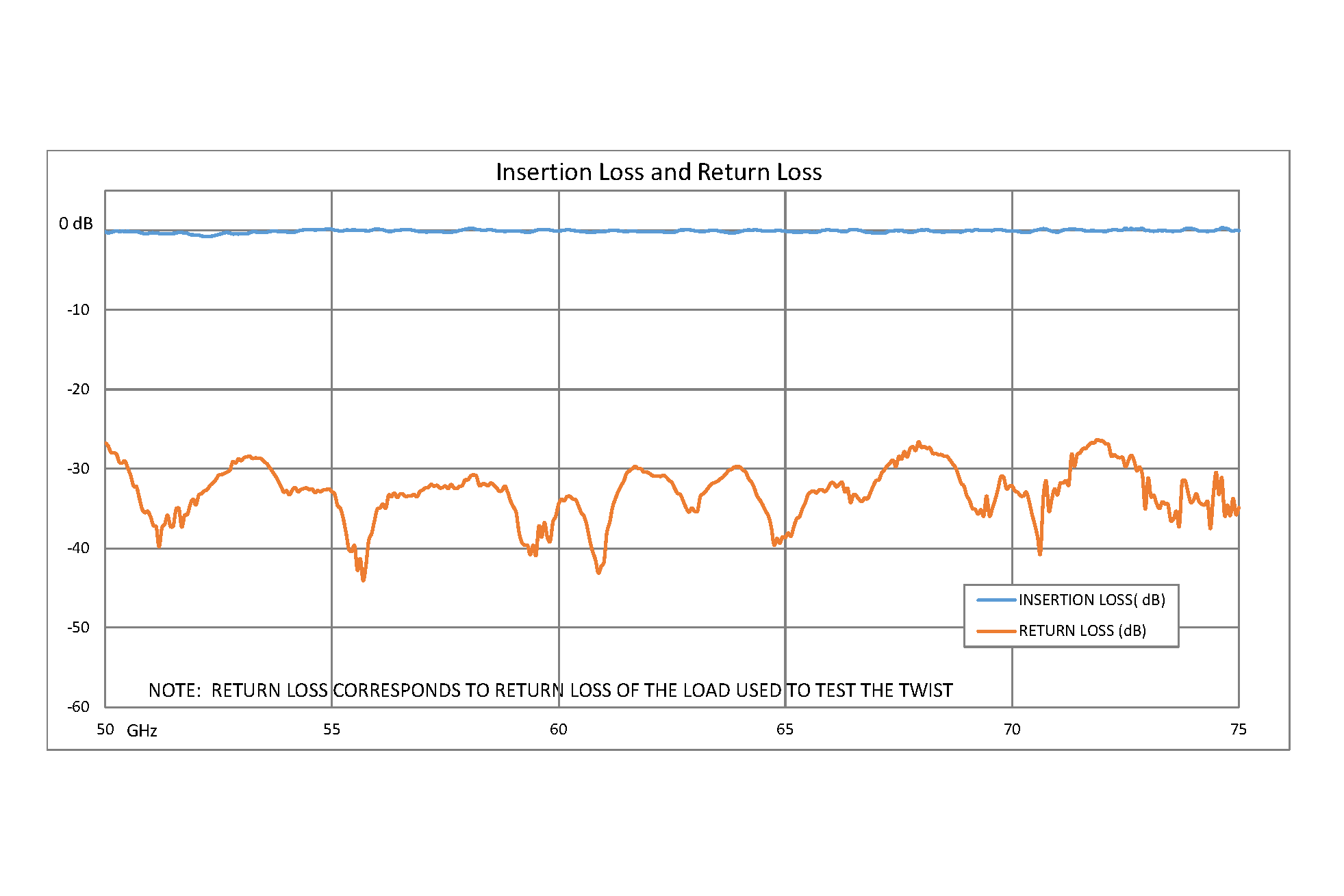

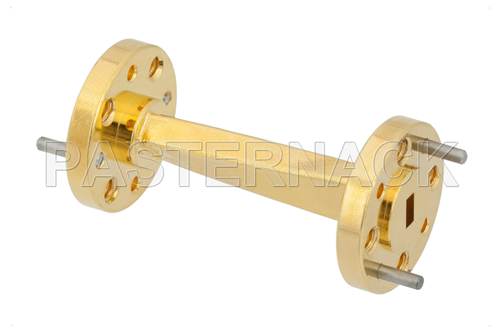

WR-15 45 Degree Left-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz   PE-W15TW1002

WR-15

50 - 75

Brass - Gold

0.800

1.110

Left-hand

45

UG-385/U
  • descrWR-15 45 Degree Left-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 45 Degree Left-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 45 Degree Left-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz

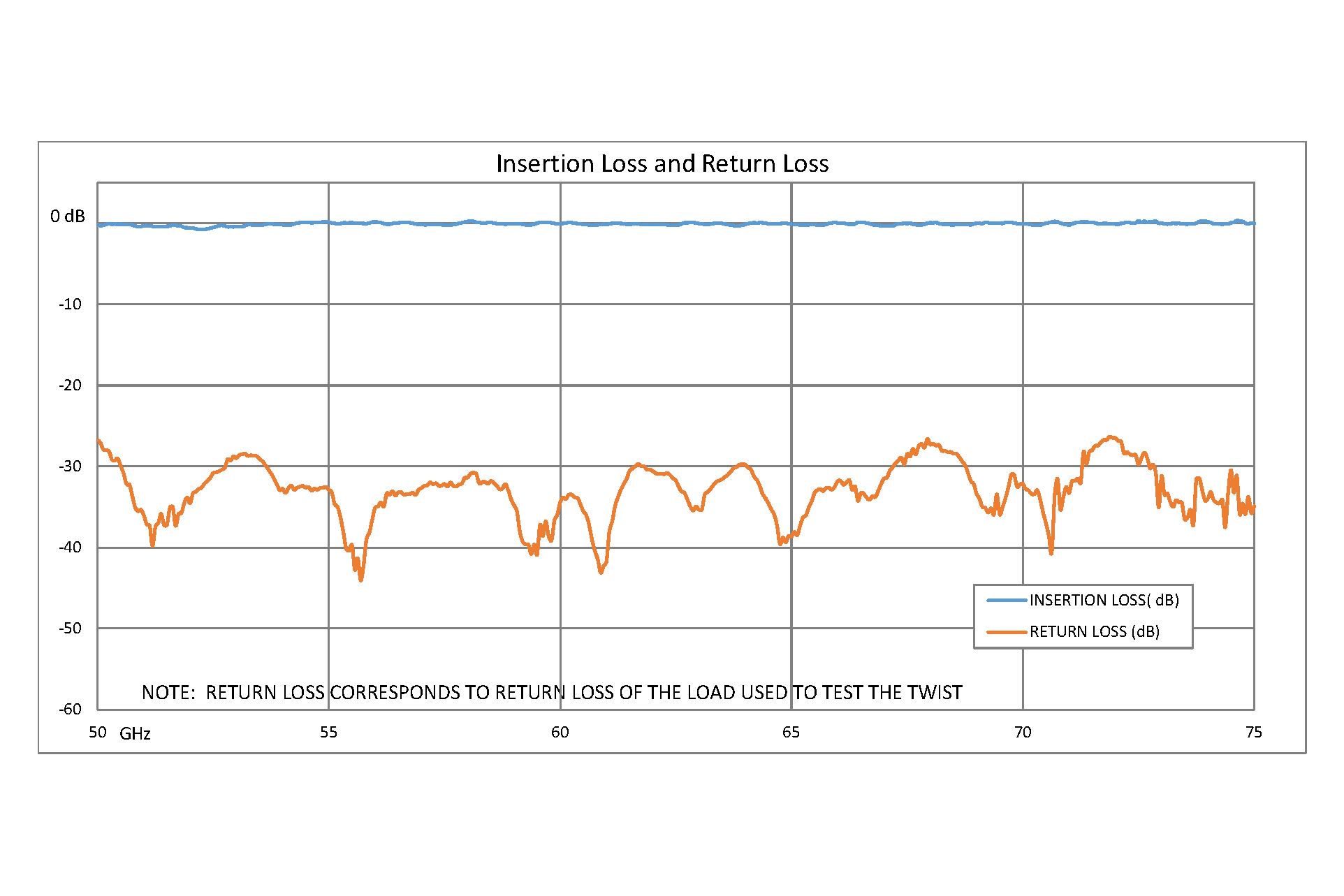

WR-15 45 Degree Right-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz   PE-W15TW1003

WR-15

50 - 75

Brass - Gold

0.800

1.110

Right-hand

45

UG-385/U
  • descrWR-15 45 Degree Right-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 45 Degree Right-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz
  • descrWR-15 45 Degree Right-hand Waveguide Twist With a UG-385/U Flange Operating From 50 GHz to 75 GHz

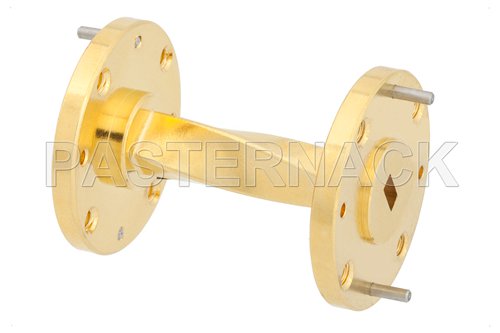

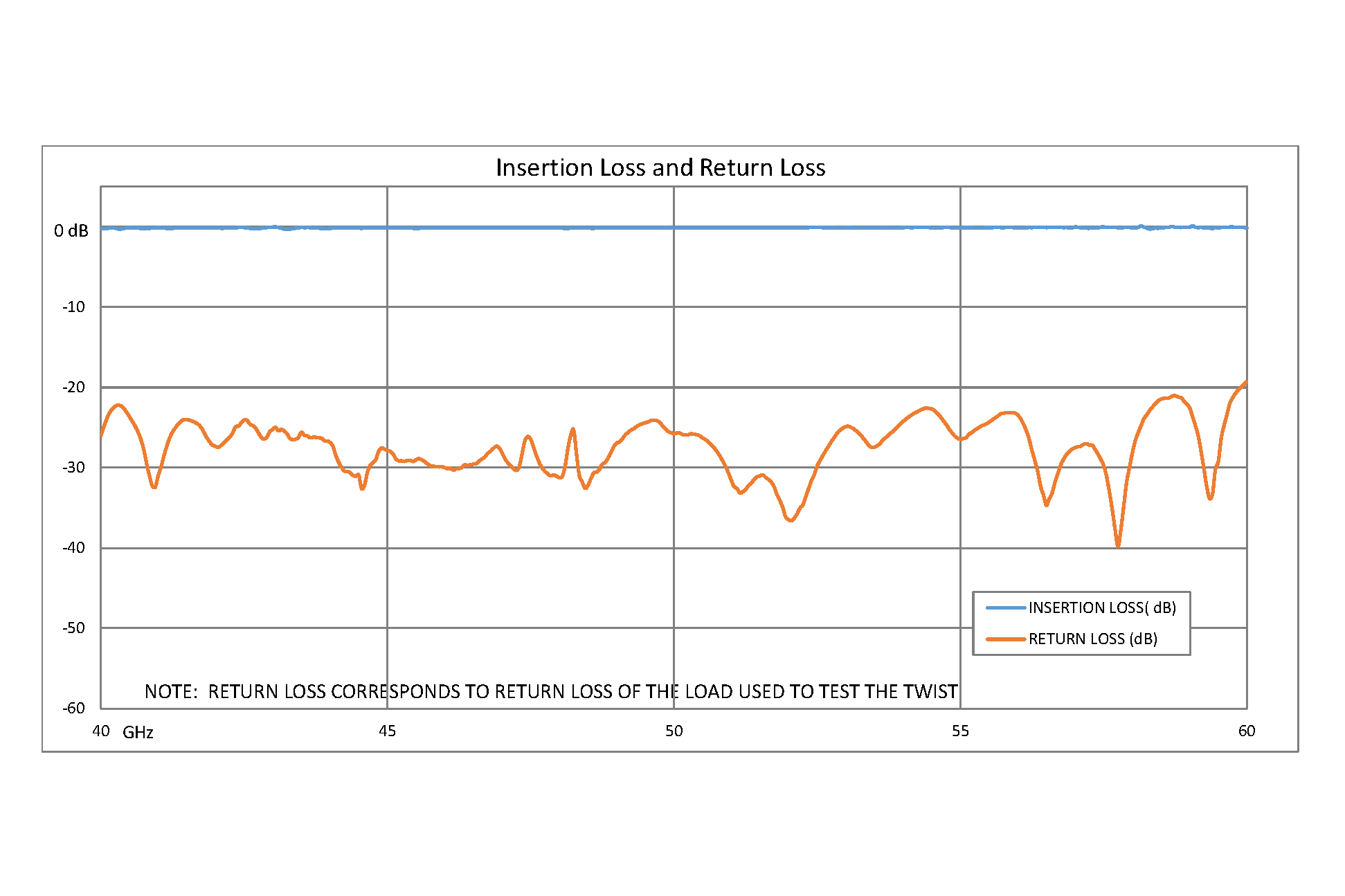

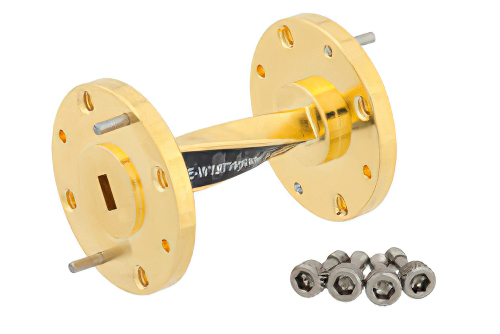

WR-19 90 Degree Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz   PE-W19TW1001

WR-19

40 - 60

Brass - Gold

0.500

1.220

90

UG-383/U-Mod
  • descrWR-19 90 Degree Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 90 Degree Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 90 Degree Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz

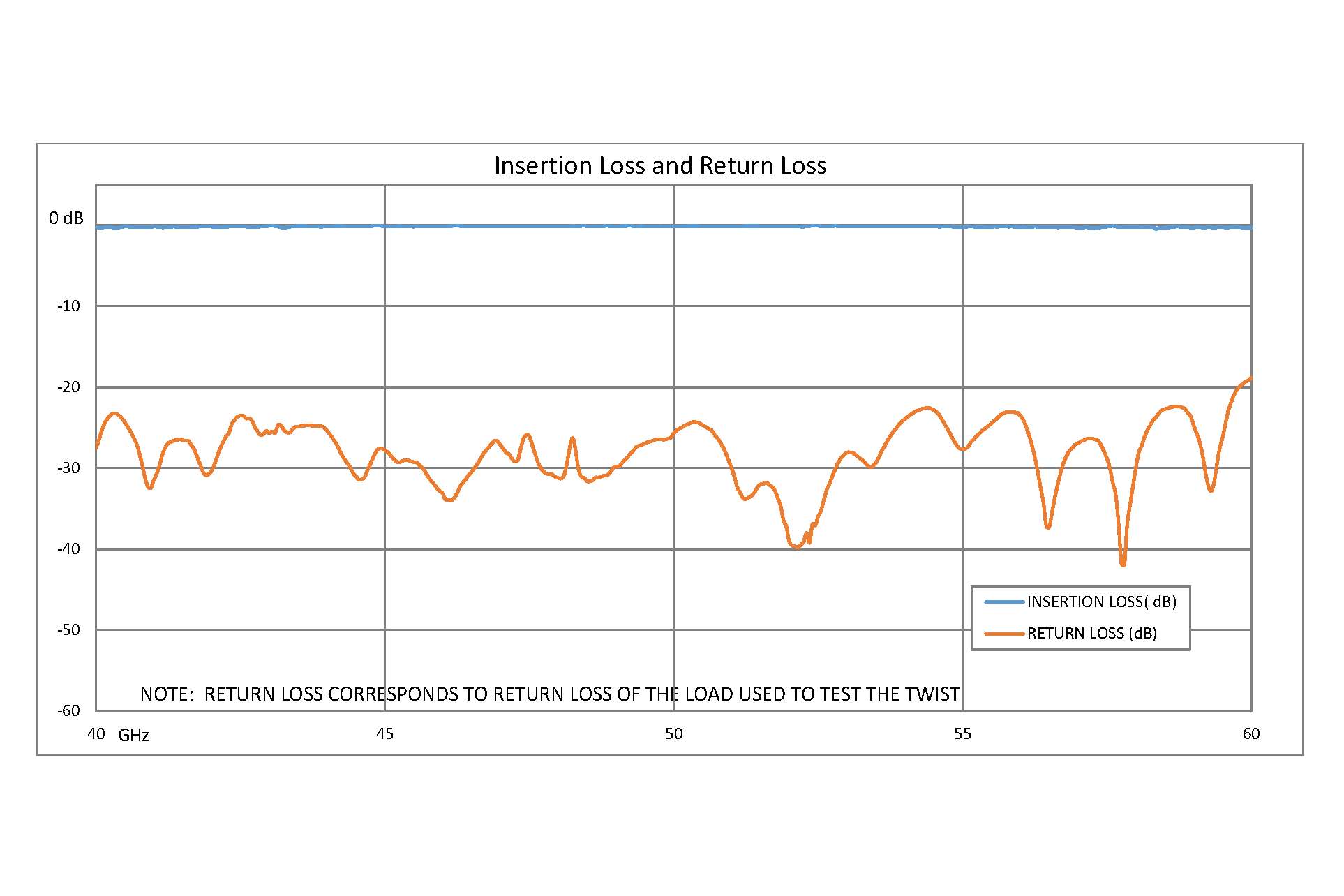

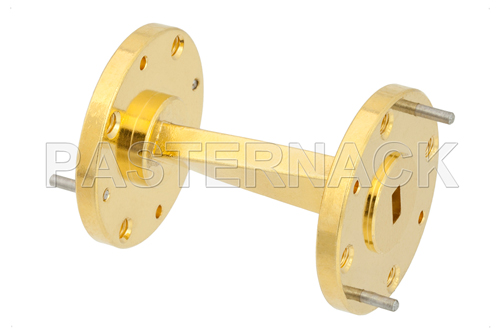

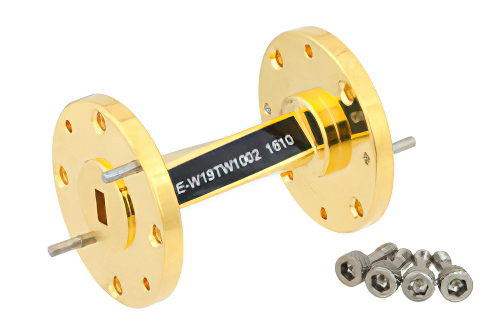

WR-19 45 Degree Left-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz   PE-W19TW1002

WR-19

40 - 60

Brass - Gold

0.500

1.250

Left-hand

45

UG-383/U-Mod
  • descrWR-19 45 Degree Left-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 45 Degree Left-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 45 Degree Left-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz

WR-19 45 Degree Right-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz   PE-W19TW1003

WR-19

40 - 60

Brass - Gold

0.500

1.250

Right-hand

45

UG-383/U-Mod
  • descrWR-19 45 Degree Right-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 45 Degree Right-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz
  • descrWR-19 45 Degree Right-hand Waveguide Twist With a UG-383/U-Mod Flange Operating From 40 GHz to 60 GHz

WR-22 90 Degree Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz   PE-W22TW1001

WR-22

33 - 50

Brass - Gold

0.500

1.020

90

UG-383/U
  • descrWR-22 90 Degree Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 90 Degree Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 90 Degree Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz

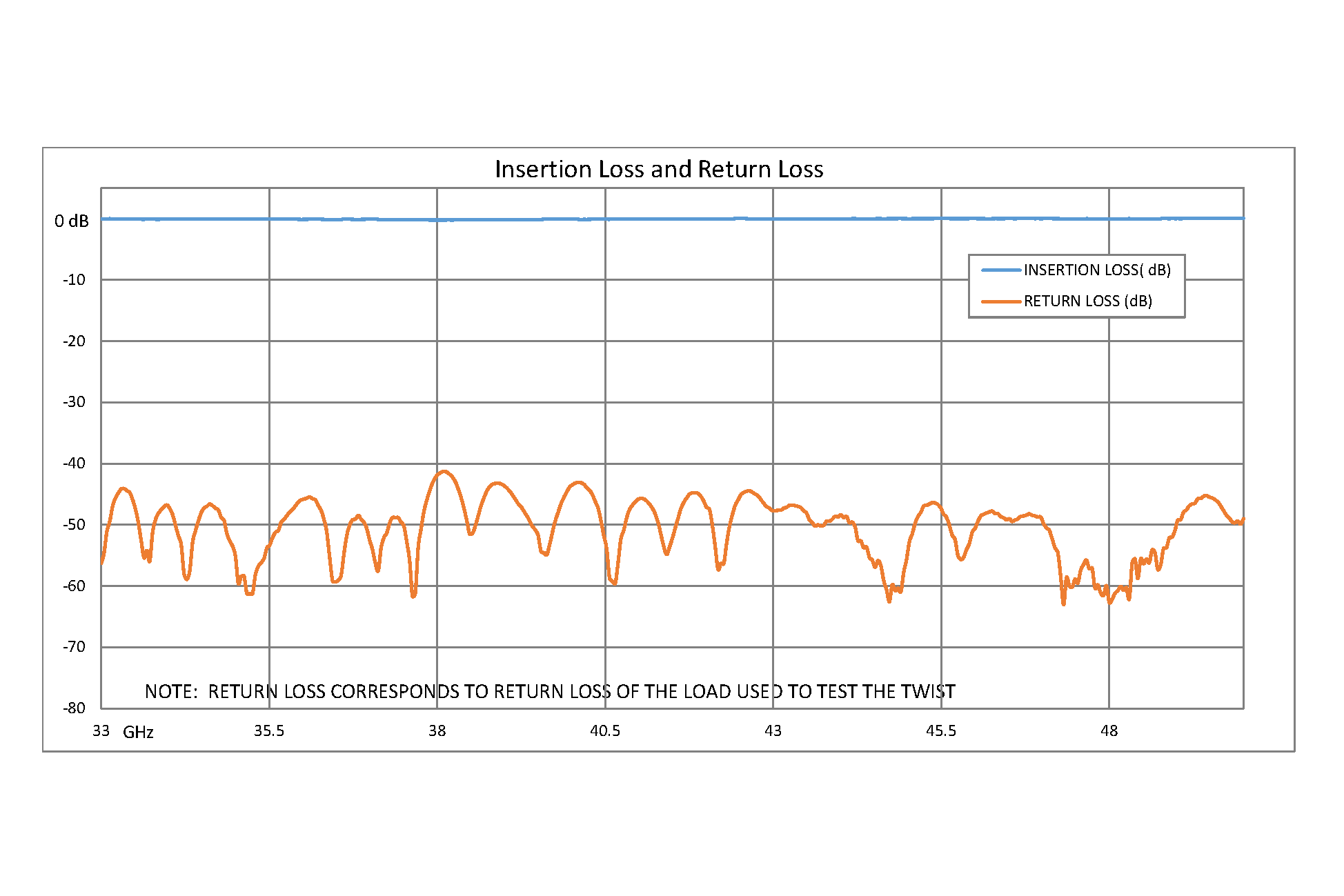

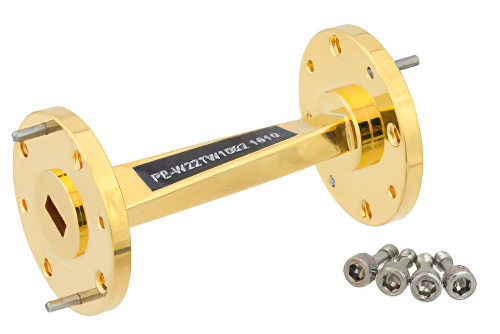

WR-22 45 Degree Left-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz   PE-W22TW1002

WR-22

33 - 50

Brass - Gold

0.500

1.020

Left-hand

45

UG-383/U
  • descrWR-22 45 Degree Left-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 45 Degree Left-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 45 Degree Left-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz

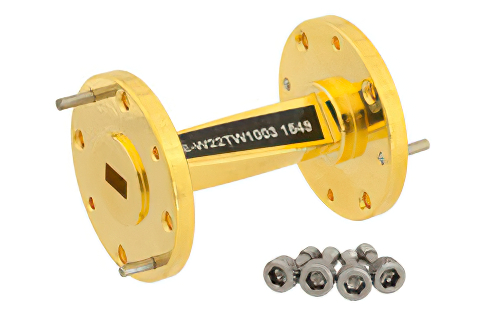

WR-22 45 Degree Right-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz   PE-W22TW1003

WR-22

33 - 50

Brass - Gold

0.500

1.020

Right-hand

45

UG-383/U
  • descrWR-22 45 Degree Right-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 45 Degree Right-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz
  • descrWR-22 45 Degree Right-hand Waveguide Twist With a UG-383/U Flange Operating From 33 GHz to 50 GHz

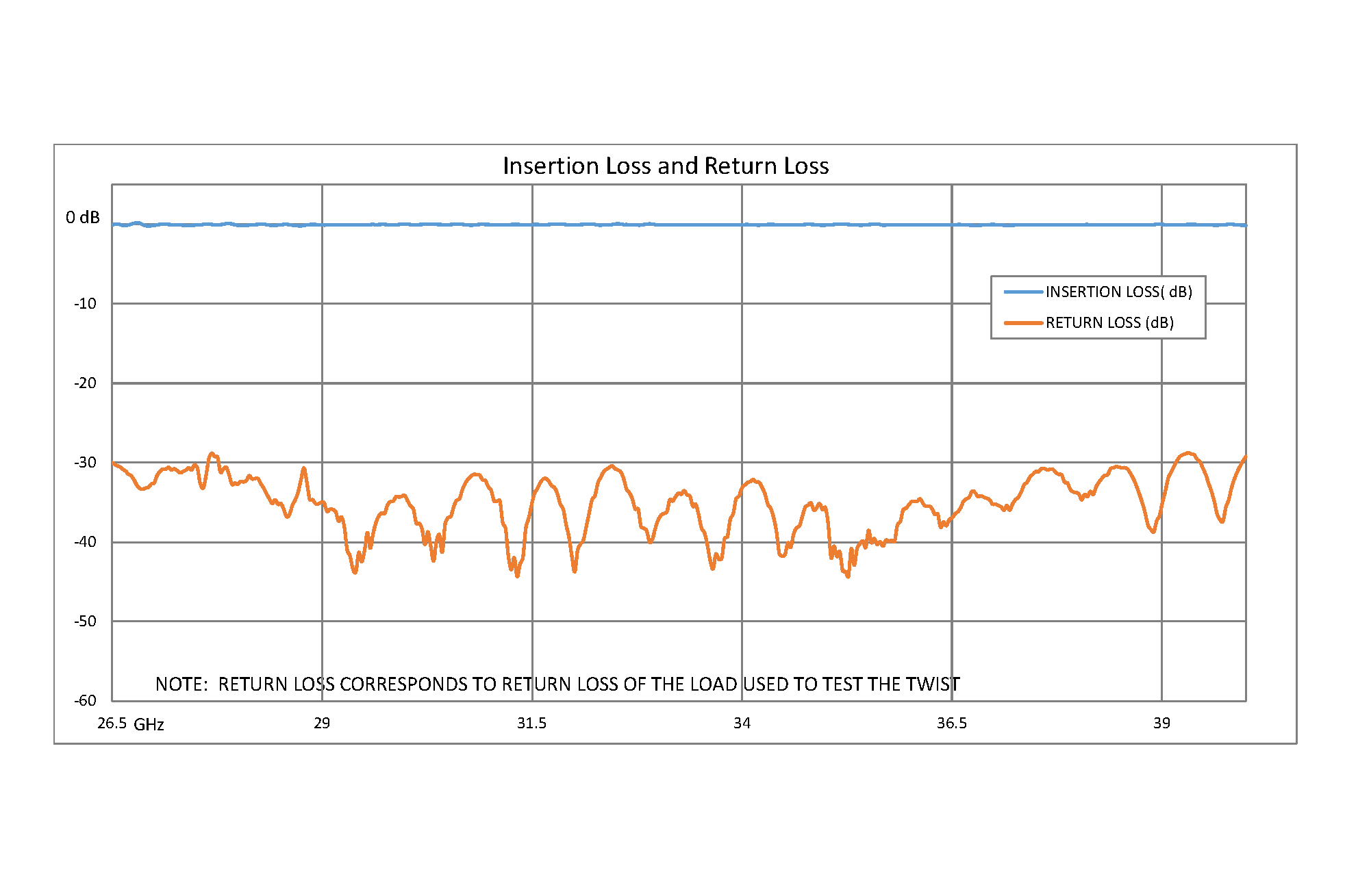

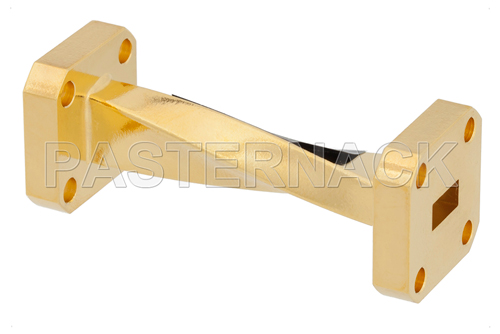

WR-28 90 Degree Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz   PE-W28TW1001

WR-28

26.5 - 40

Brass - Gold

0.500

1.070

90

UG-599/U
  • descrWR-28 90 Degree Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 90 Degree Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 90 Degree Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz

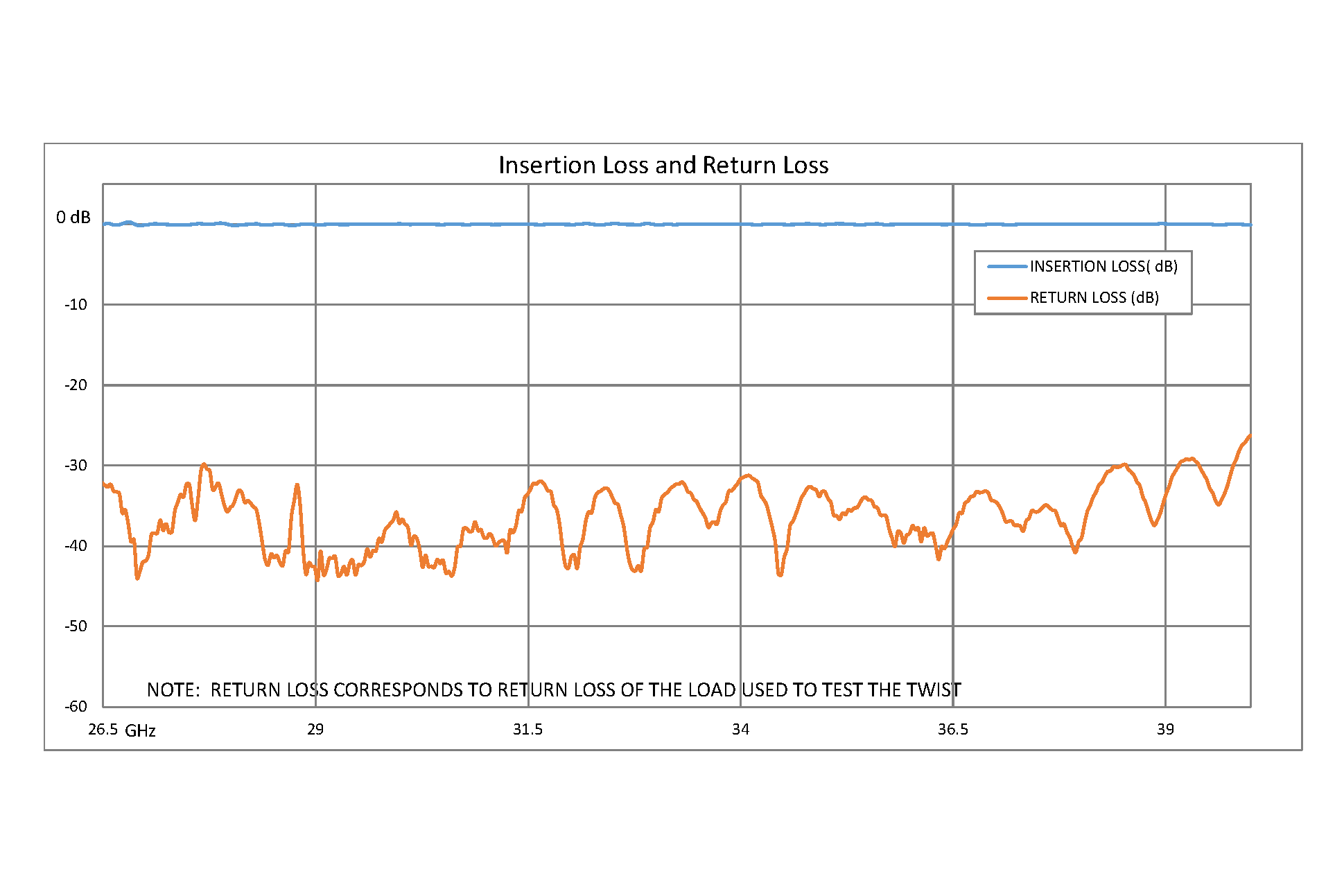

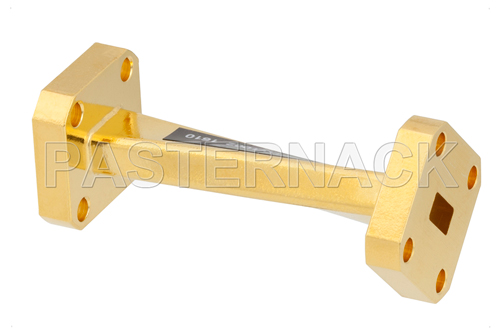

WR-28 45 Degree Left-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz   PE-W28TW1002

WR-28

26.5 - 40

Brass - Gold

0.200

1.090

Left-hand

45

UG-599/U
  • descrWR-28 45 Degree Left-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 45 Degree Left-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 45 Degree Left-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz

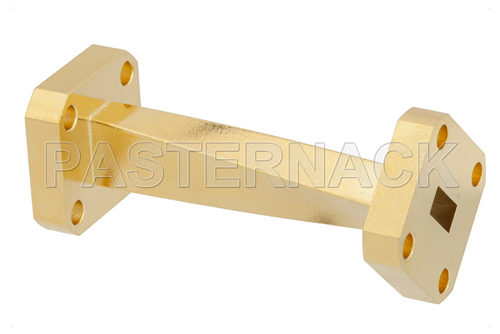

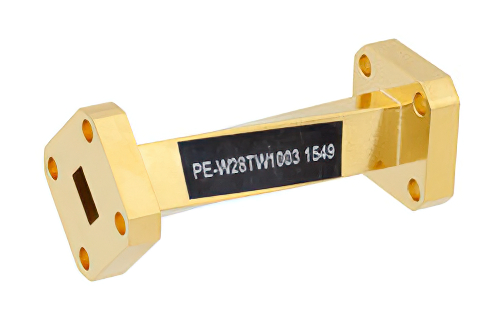

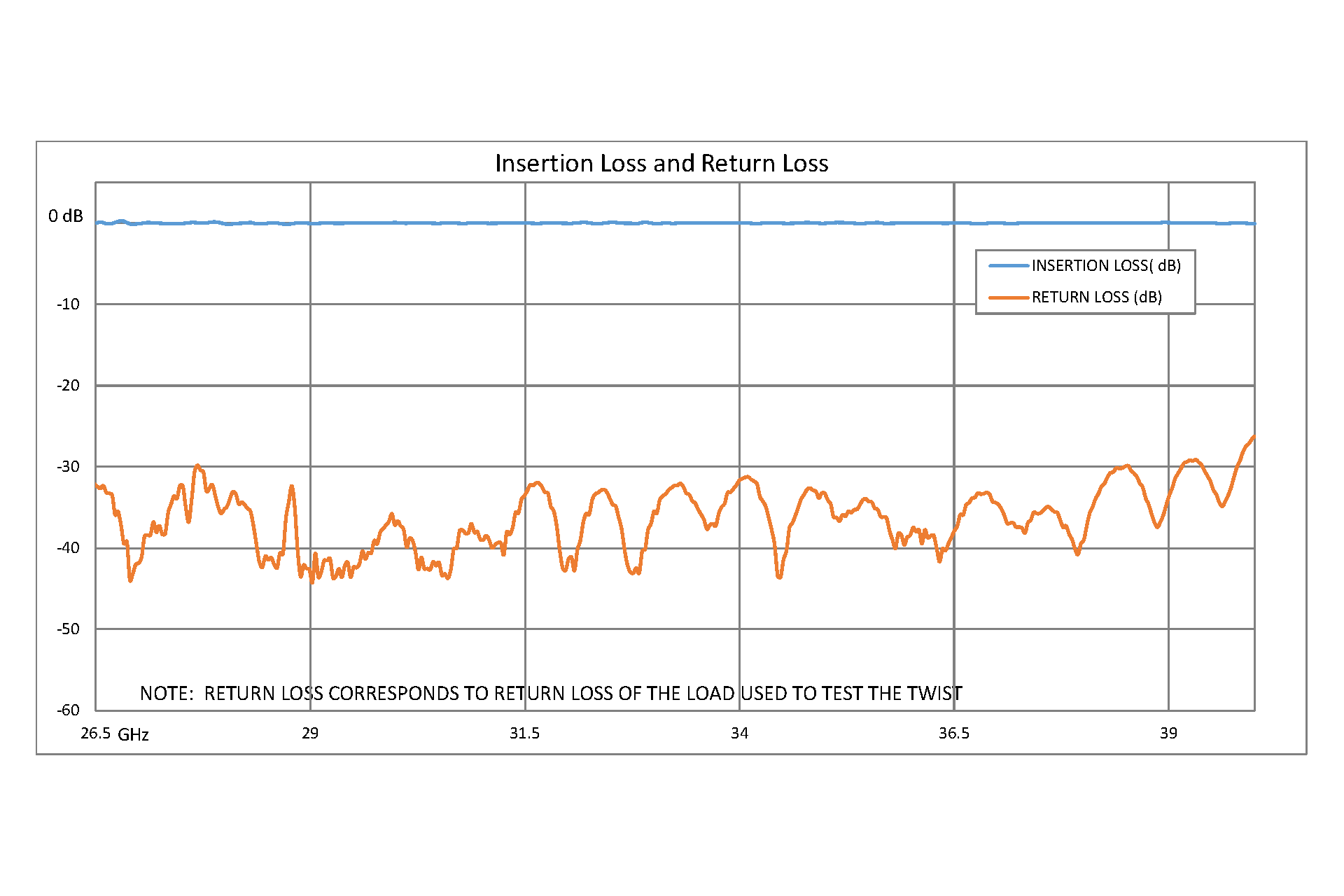

WR-28 45 Degree Right-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz   PE-W28TW1003

WR-28

26.5 - 40

Brass - Gold

0.200

1.090

Right-hand

45

UG-599/U
  • descrWR-28 45 Degree Right-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 45 Degree Right-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz
  • descrWR-28 45 Degree Right-hand Waveguide Twist With a UG-599/U Flange Operating From 26.5 GHz to 40 GHz

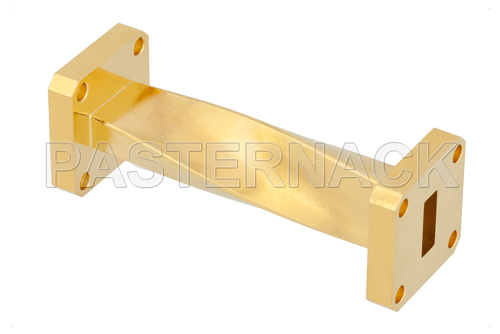

WR-42 90 Degree Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz   PE-W42TW1001

WR-42

18 - 26.5

Brass - Gold

0.500

1.070

90

UG-595/U
  • descrWR-42 90 Degree Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 90 Degree Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 90 Degree Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz

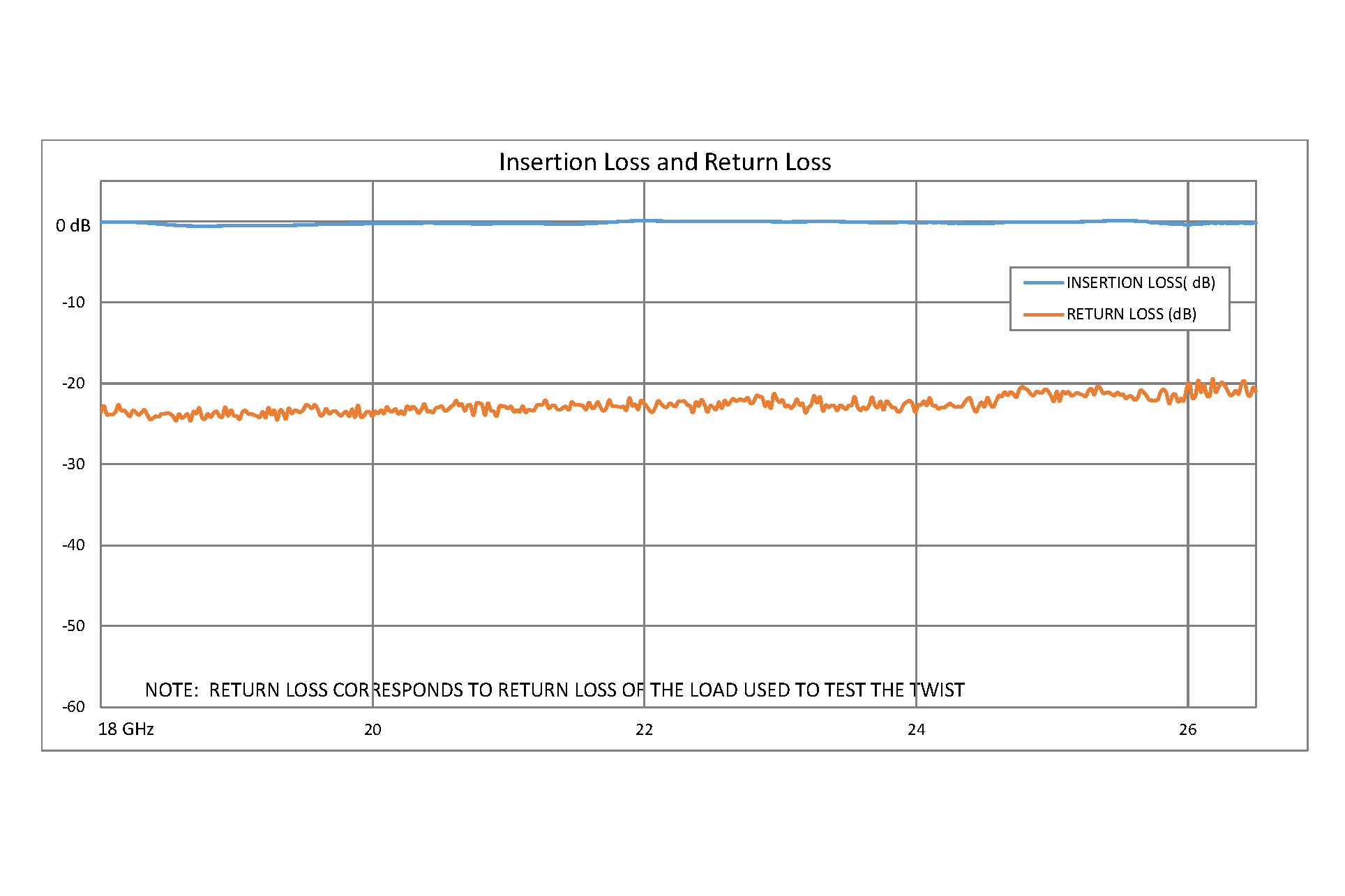

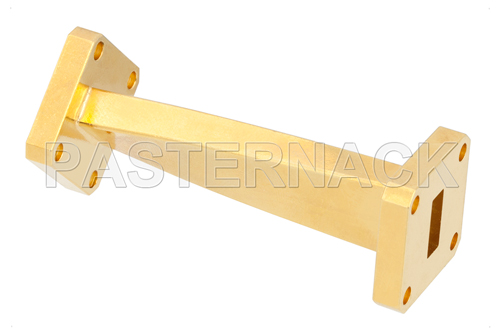

WR-42 45 Degree Left-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz   PE-W42TW1002

WR-42

18 - 26.5

Brass - Gold

0.750

1.250

Left-hand

45

UG-595/U
  • descrWR-42 45 Degree Left-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 45 Degree Left-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 45 Degree Left-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz

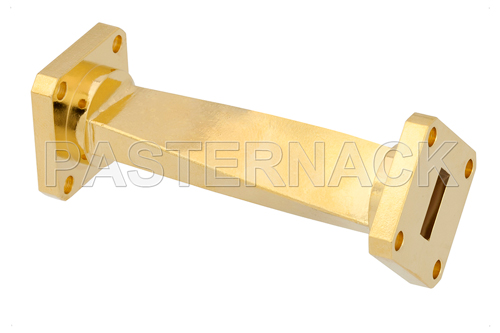

WR-42 45 Degree Right-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz   PE-W42TW1003

WR-42

18 - 26.5

Brass - Gold

0.750

1.250

Right-hand

45

UG-595/U
  • descrWR-42 45 Degree Right-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 45 Degree Right-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz
  • descrWR-42 45 Degree Right-hand Waveguide Twist With a UG-595/U Flange Operating From 18 GHz to 26.5 GHz


Precision Waveguide Twist Series

Our precision waveguide twist series operates from 18 to 110 GHz. These waveguide twists operate across seven frequency bands with waveguide sizes ranging from WR-42 (18 GHz) to WR-10 (110 GHz). This portfolio of waveguide twist components boast gold plated brass construction that offers excellent electrical performance.

Waveguide twist VSWR is as low as 1.02:1 and insertion loss as low as 0.2 dB. Both 45° and 90° waveguide twists are available from stock, with the 45° versions being available in both right hand and left hand twist configurations. All of our waveguide twists are in-stock and ready to ship today!
