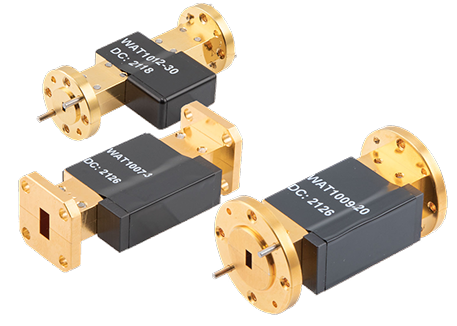

Waveguide Fixed Attenuators
- Waveguide size from WR-10 to WR-28
- Operating frequency range up to 100GHz
- Maximum power rating up to 5W
- VSWR performance as low as 1.15:1
- Attenuation levels from 3dB to 30dB
- UG style cover flanges
All Available for Same-Day Shipping!
Part No.
& Additional
Views
Waveguide
Size
Frequency
Range (GHz)
Max Power
(W)
VSWR
(Max)
Attenuation
Level
(dB)
Flange
Type
 |
PEWAT1007-3 | WR-28 |
26.5 to 40 |
5 |
1.15:1 |
3 |
UG-599/U |
|||
|
|
||||||||||
 |
PEWAT1007-6 | WR-28 |
26.5 to 40 |
5 |
1.15:1 |
6 |
UG-599/U |
|||
|
|
||||||||||
 |
PEWAT1007-10 | WR-28 |
26.5 to 40 |
5 |
1.2:1 |
10 |
UG-599/U |
|||
|
|
||||||||||
 |
PEWAT1007-20 | WR-28 |
26.5 to 40 |
5 |
1.2:1 |
20 |
UG-599/U |
|||
|
|
||||||||||
 |
PEWAT1007-30 | WR-28 |
26.5 to 40 |
5 |
1.15:1 |
30 |
UG-599/U |
|||
|
|
||||||||||
 |
PEWAT1008-3 | WR-22 |
33 to 50 |
4 |
1.15:1 |
3 |
UG-383/U |
|||
|
|
||||||||||
 |
PEWAT1008-6 | WR-22 |
33 to 50 |
4 |
1.15:1 |
6 |
UG-383/U |
|||
|
|
||||||||||
 |
PEWAT1008-10 | WR-22 |
33 to 50 |
4 |
1.15:1 |
10 |
UG-383/U |
|||
|
|
||||||||||
 |
PEWAT1008-20 | WR-22 |
33 to 50 |
4 |
1.15:1 |
20 |
UG-383/U |
|||
|
|
||||||||||
 |
PEWAT1008-30 | WR-22 |
33 to 50 |
4 |
1.15:1 |
30 |
UG-383/U |
|||
|
|
||||||||||
 |
PEWAT1009-3 | WR-19 |
40 to 60 |
3 |
1.15:1 |
3 |
UG-383/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1009-6 | WR-19 |
40 to 60 |
3 |
1.15:1 |
6 |
UG-383/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1009-10 | WR-19 |
40 to 60 |
3 |
1.15:1 |
10 |
UG-383/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1009-20 | WR-19 |
40 to 60 |
3 |
1.15:1 |
20 |
UG-383/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1009-30 | WR-19 |
40 to 60 |
3 |
1.15:1 |
30 |
UG-383/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1010-3 | WR-15 |
50 to 75 |
2 |
1.15:1 |
3 |
UG-385/U |
|||
|
|
||||||||||
 |
PEWAT1010-6 | WR-15 |
50 to 75 |
2 |
1.15:1 |
6 |
UG-385/U |
|||
|
|
||||||||||
 |
PEWAT1010-10 | WR-15 |
50 to 75 |
2 |
1.15:1 |
10 |
UG-385/U |
|||
|
|
||||||||||
 |
PEWAT1010-20 | WR-15 |
50 to 75 |
2 |
1.15:1 |
20 |
UG-385/U |
|||
|
|
||||||||||
 |
PEWAT1010-30 | WR-15 |
50 to 75 |
2 |
1.15:1 |
30 |
UG-385/U |
|||
|
|
||||||||||
 |
PEWAT1011-3 | WR-12 |
60 to 90 |
1 |
1.15:1 |
3 |
UG-387/U |
|||
|
|
||||||||||
 |
PEWAT1011-6 | WR-12 |
60 to 90 |
1 |
1.15:1 |
6 |
UG-387/U |
|||
|
|
||||||||||
 |
PEWAT1011-10 | WR-12 |
60 to 90 |
1 |
1.15:1 |
10 |
UG-387/U |
|||
|
|
||||||||||
 |
PEWAT1011-20 | WR-12 |
60 to 90 |
1 |
1.15:1 |
20 |
UG-387/U |
|||
|
|
||||||||||
 |
PEWAT1011-30 | WR-12 |
60 to 90 |
1 |
1.15:1 |
30 |
UG-387/U |
|||
|
|
||||||||||
 |
PEWAT1012-3 | WR-10 |
75 to 110 |
1 |
1.15:1 |
3 |
UG-387/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1012-6 | WR-10 |
75 to 110 |
1 |
1.15:1 |
6 |
UG-387/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1012-10 | WR-10 |
75 to 110 |
1 |
1.15:1 |
10 |
UG-387/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1012-20 | WR-10 |
75 to 110 |
1 |
1.15:1 |
20 |
UG-387/U-Mod |
|||
|
|
||||||||||
 |
PEWAT1012-30 | WR-10 |
75 to 110 |
1 |
1.15:1 |
30 |
UG-387/U-Mod |
|||
|
|
||||||||||
Waveguide Fixed Attenuators from Pasternack
Pasternack’s new waveguide fixed attenuators consist of 30 models with operating frequency range up to 110GHz. These products are available in waveguide sizes from WR-10 to WR-28 with UG style cover flanges. These waveguide fixed attenuators offer excellent RF performances to meet diverse application requirements. All of Pasternack’s waveguide attenuator products are available in-stock and same-day shipping.
