Embedded GPS Antennas
  • 12 models cover broadband frequencies ranging from 500 MHz
    to 40 GHz
  • GaAs FET Semiconductor Technology
  • High Gain: 45 dB typ
  • Varible Gain Control: 20 dB typ with 0 to +5V Control Voltage
  • Noise Figure: 3.5 dB typ
  • Output P1dB: 10 to 15 dBm typ
  • Rugged Mil Grade Aluminum Package Designs support Female SMA or 2.92mm Spark Plug Connectors
  • Designed to meet a series of environmental conditions including Altitude, Vibration, Humidity, and Shock
Variable Gain Amplifiers


Part No.

& Additional

Views

Frequency
Band (GHz)

Small Signal
Gain Typ
(dB)

Gain Control
Range Typ
(dB)

Noise Figure
Typ (dB)

P1dB Typ
(dBm)

DC Control
Voltage
(Volts)

DC Power
(Volts/mA)

Connectors

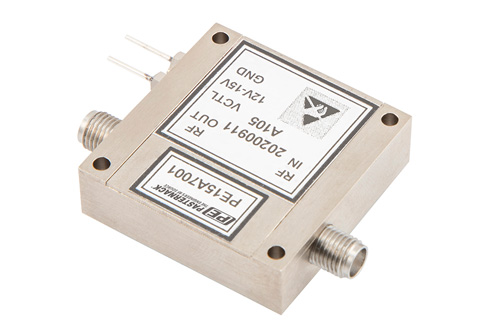

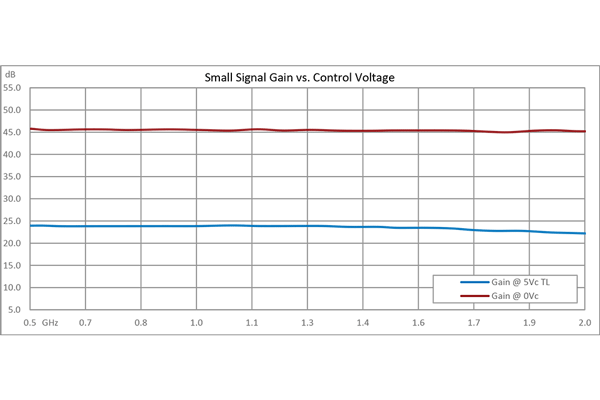

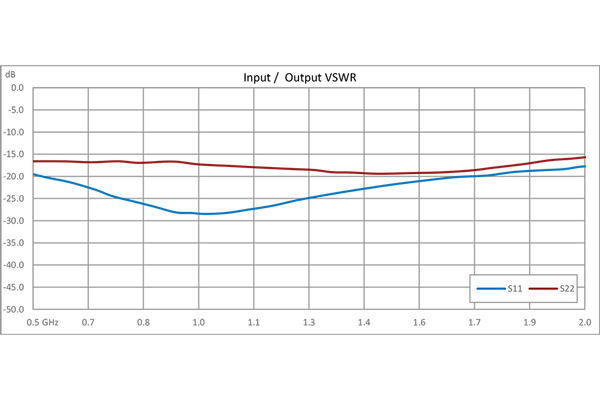

40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 2 GHz, 20 dB Gain Control, 4.5 dB NF, SMA   PE15A7001

0.5 to 2

45

20

3.5

18

0 to 5

15/250

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 2 GHz, 20 dB Gain Control, 4.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 2 GHz, 20 dB Gain Control, 4.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 2 GHz, 20 dB Gain Control, 4.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 2 GHz, 20 dB Gain Control, 4.5 dB NF, SMA

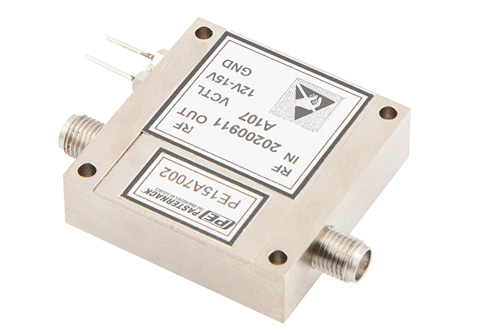

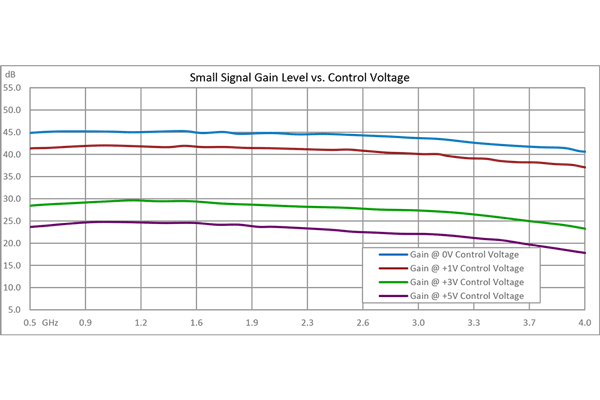

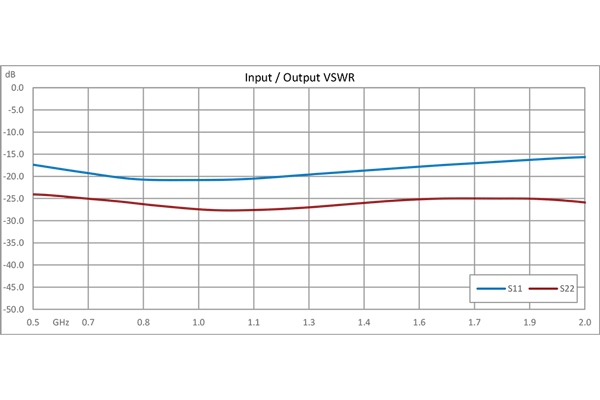

40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 4 GHz, 20 dB Gain Control, 4.75 dB NF, SMA   PE15A7002

0.5 to 4

43

20

4

18

0 to 5

15/270

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 4 GHz, 20 dB Gain Control, 4.75 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 4 GHz, 20 dB Gain Control, 4.75 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 4 GHz, 20 dB Gain Control, 4.75 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 500 MHz to 4 GHz, 20 dB Gain Control, 4.75 dB NF, SMA

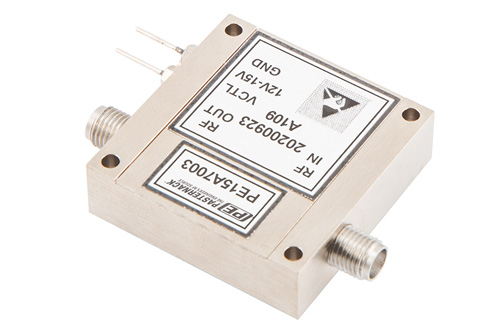

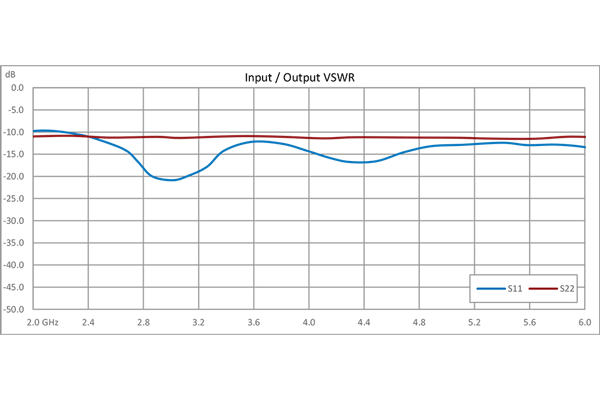

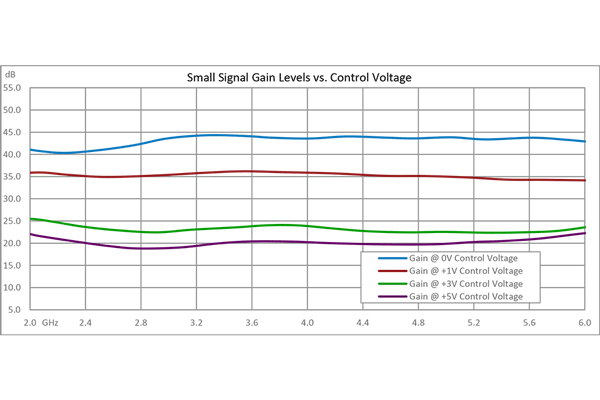

40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 6 GHz, 20 dB Gain Control, 3 dB NF, SMA   PE15A7003

2 to 6

42

20

2

16

0 to 5

15/140

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 6 GHz, 20 dB Gain Control, 3 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 6 GHz, 20 dB Gain Control, 3 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 6 GHz, 20 dB Gain Control, 3 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 6 GHz, 20 dB Gain Control, 3 dB NF, SMA

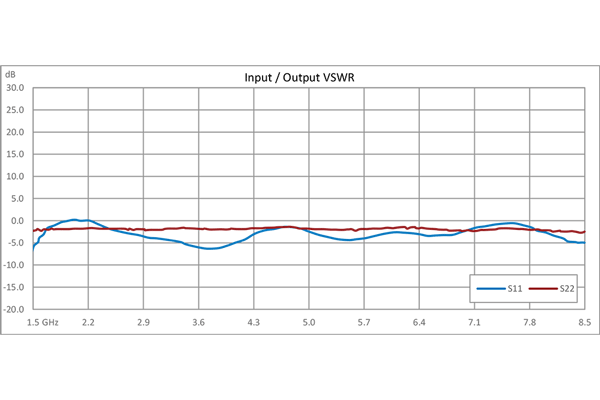

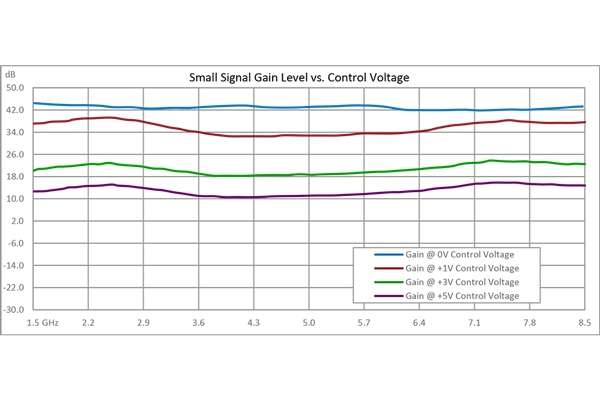

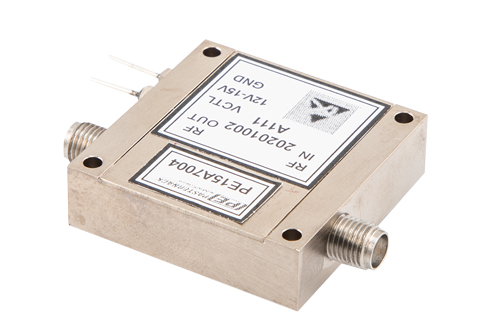

40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 8 GHz, 20 dB Gain Control, 3.5 dB NF, SMA   PE15A7004

2 to 8

43

20

2.5

15.8

0 to 5

15/140

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 8 GHz, 20 dB Gain Control, 3.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 8 GHz, 20 dB Gain Control, 3.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 8 GHz, 20 dB Gain Control, 3.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 2 GHz to 8 GHz, 20 dB Gain Control, 3.5 dB NF, SMA

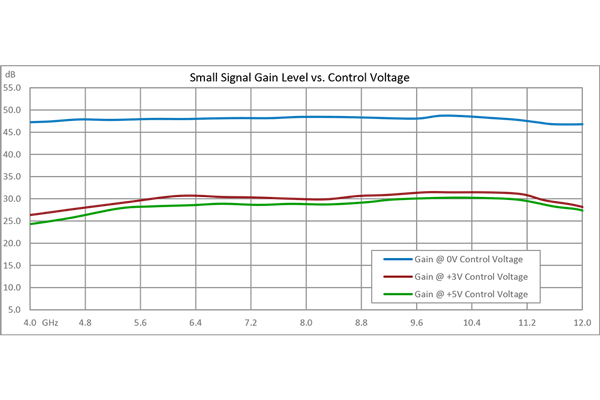

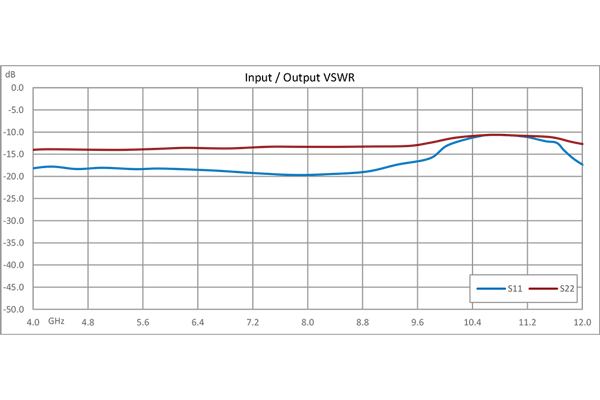

40 dB Variable Gain Amplifier, 15 dBm P1dB, 4 GHz to 12 GHz, 20dB Gain Control, 4 dB NF, SMA   PE15A7005

4 to 12

47

20

3.5

16.5

0 to 5

15/360

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 4 GHz to 12 GHz, 20dB Gain Control, 4 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 4 GHz to 12 GHz, 20dB Gain Control, 4 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 4 GHz to 12 GHz, 20dB Gain Control, 4 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 4 GHz to 12 GHz, 20dB Gain Control, 4 dB NF, SMA

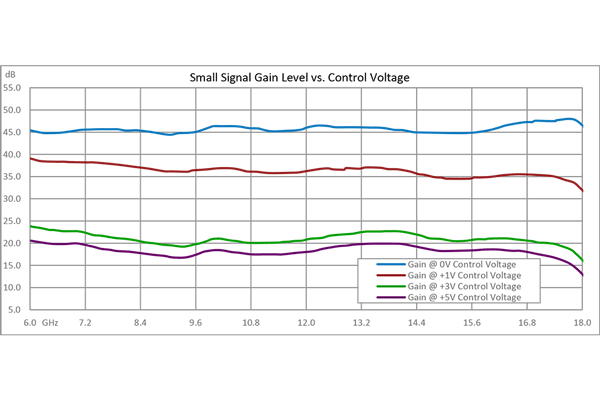

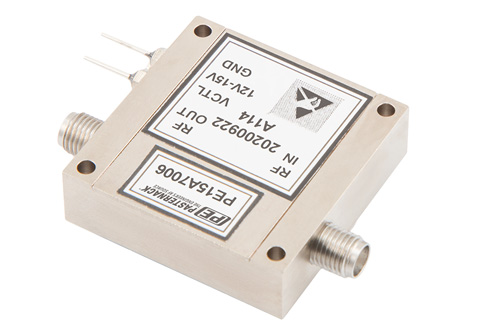

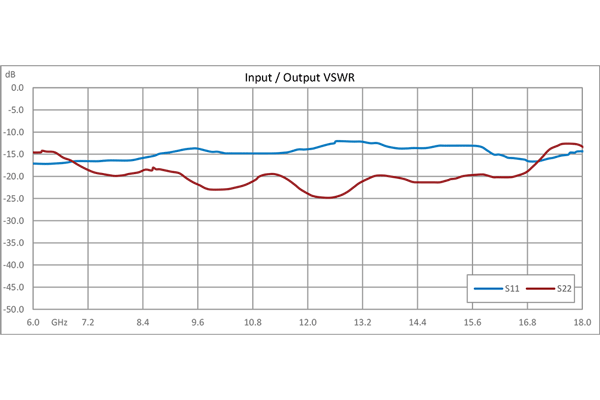

40 dB Variable Gain Amplifier, 15 dBm P1dB, 6 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA   PE15A7006

6 to 18

45

20

3

16

0 to 5

15/315

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 6 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 6 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 6 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 6 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA

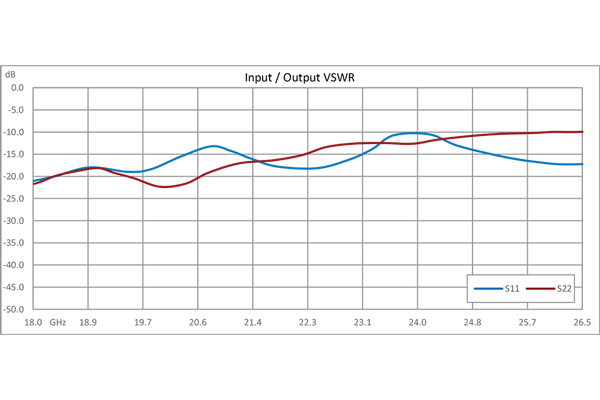

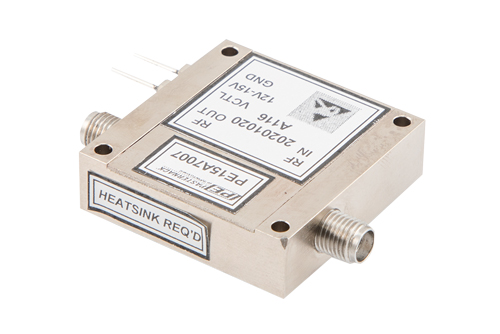

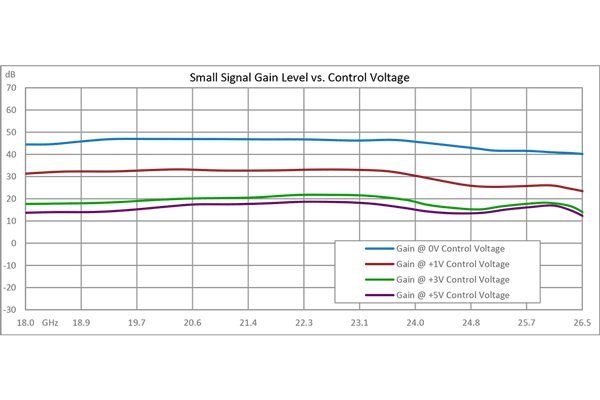

40 dB Variable Gain Amplifier, 13 dBm P1dB, 18 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA   PE15A7007

18 to 26.5

45

20

5.5

15

0 to 5

15/350

SMA Female
  • descr40 dB Variable Gain Amplifier, 13 dBm P1dB, 18 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 13 dBm P1dB, 18 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 13 dBm P1dB, 18 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 13 dBm P1dB, 18 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA

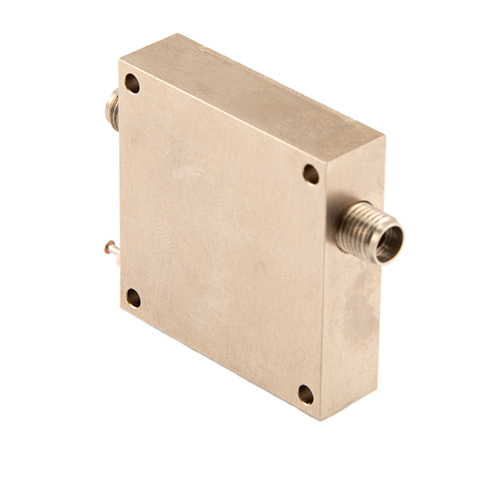

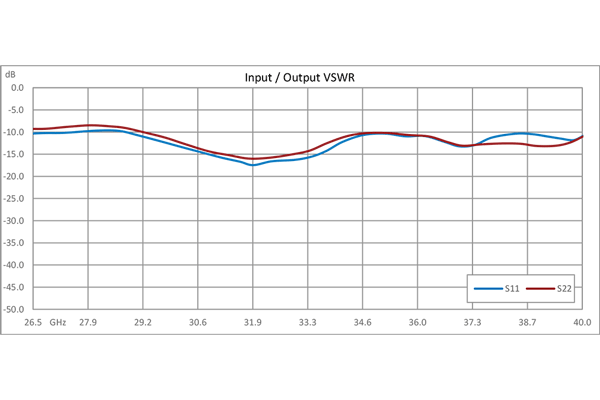

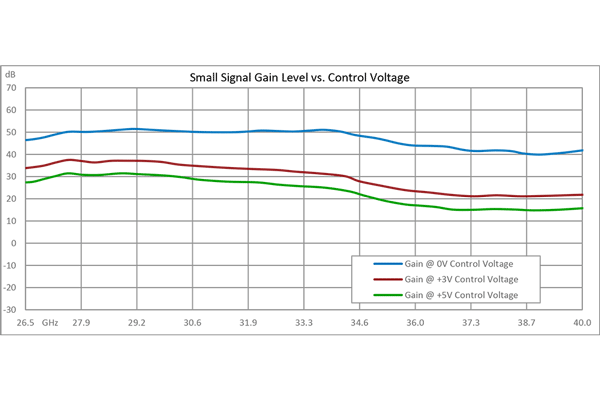

40 dB Variable Gain Amplifier, 11 dBm P1dB, 26.5 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm   PE15A7008

26.5 to 40

46

20

5

11

0 to 5

15/350

2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 26.5 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 26.5 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 26.5 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 26.5 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm

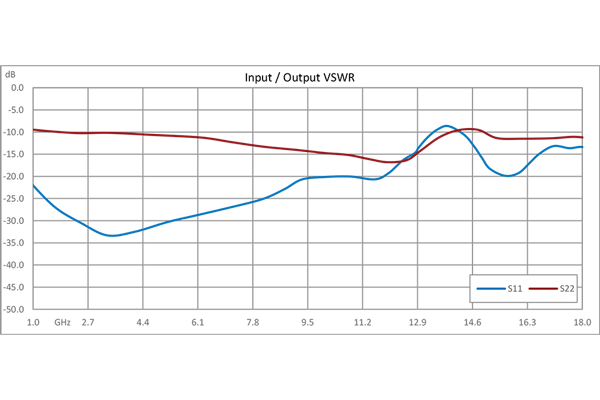

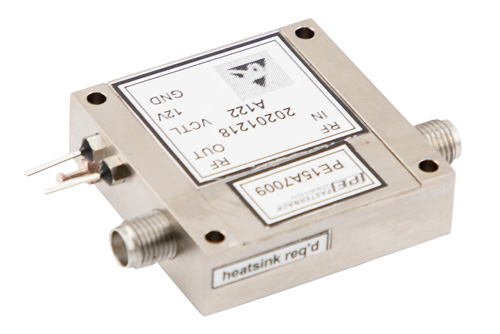

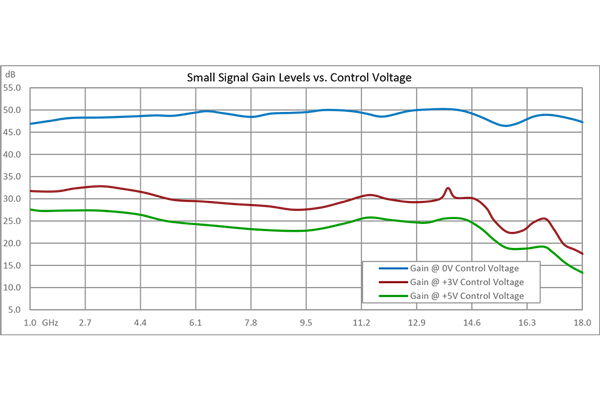

40 dB Variable Gain Amplifier, 15 dBm P1dB, 1 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA   PE15A7009

1 to 18

48

20

3.5

17

0 to 5

15/450

SMA Female
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 1 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 1 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 1 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 15 dBm P1dB, 1 GHz to 18 GHz, 20 dB Gain Control, 5 dB NF, SMA

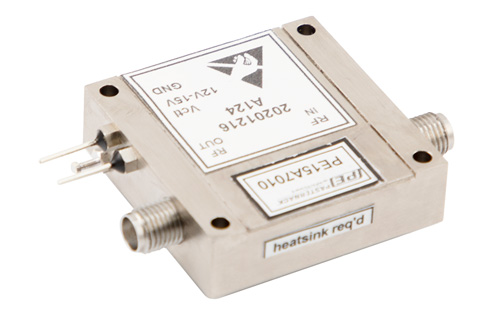

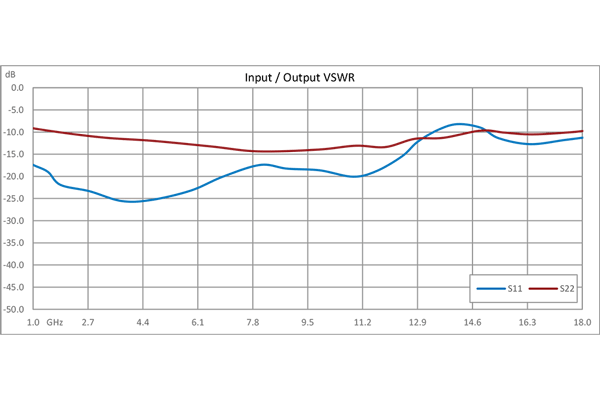

40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA   PE15A7010

1 to 26.5

43

20

5.5

11

0 to 5

15/350

SMA Female
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 26.5 GHz, 20 dB Gain Control, 6.5 dB NF, SMA

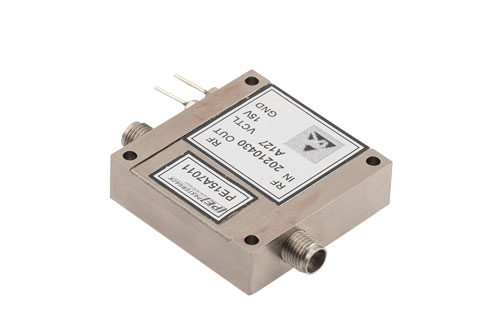

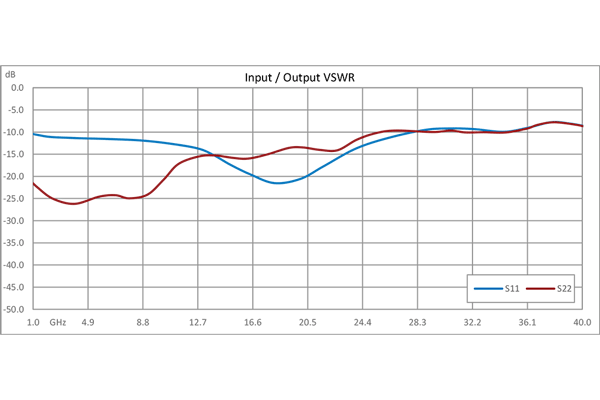

40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm   PE15A7011

1 to 40

45

20

5

10

0 to 5

15/450

2.92mm
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 10 dBm P1dB, 1 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm

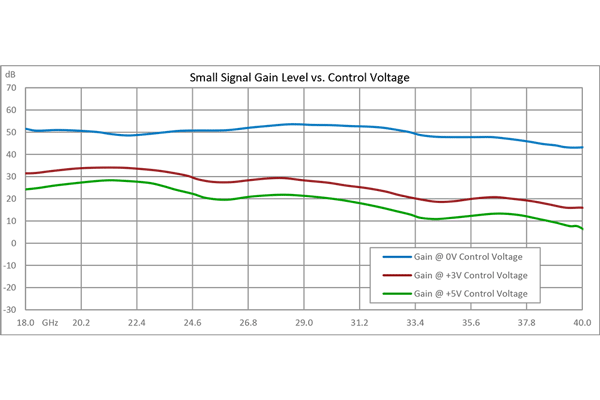

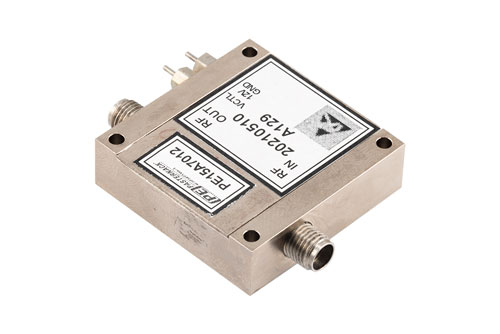

40 dB Variable Gain Amplifier, 11 dBm P1dB, 18 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm   PE15A7012

18 to 40

48

20

5.5

12.5

0 to 5

15/350

2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 18 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 18 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 18 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm
  • descr40 dB Variable Gain Amplifier, 11 dBm P1dB, 18 GHz to 40 GHz, 20 dB Gain Control, 5 dB NF, 2.92mm


Variable Gain Amplifiers from Pasternack

This new series of variable gain amplifiers from Pasternack are available in compact coaxial packages and cover broadband frequencies ranging from 500 MHz to 40 GHz.  Our Variable Gain Amplifiers use are designed for 50 Ohms and use GaAs FET semiconductor technology.  The Variable Gain Amplifier typical performance includes 45 dB small signal gain, 20 dB variable gain control, and output P1dB ranges from 10 to 15 dBm depending on the model.

Variable Gain Amplifiers are available in rugged Mil-Grade aluminum packages that support female SMA or 2.92mm connectors, and designed to meet a series of environmental conditions.. Variable Gain Amplifiers are part of over 40,000 RF, microwave, and millimeter wave components available from Pasternack.  Our Variable Gain Amplifiers ship worldwide the same day that it is bought as with our other available RF parts.
