Embedded GPS Antennas

SPP is a plenum rated line of coax manufactured by Times Microwave. Pasternack manufactures standard and custom configurations using
3 popular sizes.

  • 3 popular sizes 1/4”, 3/8” and 1/2” diameters
  • 70+ connector options
  • Highly durable CMP (plenum) rated FEP jacket material
  • Max operating frequency of 5.8 GHz
  • Low loss 76% VoP PTFE dielectric
  • PIM levels <-160 dBc
  • Helically corrugated copper outer conductor

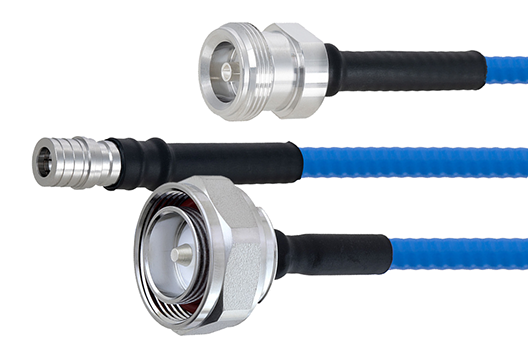

SPP Plenum Rated Coax Cable Assemblies

SPP Plenum Rated Coax Cable Assemblies

Pasternack’s SPP Plenum Rated Coax Cable Assemblies are flexible, low PIM, Plenum Rated jumper cables available in three popular diameters with a variety of connector options. The SPP Plenum rated coaxial cables are highly durable 50-ohm cables constructed with a solid center conductor - Bare Copper (SPP-250) or Bare Copper Clad Aluminum (SPP-375 and SPP-500), PTFE dielectric, a corrugated copper outer conductor and FEP jacket.

These are rated to maximum frequency of 5.8 GHz and an operating temperature of 200 degrees C and are suitable for both indoor and outdoor use. These low PIM cables are offered in standard and custom lengths with several connector combinations and are available for same day shipping!

For a complete list of Pasternack's products please click here
