• Broad RF Frequency Coverage from DC to 2000 MHz
  • Attenuation Ranges from 0 to 127 dB on these programmable attenuators
  • Precise Attenuation Steps ranging from 0.25 dB to 64 dB
  • Low Insertion Loss ranges from 0.8 dB to 3.5 dB
  • 50 Ohm and 75 Ohm Relay Controlled Programmable Attenuator designs
  • Operational Temperature range -20°C to +85°C
  • Rugged Coaxial Packages with RoHS Compliant Assemblies

Programmable attenuators that are relay controlled are in stock and ship same-day

▼ Click on the links below for more details

USA & Canada +1 (866) 727-8376  International  +1 (949) 261-1920

Relay Controlled Programmable Attenuators from Pasternack

USA & Canada (866) 727-8376  International +1 (949) 261-1920


Part No.

& Additional

Views

Frequency
Band
(GHz)

Insertion
Loss
(dB)

Step
Size
(dB)

Atteunation
Range
(dB)

Attenuation
Steps
(dB)

Input/Output
Impedance
(Ohms)

Input CW
Power
(Watts)

DC Bias
(Current per Relay)

RF
Connectors

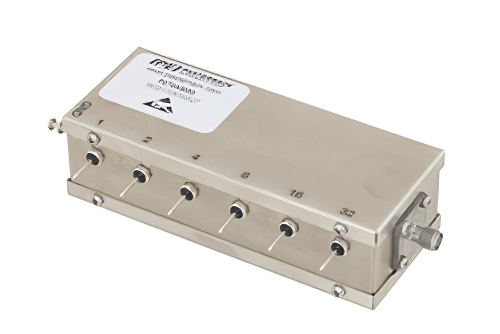

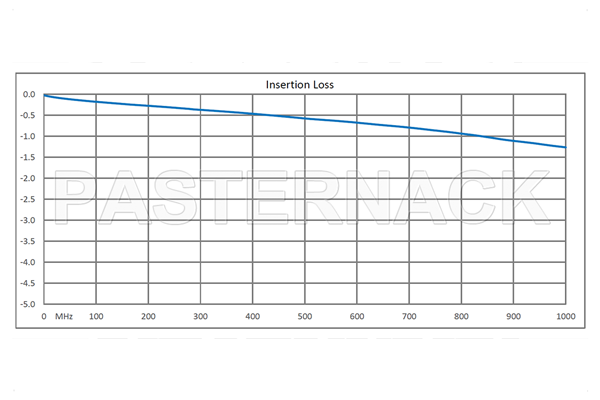

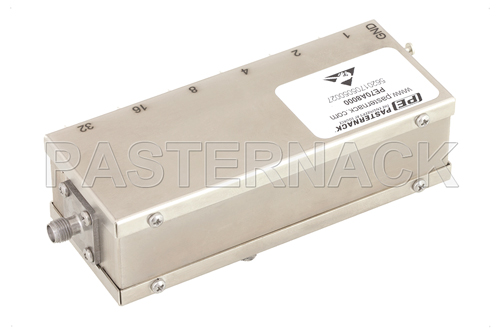

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female   PE70A8000

DC to 1.0

0.8 to 1.5

1

0 to 63

1, 2, 4, 8,
16, 32

50

0.5

12 Vdc
@ 15 mA

SMA
Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female

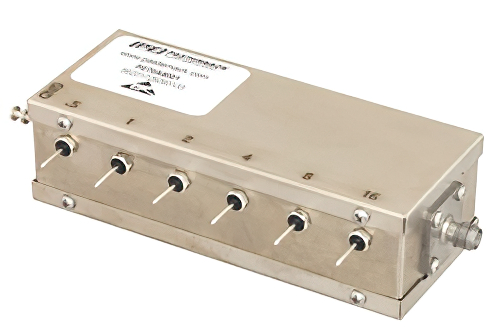

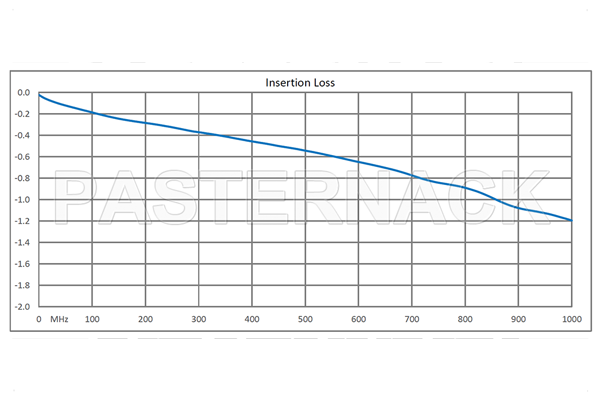

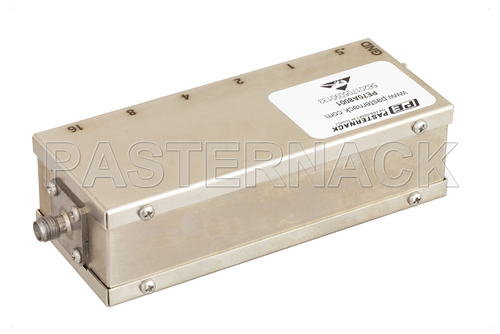

6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female   PE70A8001

DC to 1.0

0.8 to 1.5

0.5

0 to 31.5

0.5, 1, 2, 4,
8, 16

50

1.0

12 Vdc
@ 15 mA

SMA
Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female

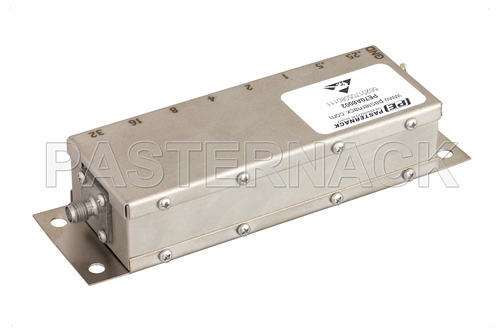

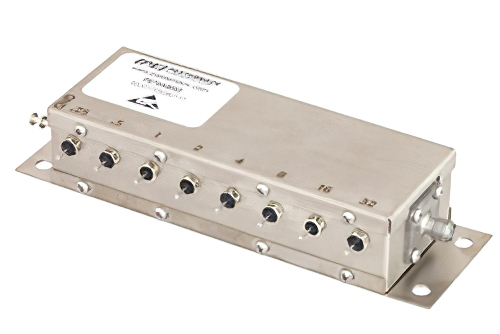

8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female   PE70A8002

DC to 2.0

3 to 3.5

0.25

0 to 63.75

0.25, 0.5, 1, 2,
4, 8, 16, 32

50

0.5

12 Vdc
@ 30 mA

SMA
Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

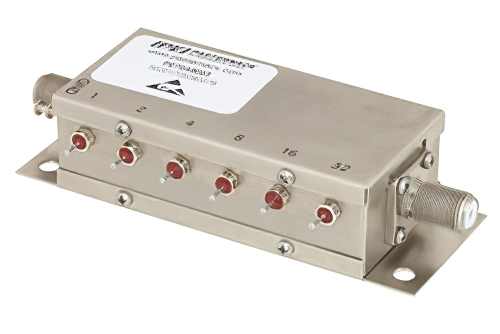

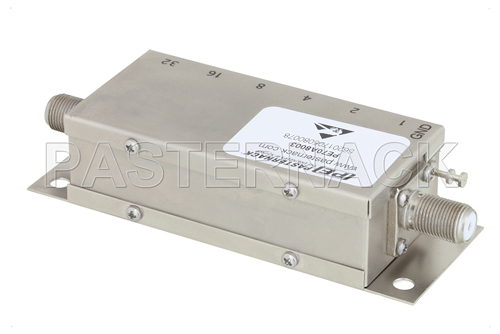

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female   PE70A8003

DC to 1.0

2.2

1

0 to 63

1, 2, 4, 8,
16, 32

75

1.0

12 Vdc
@ 30 mA

F Type
Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female
  • descr6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

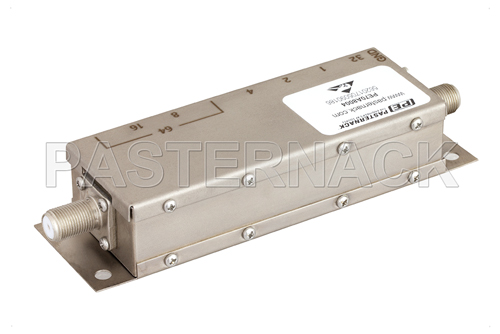

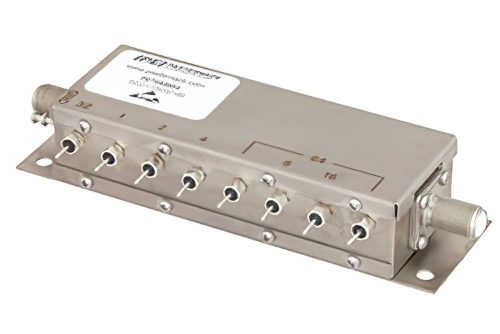

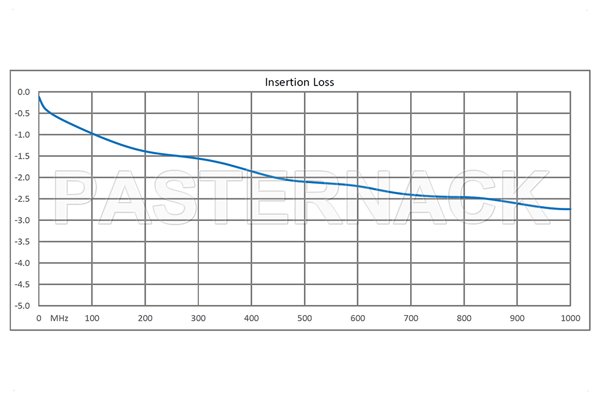

8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female   PE70A8004

DC to 1.0

2.5

1

0 to 127

1, 2, 4, 8,
16, 32, 64

75

1.0

12 Vdc
@ 30 mA

F Type
Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

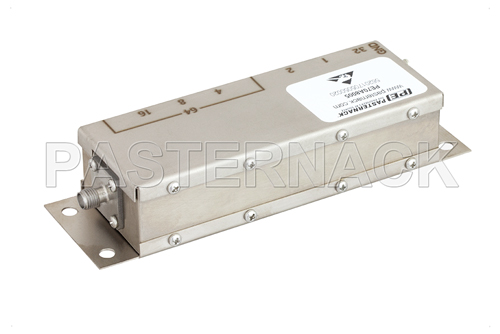

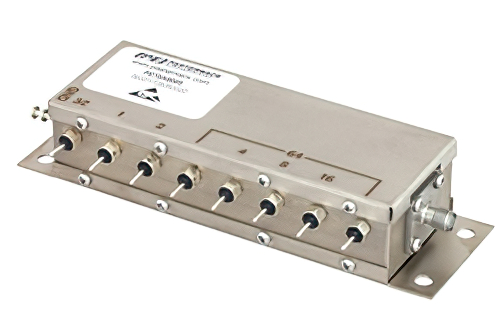

8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female   PE70A8005

DC to 1.5

2.1 to 3.2

1

0 to 127

1, 2, 4, 8,
16, 32, 64

50

1.0

12 Vdc
@ 30 mA

SMA
Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female
  • descr8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female


Relay Controlled Programmable Attenuator Series

Pasternack’s relay controlled programmable attenuator series cover broad frequency bands from DC to 2000 MHz with attenuation levels ranging from 0 to 127 dB. Depending on the model, these programmable attenuator designs have 6 to 8 relay bits with attenuation steps ranging from 0.25 dB to 64 dB for precise tuning capability.

Typical attenuator performance includes low insertion loss ranging from 0.8 to 3.5 dB, attenuation accuracy of +/- 0.5 dB and input power up to 1-watt CW. For added convenience, relay control programmable attenuator models are offered in 50 and 75 Ohm configurations. These Pasternack attenuators with relay control feature bidirectional performance capability.

These attenuator components are RoHS compliant and available in rugged nickel-plated brass packages with either female SMA or F-type connectors. Each relay bit has a designated RFI pin with a DC bias of +12 Vdc and 15 to 30 mA depending on the model. All programmable attenuator models are export-rated as EAR99 and have an operational temperature range of -20°C to +85°C.
