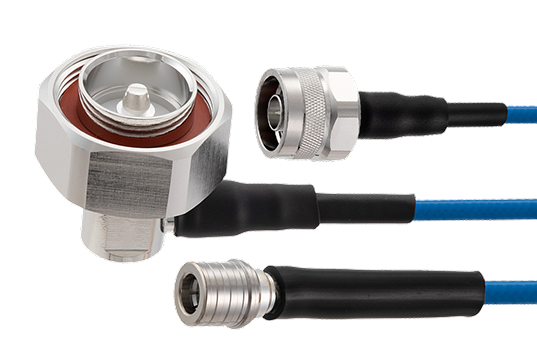

Flexible Low PIM Plenum Rated Coax Assemblies
TFT™ is a flexible plenum rated line of coax manufactured by Times Microwave. Pasternack manufactures standard and custom configurations using the TFT-402 and TFT-402-LF coax configurations.
- 0.16” Diameter
- 40+ connector options
- Blue FEP Jacket
- Max operating frequency of 5.8 GHz
- 76% VoP Taped PTFE dielectric
- PIM levels <-160 dBc
- Braided Copper outer conductor
All Available for Same-Day Shipping!
Flexible Low PIM Plenum Rated Coax Assemblies

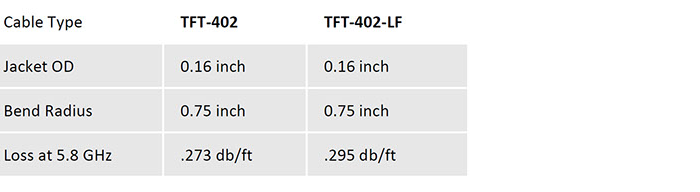

Pasternack’s Flexible TFT Plenum Rated Coax Cable Assemblies are flexible, low PIM, Plenum Rated jumper cables available in 0.16 inch diameter with a variety of connector options. The TFT-402 coaxial cables are highly flexible 50-ohm cables constructed with a Solid Copper center conductor - Bare Copper (TFT-402-LF) or Silver Plated Copper (TFT-402), Taped PTFE dielectric, and a Blue FEP Jacket. The TFT-402-LF has a Tin-plated braided shield and a Tin-plated copper outer braid, whereas the TFT-402 has a Silver-plated braided shield and a Silver-plated copper outer braid and improved Insertion Loss.
These are rated to maximum frequency of 5.8 GHz and an operating temperature of 150 degrees C and are suitable for plenum installations. These low PIM cables are offered in standard and custom lengths with several connector combinations and are available for same day shipping!
For a complete list of Pasternack's products please click here
