Embedded Cellular Antennas
  • Modules operating across most global bands with support for LTE, GSM, CDMA, PCS, 3G, 4G and 5G
  • Variety of shapes to accommodate your design
  • Support for LPWAN, ISM, IoT, LTE and NB-IoT
  • Double-sided adhesive backing for
    peel-and-stick mounting

▼ Click on a product below for more details

All Available for Same-Day Shipping!


Part No.
/Additional Views

Frequency
Band
(MHz)

Gain
(dBi)

VSWR

Size
(inch)

Size
(mm)

Design

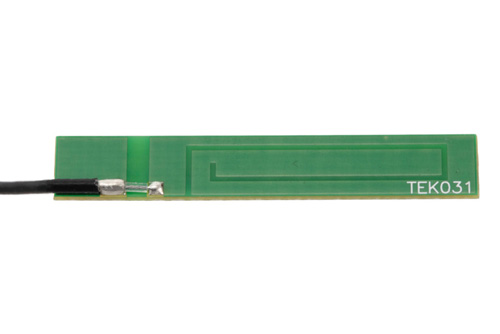

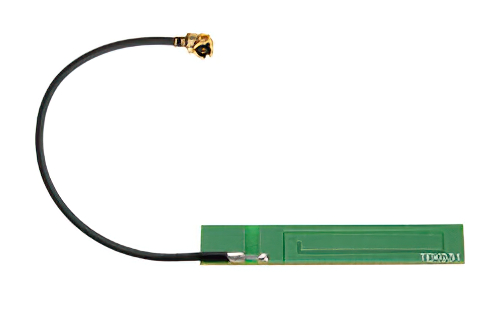

0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector   PE51194

824-2200

0

3.0

1.38x.24

35x6

End Fed
  • descr0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector
  • descr0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector

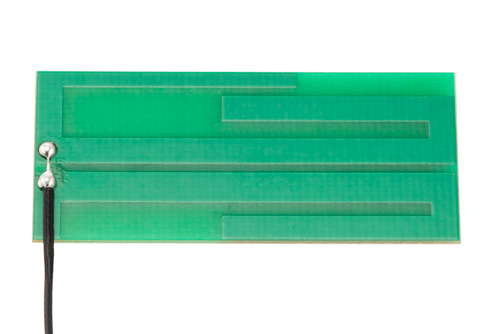

0 dBi Embedded PCB Antenna 824-960 MHz UMCX Connector   PE51195

824-960

0

3.0

1.77x0.79

45x20

End Fed
  • descr0 dBi Embedded PCB Antenna 824-960 MHz UMCX Connector
  • descr0 dBi Embedded PCB Antenna 824-960 MHz UMCX Connector

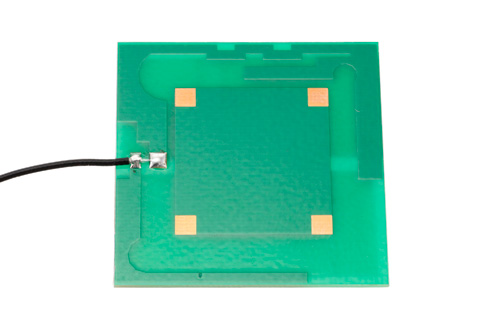

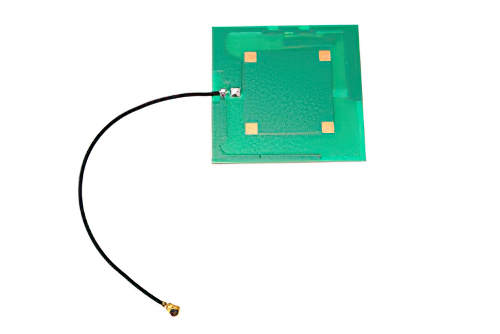

3 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector   PE51196

824-2200

3

3.0

1.65x1.65

42x42

Center Fed
  • descr3 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector
  • descr3 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector

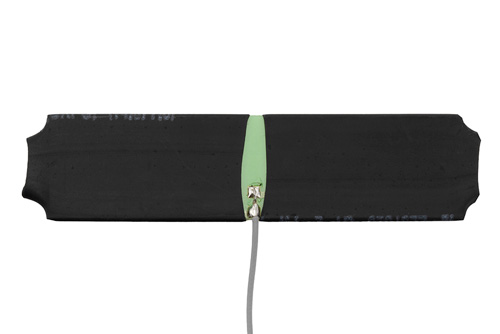

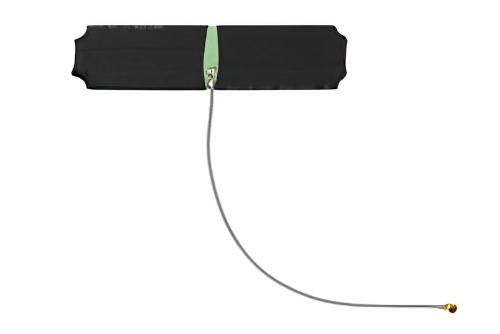

2 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector   PE51197

824-2200

2

2.0

3.19x0.83

81x21

Center Fed
  • descr2 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector
  • descr2 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector

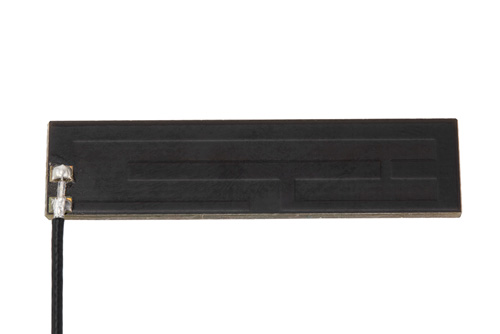

0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector   PE51198

824-2200

0

2.5

1.61x0.43

41x11

End Fed
  • descr0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector
  • descr0 dBi MultiBand Embedded PCB Antenna 824-2,200 MHz UMCX Connector


3 dBi MultiBand Embedded PCB Antenna 704-2,690 MHz UMCX Connector   PE51199

704-2690

3

2.0

3.87x0.59

98x15

End Fed
  • descr3 dBi MultiBand Embedded PCB Antenna 704-2,690 MHz UMCX Connector
  • descr3 dBi MultiBand Embedded PCB Antenna 704-2,690 MHz UMCX Connector


5 dBi MultiBand Embedded PCB Antenna 698-2,700 MHz UMCX Connector   PE51200

698-2700

5

2.5

3.74x0.83

95x21

Flexible PCB
  • descr5 dBi MultiBand Embedded PCB Antenna 698-2,700 MHz UMCX Connector
  • descr5 dBi MultiBand Embedded PCB Antenna 698-2,700 MHz UMCX Connector

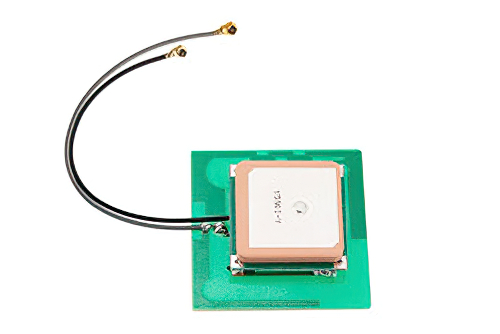

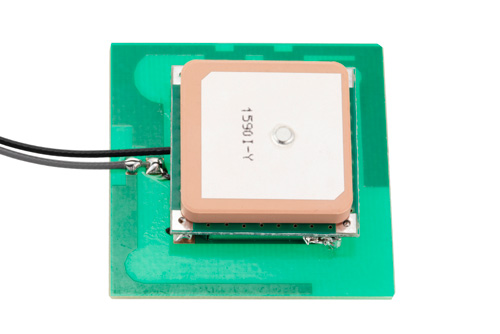

5 dBic MultiBand Embedded GPS Active Antenna 824-2,170 MHz UMCX Connector   PE51212

824-2170

5

3.0

2.11x1.61

54x41

End Fed
  • descr5 dBic MultiBand Embedded GPS Active Antenna 824-2,170 MHz UMCX Connector
  • descr5 dBic MultiBand Embedded GPS Active Antenna 824-2,170 MHz UMCX Connector

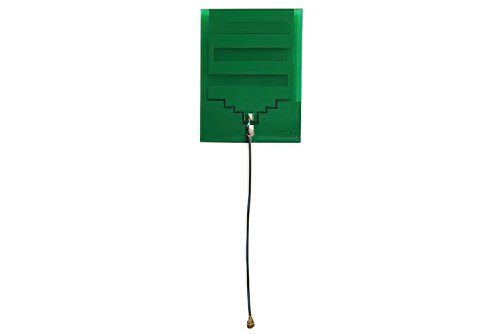

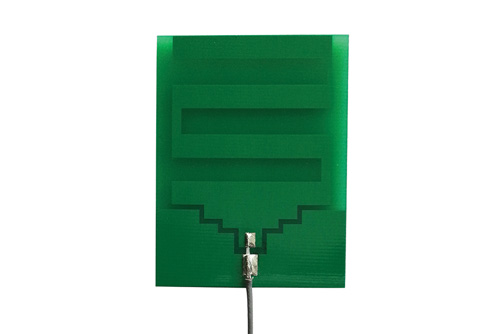

2 dBi Embedded PCB Antenna 860-960 MHz UMCX Connector   PE51216

860-960

2

2.5

1.65x1.65

42x42

Center Fed
  • descr2 dBi Embedded PCB Antenna 860-960 MHz UMCX Connector
  • descr2 dBi Embedded PCB Antenna 860-960 MHz UMCX Connector


Embedded PCB Cellular Antennas from Pasternack

Embedded cellular PCB antennas from Pasternack enable wireless connectivity devices to be built without an external antenna. These embedded cellular antennas are small enough to fit into terminals with limited space using the double-sided adhesive tape on the back. Depending on the model, these integrated PCB cellular antennas offer support for frequencies ranging from 698 MHz to 2.7 GHz, to support a wide variety of end applications, including remote kiosks, credit card machines, POS systems, smart healthcare devices, IoT innovations, security and alarm panels, smart sensoring/monitoring, wireless CCTV systems, Zigbee, and Bluetooth.

Pasternack’s PCB embedded cellular antennas are in-stock and available for same-day shipping!
