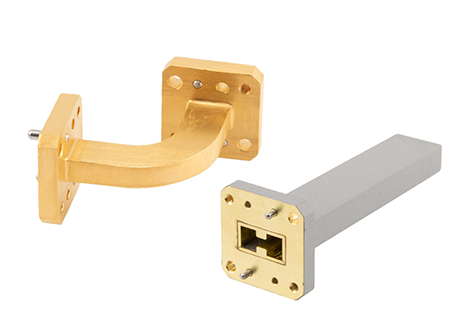

Double Ridge Waveguide
Transmission Line Parts
- Straight sections, H-plane and E-plane bends, 90-degree twists,
and terminations - Waveguide sizes: WRD-180, WRD-650 and WRD-750
- Ruggedized design made with brass
- UG-style square cover flanges
- Excellent VSWR performance as low as 1.15:1
All Available for Same-Day Shipping!
Part No.
& Additional
Views
Waveguide
Size
Product
Type
Min Freq
(GHz)
Max Freq
(GHz)
VSWR
Max Input
Power (W)
Insertion
Loss (dB)
 |

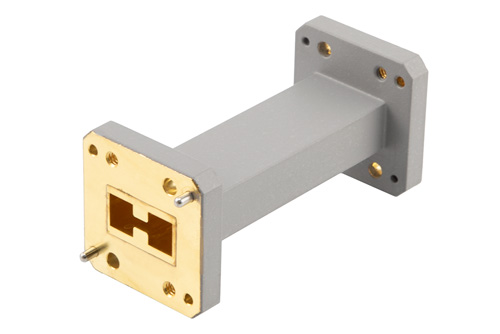

PEWRD650S001-3 | WRD-650 |
3" Straight Section |
6.5 |
18 |
1.15:1 |
- - - |
0.3 |
||
|
|
||||||||||
 |

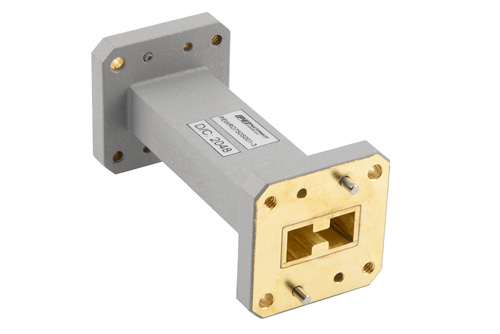

PEWRD750S001-3 | WRD-750 |
3" Straight Section |
7.5 |
18 |
1.15:1 |
- - - |
0.3 |
||
|
|
||||||||||
 |

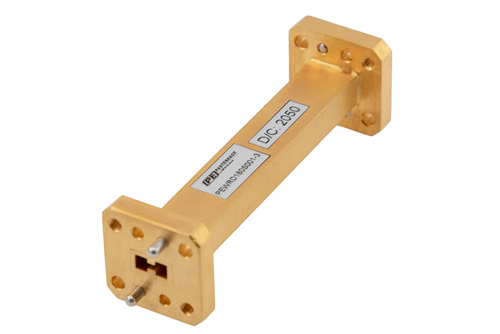

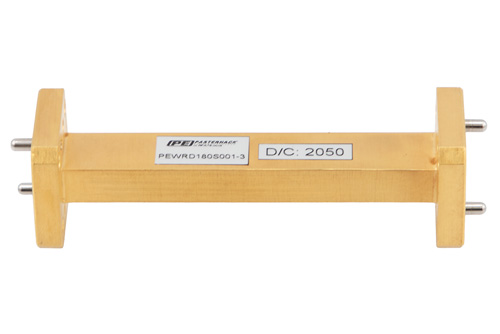

PEWRD180S001-3 | WRD-180 |
3" Straight Section |
18 |
40 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

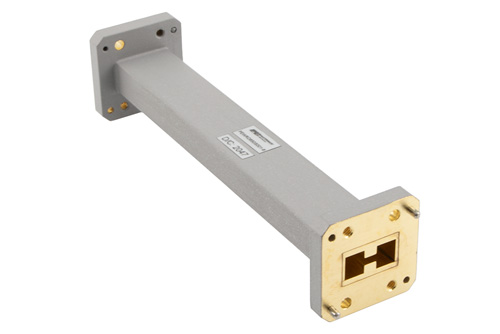

PEWRD650S001-6 | WRD-650 |
6" Straight Section |
6.5 |
18 |
1.15:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

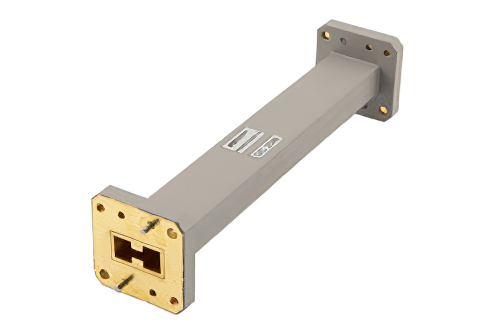

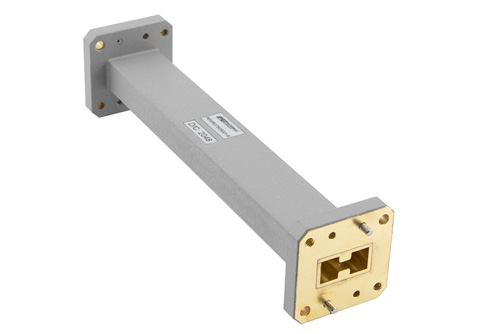

PEWRD750S001-6 | WRD-750 |
6" Straight Section |
7.5 |
18 |
1.15:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

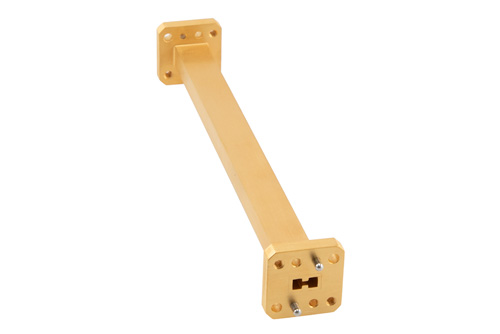

PEWRD180S001-6 | WRD-180 |
6" Straight Section |
18 |
40 |
1.25:1 |
- - - |
0.5 |
||
|
|
||||||||||
 |
PEWRD650B001 | WRD-650 |
E-Plane Bend |
6.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

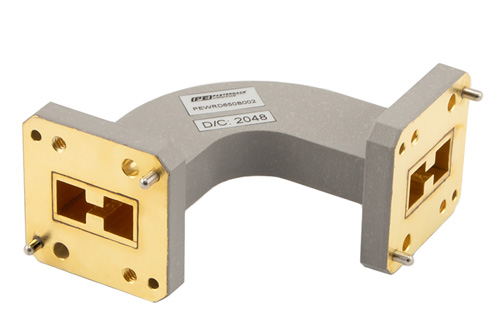

PEWRD650B002 | WRD-650 |
H-Plane Bend |
6.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

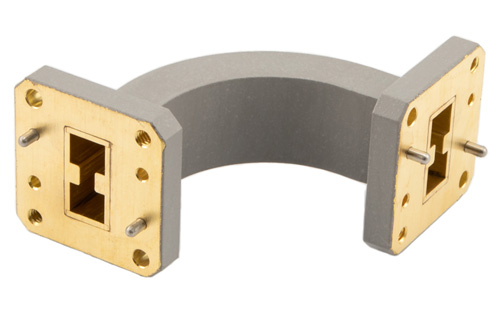

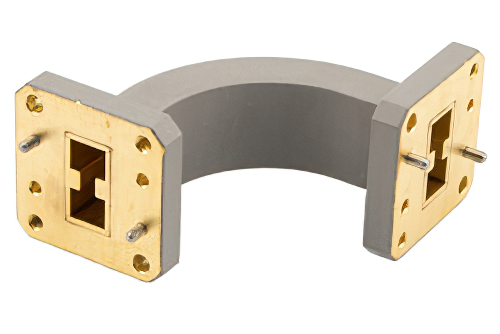

PEWRD750B001 | WRD-750 |
E-Plane Bend |
7.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

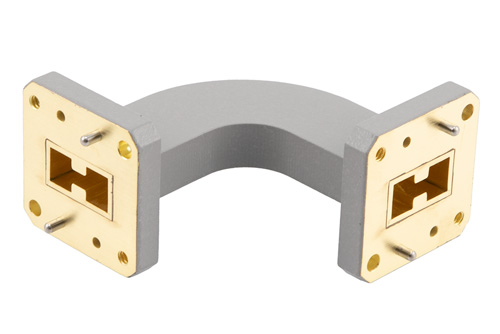

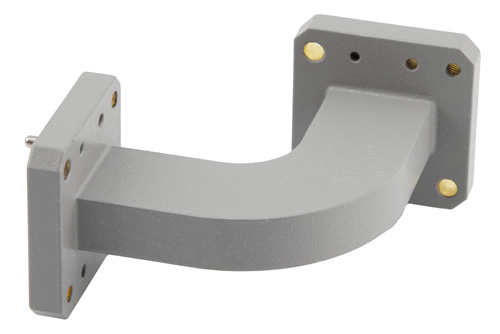

PEWRD750B002 | WRD-750 |
H-Plane Bend |
7.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

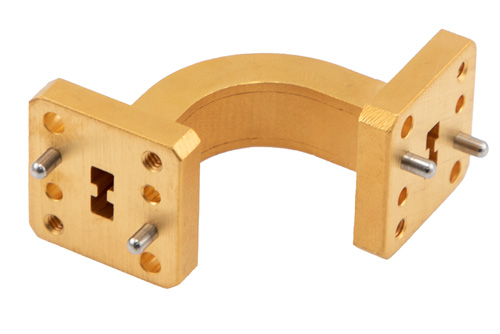

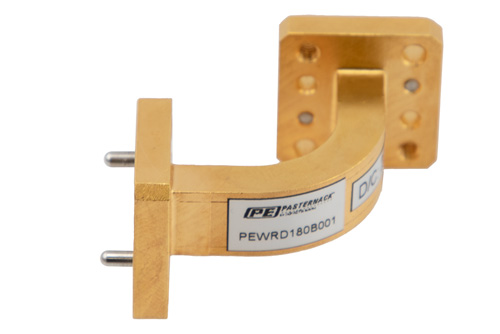

PEWRD180B001 | WRD-180 |
E-Plane Bend |
18 |
40 |
1.3:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

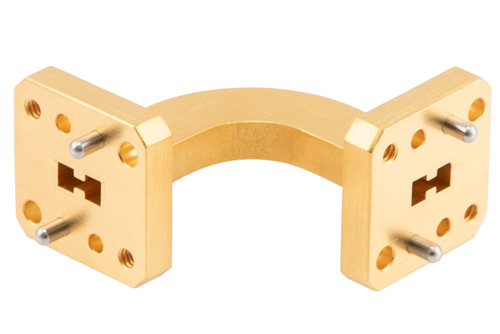

PEWRD180B002 | WRD-180 |
H-Plane Bend |
18 |
40 |
1.3:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |
PEWRD650TW1001 | WRD-650 |
90-degree Twist |
6.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

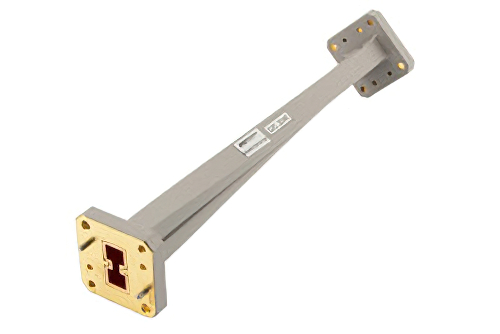

PEWRD750TW1001 | WRD-750 |
90-degree Twist |
7.5 |
18 |
1.25:1 |
- - - |
0.4 |
||
|
|
||||||||||
 |

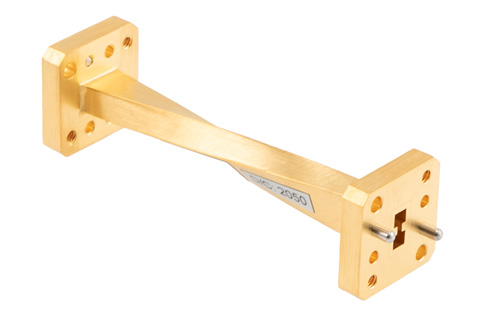

PEWRD180TW1001 | WRD-180 |
90-degree Twist |
18 |
40 |
1.35:1 |
- - - |
0.5 |
||
|
|
||||||||||
 |
PEWRD650TR1000 | WRD-650 |
Termination |
6.5 |
18 |
1.15:1 |
1 |
- - - |
||
|
|
||||||||||
 |

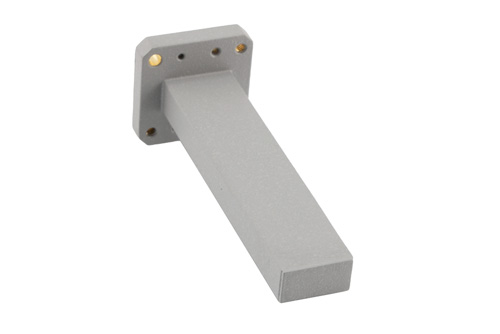

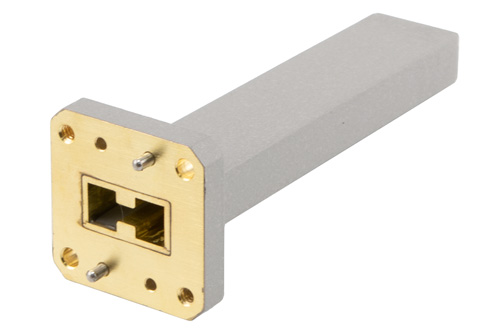

PEWRD750TR1000 | WRD-750 |
Termination |
7.5 |
18 |
1.15:1 |
1 |
- - - |
||
|
|
||||||||||
 |

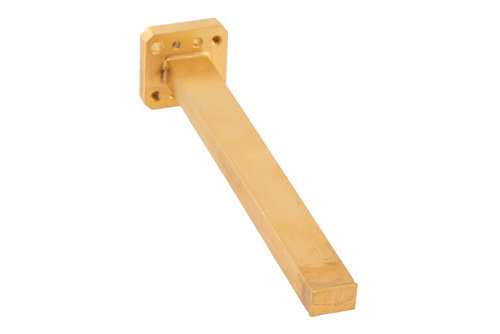

PEWRD180TR1000 | WRD-180 |
Termination |
18 |
40 |
1.15:1 |
0.5 |
- - - |
||
|
|
||||||||||
Double Ridge Waveguide Transmission Line Parts from Pasternack
Pasternack’s double ridge waveguide transmission line components feature straight sections, H-plane and E-plane bends, 90-degree twists, and terminations supporting both 18 GHz and 40 GHz operation. Waveguide sizes include WRD-180, WRD-650 and WRD-750, with UG-style square cover flanges. Waveguide straights are available in 3"and 6" lengths. Waveguide bends are available in 90° E-plane and 90° H-plane configurations. Waveguide twists are available in 90 configurations. In addition, these double ridge waveguide transmission line components offer typical VSWR performance as low as 1.15:1 typical.
Pasternack’s double ridge waveguide transmission line components are in-stock and available for immediate shipment, with no minimum order required.
