7 mm DC to 18 GHz VNA
Calibration Kits
- 7 mm connector, DC to 18 GHz frequency range
- Cal kit definition files for Keysight, Rohde & Schwarz, and Anritsu VNAs
- Works with all major VNAs
- Protective wooden case for safe storage of components
- Torque wrench included
- Ideal for calibration of VNAs in R&D, aerospace and defense, production test environments
 |

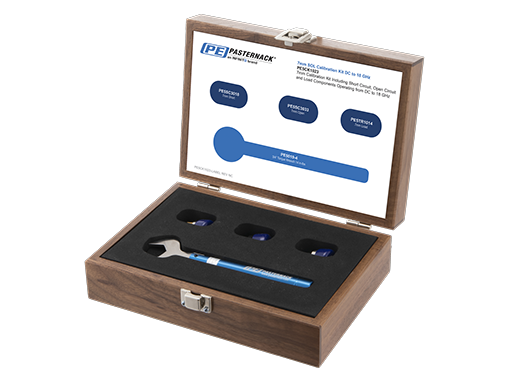

| 7mm SOL VNA Calibration Kit Operating from DC to 18 GHz, Including Short Circuit, Open Circuit, and Load |
7 mm DC to 18 GHz VNA Calibration Kits from Pasternack
Pasternack’s 7 mm, DC to 18 GHz Vector Network Analyzer (VNA) calibration kit is used to calibrate VNA and associated test setups, to allow Vector Error Correction to compensate for systematic errors inherent in the measurement of the Device Under Test (DUT) allowing for accurate characterization of its performance.
SOL – Short Open Load Kit contains:
- 7 mm Termination, 1.06 Max. VSWR, DC to 18 GHz
- 7 mm Short, ±0.3º Deviation from Nominal, DC to 18 GHz
- 7 mm Short, ±0.3º Deviation from Nominal, DC to 18 GHz
- Torque Wrench, 14 in-lb Torque Setting
