Pasternack Introduces New Line of

SMP Shrouds

Product Features
  • Shrouds operate up to 40 GHz when mated with the appropriate glass beads
  • Standard housing material stainless steel per ASTM A582
  • Smooth Bore, Limited Detent and Full Detent SMP versions available
  • Flange Mount, Press-In, Thread-In, and Surface Mount PCB versions
  • Flange Mount SMP hole spacing options of .282, .328, .354, and .481

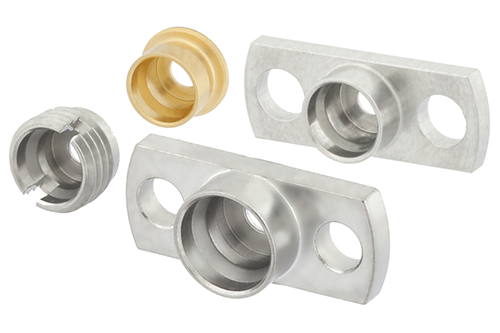

SMP Flange Mount Shrouds

3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44907 SMP Male Full Detent Shroud 2 Hole Flange Mount 0.282 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44916 SMP Male Full Detent Shroud 2 Hole Flange Mount 0.481 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44935 SMP Male Full Detent Shroud 2 Hole Flange Mount 0.354 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44948 SMP Male Smooth Bore Shroud 2 Hole Flange Mount 0.282 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44949 SMP Male Limited Detent Shroud 2 Hole Flange Mount 0.481 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44950 SMP Male Limited Detent Shroud 2 Hole Flange Mount 0.328 Inch Hole Spacing
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44951 SMP Male Limited Detent Shroud 2 Hole Flange Mount 0.282 Inch Hole Spacing

SMP Press-In, Thread-In, and Surface Mount PCB

3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44932 SMP Male Limited Detent Shroud Solder Mount Surface Mount
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44953 SMP Male Limited Detent Shroud Thread-In Mount
3 dB Fixed Attenuator, 1.85mm Male To 1.85mm Female Passivated Stainless Steel Body Rated To 1 Watt Up To 65 GHz
PE44954 SMP Male Smooth Bore Shroud Press-In Mount

SMP Coaxial Connectors

  • Choose from 8 GHz and 40 GHz versions
  • Contact and body materials gold plated beryllium copper (BeCu)
  • 047 and 086 semi-rigid coax as well as flexible RG178, RG196 versions available
  • Male Bulkhead cable connectors for .086 semi-rigid

SMP PCB Connectors

  • Choose from 8 GHz and 40 GHz versions
  • Contact and body materials gold plated beryllium copper (BeCu)
  • Smooth Bore, Limited Detent and Full Detent versions available
  • Surface Mount, Thru Hole, End Launch, and Edge Launch versions
  • Thru Hole PCB connectors are available in 3 leg and 4 leg versions

Hermetically Sealed SMP Terminals

  • Choose from 8 GHz and 40 GHz versions
  • Housing material Kovar per ASTMF15 with Corning 7070 glass
  • Smooth Bore, Limited Detent and Full Detent versions
  • 0.15 diameter contacts vary from .03 to .130 inches in length
  • Pre Tinned contact options available

SMP Terminals

  • Operate up to 40 GHz
  • Standard housing material stainless steel per ASTM A582
  • Smooth Bore, Limited Detent, Full Detent, and Catcher Mitt designs
  • Flange Mount and Thread-In options available
  • .015 inch diameter Pins are .065 inches long; Pre-Tin options available

SMP Shrouds

  • Operate up to 40 GHz when mated with the appropriate glass beads
  • Standard housing material stainless steel per ASTM A582
  • Smooth Bore, Limited Detent and Full Detent versions available
  • Flange Mount, Press-In, Thread-In, and Surface Mount PCB versions
  • Flange Mount hole spacing options of .282, .328, .354, and .481

Mini-SMP Connectors

  • Operate up to 65 GHz
  • Available in Coax Cable, PCB Mount, and Terminal configurations
  • Female Straight and Right Angle connectors for 047 and 086 semi-rigid coax options available
