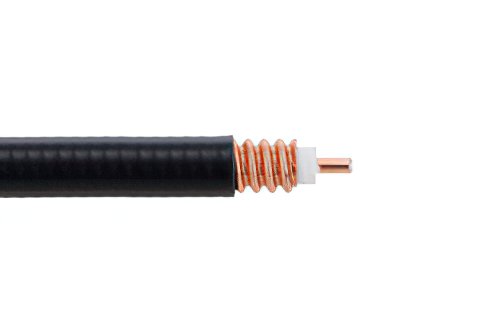

Low Loss SPF-375 Rated Corrugated Coax Cable with Black FRPE Jacket Superflexible Fire Rated
Product ID:
SPF-375
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | SPF-375 |
| Flex Type | Corrugated |
| Impedance | 50 Ohm |
| Dielectric Type | Foam PE |
| Velocity of Propagation | 83 % |
| Jacket Diameter | 0.435 in |
| Jacket Material | FRPE |
| No. of Shields | 1 |
| Passive Intermodulation | -158 dBc |
| Frequency, Max | 6 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 1.75 in |
| Coax Type | Coax |
Description
Low Loss SPF-375 Rated Corrugated Coax Cable with Black FRPE Jacket Superflexible Fire Rated
SPF-375 part number from Pasternack is a SPF-375 coax cable that is corrugated. Pasternack SPF-375 corrugated coax cable is 50 Ohm and has a Foam PE dielectric. Our SPF-375 coax is constructed with a 0.435 jacket made of FRPE. SPF-375 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 6 GHz.
Pasternack SPF-375 coax cables are part of over 40,000 RF, microwave and millimeter wave components. SPF-375 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using SPF-375 or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
